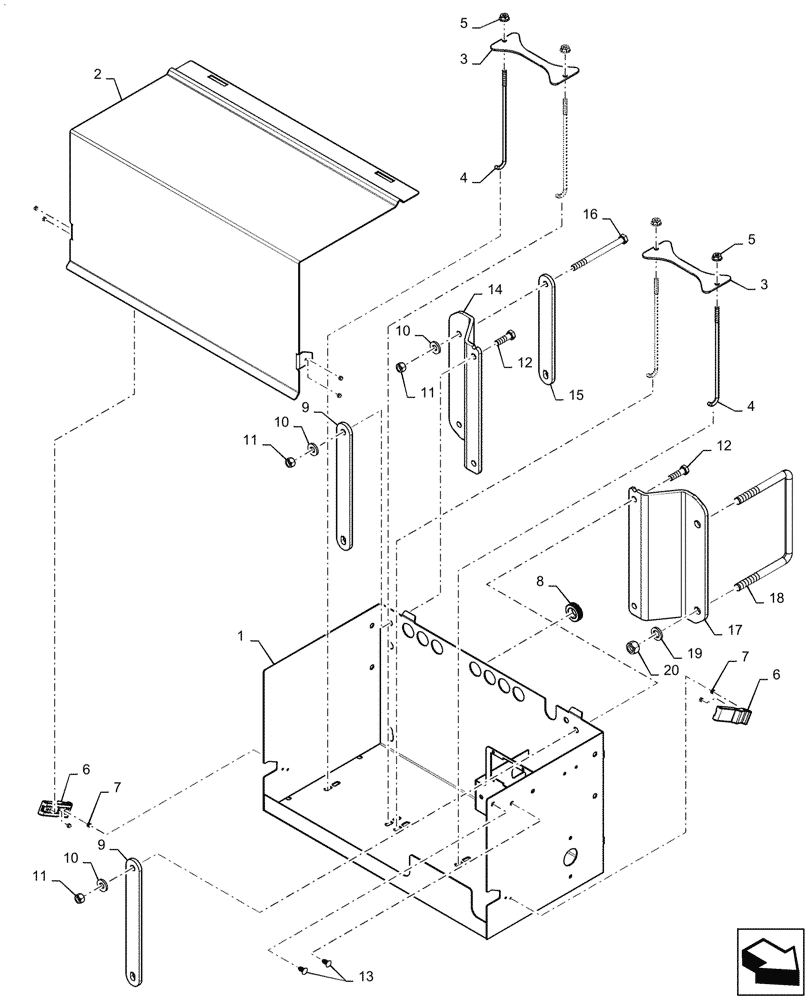

Запчасти Case IH PATRIOT 2250 (55.302.AH[01]) - BATTERY - BOX (55) - ELECTRICAL SYSTEMS

1

47610809

BATTERY BOX

Complete

1шт.

2

47609347

COVER

Battery Box

1шт.

3

BN320331

BRACKET

Mount, Battery

2шт.

4

87691876

ROD

Battery Hold Down

4шт.

5

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

6

BN307683

LATCH

Soft, With Concealed Keeper

2шт.

7

87017053

RIVET,Pop, .146" x .425"

8шт.

8

BN2290753

GROMMET

7/8" Hole

8шт.

9

84344603

MOUNT

Spacer Plate

2шт.

10

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

DOR

6шт.

11

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

6шт.

12

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

DOR

4шт.

13

87529297

CLIP

Christmas Tree

2шт.

14

47646116

MOUNTING PLATE

Battery Box, Rear

1шт.

15

47646113

MOUNTING PLATE

Plate

1шт.

16

86980435

BOLT

M12 -1.75 x 150, Hex Head, DOR

2шт.

17

47646127

MOUNTING PLATE

Battery Box, Front

1шт.

18

47630475

U-BOLT

Square

1шт.

19

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

DOR

2шт.

20

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.
