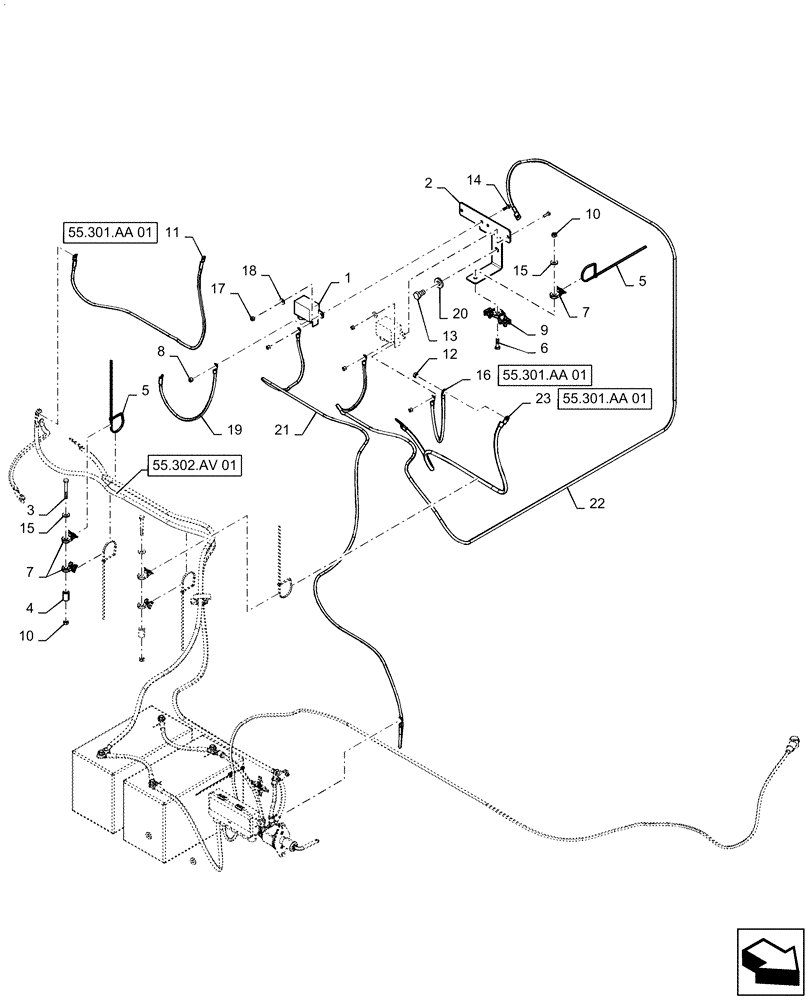

Запчасти Case IH PATRIOT 2250 (55.201.AG[01]) - RELAY, COLD START AND INTERMEDIATE (55) - ELECTRICAL SYSTEMS

1

86619908

RELAY,12V, 150A

Cold, Intermediate, Start

2шт.

2

47884934

MOUNT

Relay

1шт.

3

86980386

BOLT,Hex, M8 - 1.25 x 60mm, Cl 8.8, DOR

3шт.

4

13606111

SPACER,9mm ID x 18mm OD x 25mm L

3шт.

5

BN570007

STRAP

14"

10шт.

6

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

DOR

1шт.

7

84407295

BASE

Single Tie, M8 Stud

7шт.

8

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

5шт.

9

84360209

BASE

Double Tie

1шт.

10

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

5шт.

11

47884194

NEG BATTERY CABLE

Starter to Alternator

1шт.

12

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

13

86980418

BOLT,Hex, M12 - 1.75 x 20mm, Cl 8.8, DOR

2шт.

14

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

DOR

4шт.

15

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

DOR

5шт.

16

86611286

ELECTRICAL WIRE

Positive, Relay to Alternator

1шт.

17

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

18

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

DOR

4шт.

19

47711477

CABLE

Negative, Relay to Starter

1шт.

20

86981676

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

DOR

2шт.

21

47713428

CABLE

Positive, Relay to Fuse Box

1шт.

22

47655335

CABLE

Positive, Relay to Grid Heater

1шт.

23

47601697

CABLE

Positive, Starter to Alternator

1шт.
