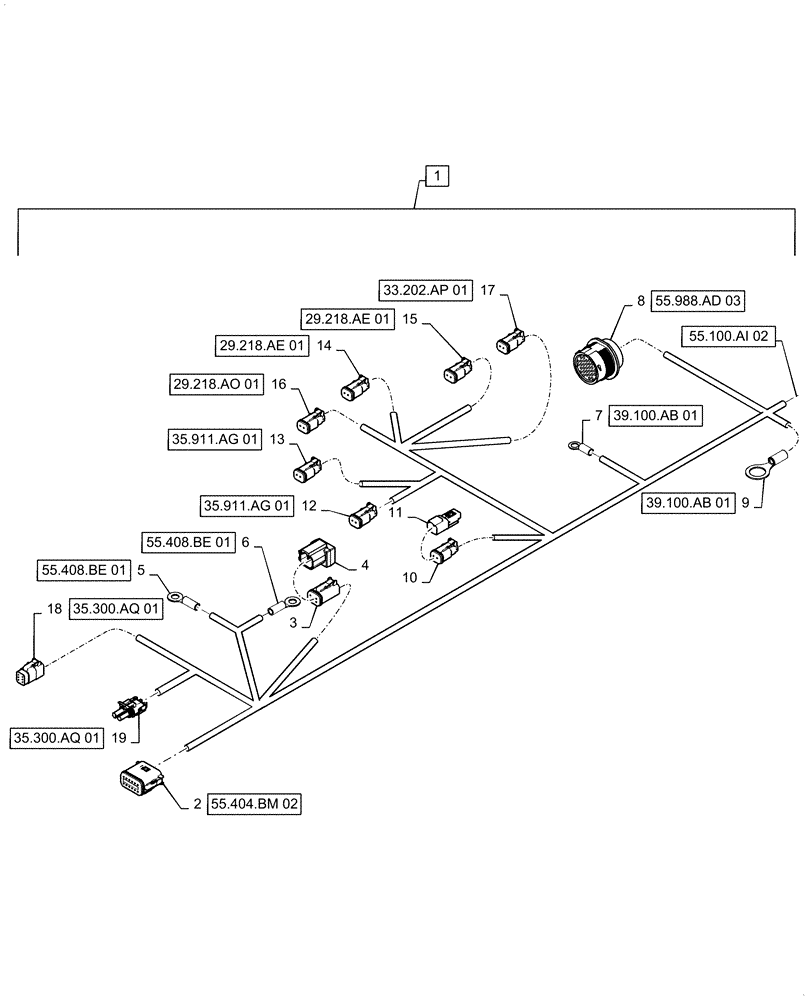

Запчасти Case IH PATRIOT 2250 (55.100.AI[03]) - REAR MAIN FRAME WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

47655301

WIRE HARNESS

Main Frame Complete, Incl 2 - 19

1шт.

2

87696075

ELEC CONNECTOR

Female, 12 Cavity, Tail Light Interface, X-606F

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Tail Light Interface, X-606F

11шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavity, Tail Light Interface, X-606F

1шт.

2

87695651

LOCKING TAB,Wedge Lock

Lock, Green, Tail Light Interface, X-606F

1шт.

3

87694153

CONTACT HOUSING,Female, 4 Cavities

Diode Pack, X-604F

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Diode Pack, X-604F

3шт.

3

84068583

PLUG,12 - 16 Ga, White

Cavity, Diode Pack, X-604F

1шт.

3

87694146

ELEC CONNECTOR,Locking, Green

Wedge, Diode Pack, X-604F

1шт.

4

87270520

DIODE

Diode Receptical, J604

1шт.

5

84159851

TERMINAL

M4 Eyelet, Backup Alarm +, X-608F

1шт.

6

84159851

TERMINAL

M4 Eyelet, Backup Alarm -, X-609F

1шт.

7

84398828

TERMINAL,3/8" Ring, SAE 8

M10 Eyelet, Clean Ground, GD3

1шт.

8

84177901

ELEC CONNECTOR

Male, 31 Cavity, Engine Interface, X-801M4

1шт.

8

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, Engine Interface, X-801M4

15шт.

8

84807680

PLUG

Cavity, Engine Interface, X-801M4

14шт.

9

84244490

RING

Terminal, M12, Chassis Ground, G1-MF

1шт.

10

87695582

ELEC CONNECTOR,Female, 2 Pole

Charge PSI, X-638F

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Charge PSI, X-638F

2шт.

10

87695649

ELEC CONNECTOR,Locking, Green

Wedge, Charge PSI, X-638F

1шт.

11

87695584

CONTACT HOUSING,Male, 2 Cavities

Shorting Jumper for Charge PSI, X-638M

1шт.

11

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, Shorting Jumper for Charge PSI, X-638M

2шт.

11

87577731

CONTACT HOUSING,2 Pole

Wedge Lock, Shorting Jumper for Charge PSI, X-638M

1шт.

12

87695582

ELEC CONNECTOR,Female, 2 Pole

Axle In, X-614F

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Axle In, X-614F

2шт.

12

87695649

ELEC CONNECTOR,Locking, Green

Wedge, Axle In, X-614F

1шт.

13

87695582

ELEC CONNECTOR,Female, 2 Pole

Axle Out, X-613F

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Axle Out, X-613F

2шт.

13

87695649

ELEC CONNECTOR,Locking, Green

Wedge, Axle Out, X-613F

1шт.

14

87695582

ELEC CONNECTOR,Female, 2 Pole

Rear, X-819F

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Rear, X-819F

2шт.

14

84074638

LOCKING TAB,Locking Wedge, Green

Rear, X-819F

1шт.

15

87695582

ELEC CONNECTOR,Female, 2 Pole

Front, X-718F

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Front, X-718F

2шт.

15

87695649

ELEC CONNECTOR,Locking, Green

Wedge, Front, X-718F

1шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

Traction Control, X-643F

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Traction Control, X-643F

2шт.

16

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock, Traction Control, X-643F

1шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

Park Brake, X-631F

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Park Brake, X-631F

2шт.

17

87695649

ELEC CONNECTOR,Locking, Green

Wedge, Park Brake, X-631F

1шт.

18

87700107

ELEC CONNECTOR

Female, 6 Cavity, Hydraulic Oil Level / Temp, X-628F

1шт.

18

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Hydraulic Oil Level / Temp, X-628F

5шт.

18

84807680

PLUG

Sealing, Red, Hydraulic Oil Level / Temp, X-628F

1шт.

18

87705582

ELEC CONNECTOR

Wedge Lock, Hydraulic Oil Level / Temp, X-628F

1шт.

19

87692855

CONTACT HOUSING,Male, 2 Cavities

Hydraulic Restriction, X-629F1

1шт.

19

87692856

CABLE TERMINAL

Female, Tin, Hydraulic Restriction, X-629F1

2шт.

19

87680701

SEAL

Cable, Green, Hydraulic Restriction, X-629F1

2шт.
