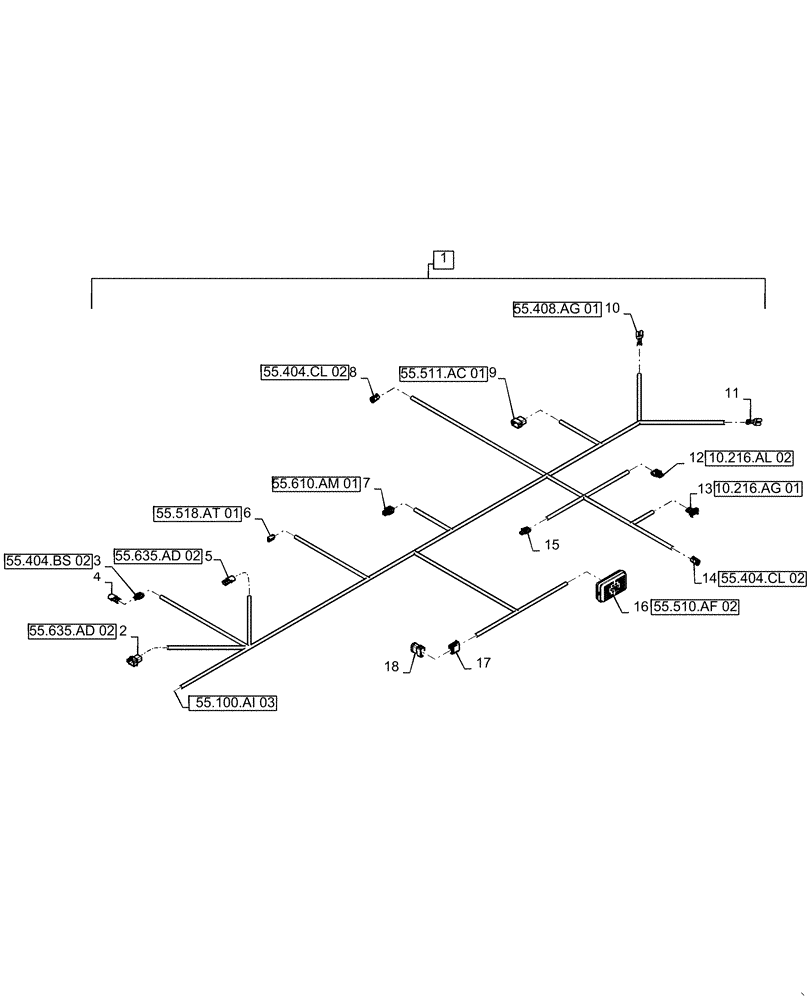

Запчасти Case IH PATRIOT 2250 (55.100.AI[02]) - FRONT MAIN FRAME WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

47655301

WIRE HARNESS

Assy, Main Frame, Incl 2 - 18

1шт.

2

225320C1

ELEC CONNECTOR

Male, 8 Cavity, Remote Interface, X-800M

1шт.

2

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, Remote Interface, X-800M

5шт.

2

84068583

PLUG,12 - 16 Ga, White

Sealing, Remote Interface, X-800M

3шт.

2

225322C1

WEDGE

Lock, Remote Interface, X-800M

1шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

Rear Boom Work Lights, X-627F

1шт.

3

87692856

CABLE TERMINAL

Female, Tin, Rear Boom Work Lights, X-627F

2шт.

3

87680701

SEAL

Cable, Green, Rear Boom Work Lights, X-627F

2шт.

4

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Connector Cap For Boom Lights, CAP627

1шт.

5

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Park Brake, Remote Interface, X-630M

1шт.

5

87692882

ELEC. TERMINAL PIN

Male, Tin, Park Brake, Remote Interface, X-630M

2шт.

5

87680701

SEAL

Cable, Green, Park Brake, Remote Interface, X-630M

2шт.

6

87693325

ELEC CONNECTOR,Female, 2 Cavities

Washer Pump, X-625F

1шт.

6

87709400

ELEC. TERMINAL PIN

Female, Tin, Washer Pump, X-625F

1шт.

6

87697667

TERMINAL

Female, Brass, Washer Pump, X-625F

1шт.

7

87692862

ELEC CONNECTOR

4 Cavity, Radar, X-603F

1шт.

7

87692856

CABLE TERMINAL

Female, Tin, Radar, X-603F

4шт.

7

87680701

SEAL

Cable, Green, Radar, X-603F

4шт.

8

87695580

ELEC CONNECTOR,Female, 3 Pole

LH, Turn / Running Light, X-633F

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH, Turn / Running Light, X-633F

3шт.

8

87695646

WEDGE

Lock, LH, Turn / Running Light, X-633F

1шт.

9

87695724

ELEC CONNECTOR,Male, 12 Pole

Head Light Interface, X-640F

1шт.

9

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, Head Light Interface, X-640F

8шт.

9

84068583

PLUG,12 - 16 Ga, White

Sealing, Head Light Interface, X-640F

4шт.

9

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock, Head Light Interface, X-640F

1шт.

10

84177908

TERMINAL

Horn Power, X-615F

1шт.

11

84177908

TERMINAL

Horn Ground, X-615F

1шт.

12

87644909

WIRE CONNECTOR,Female, 3 Pins

3 Cavity, Fuel Level, X-610F

1шт.

12

87692856

CABLE TERMINAL

Female, Tin, Fuel Level, X-610F

2шт.

12

87680701

SEAL

Cable, Green, Fuel Level, X-610F

2шт.

13

8602416

CONNECTOR,ELECTRIC

Female, 3 Cavity, Water in Fuel, X-666F

1шт.

13

84607244

ELEC. TERMINAL PIN,Female, 0.5 - 1 mm2

Pre-Tin, Water in Fuel, X-666F

3шт.

13

87691478

SEAL

Wire, Water in Fuel, X-666F

3шт.

14

87695580

ELEC CONNECTOR,Female, 3 Pole

RH, Turn / Running Light, X-626F

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH, Turn / Running Light, X-626F

3шт.

14

87695646

WEDGE

Lock, RH, Turn / Running Light, X-626F

1шт.

15

87692855

CONTACT HOUSING,Male, 2 Cavities

AC Low Pressure, X-815F

1шт.

15

87692856

CABLE TERMINAL

Female, Tin, AC Low Pressure, X-815F

1шт.

15

87680701

SEAL

Cable, Green, AC Low Pressure, X-815F

1шт.

16

437552A1

ELEC CONNECTOR,Female, 102 Pin

Main Bulkhead, CM6F

1шт.

16

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Stamped, Main Bulkhead, CM6F

45шт.

16

84819143

TERMINAL CONNECTOR,Female, 4.5 - 8 mm2

Main Bulkhead, CM6F

2шт.

16

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Main Bulkhead, CM6F

2шт.

16

87695923

TERMINAL

Female, Nickel, Stamped, Main Bulkhead, CM6F

1шт.

16

84068583

PLUG,12 - 16 Ga, White

Sealing, Main Bulkhead, CM6F

43шт.

16

87716558

PLUG,Plug, Sealing

Sealing, White, Main Bulkhead, CM6F

4шт.

16

87717028

ELEC CONNECTOR

Lock, Main Bulkhead, CM6F

1шт.

16

87717030

ELEC CONNECTOR

Lock, Main Bulkhead, CM6F

1шт.

17

87695592

CONTACT HOUSING,Female, 12 Pole

Splice Pack, SP-047F

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice Pack, SP-047F

12шт.

17

87695651

LOCKING TAB,Wedge Lock

Lock, Splice Pack, SP-047F

1шт.

18

87269436

SOCKET/RECEPTACLE

Bussbar, 12 Cavity, Splice Pack, SP-047M

1шт.
