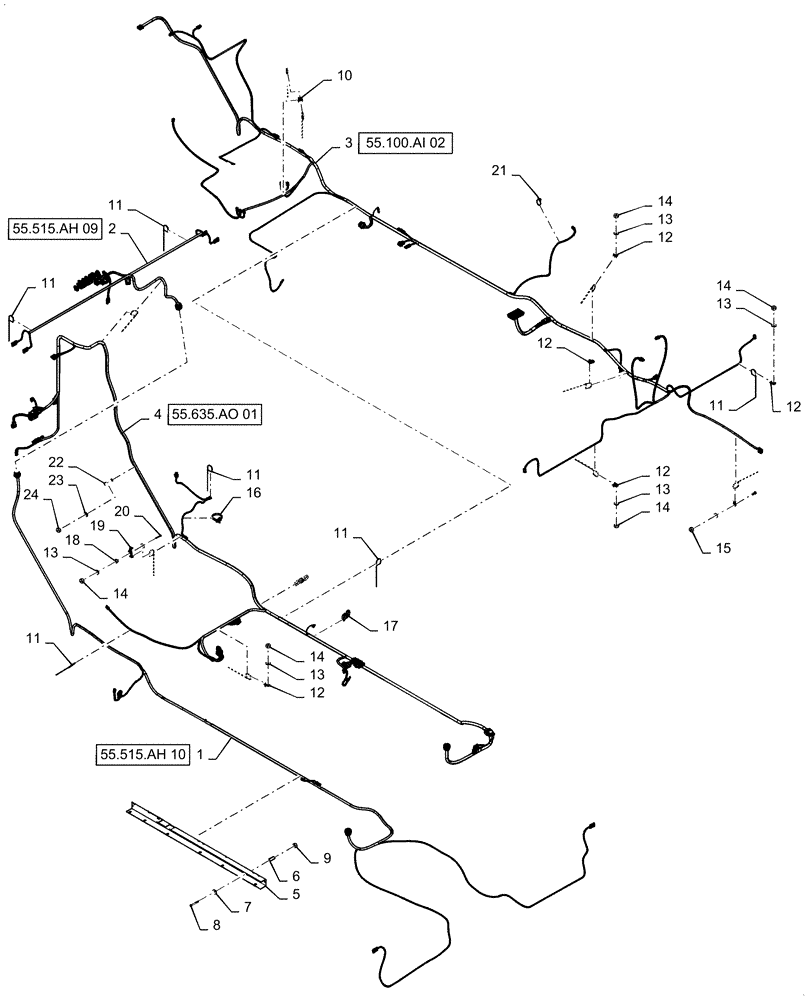

Запчасти Case IH PATRIOT 2250 (55.100.AI[01]) - HARNESS, CHASSIS MOUNTED (55) - ELECTRICAL SYSTEMS

1

47655309

WIRE HARNESS

Hydraulic Control, Frame

1шт.

See 55.515.AH 10 for Service

1шт.

2

47547022

WIRE HARNESS

Hydraulic Control, Center Section

1шт.

See 55.515.AH 09 for Service

1шт.

3

47655301

WIRE HARNESS

Main Frame

1шт.

See 55.100.AI 02 for Service

1шт.

4

47817188

WIRE HARNESS

Product Control

1шт.

See 55.635.AO 01 for Service

1шт.

5

47853664

MOUNT

Harness

1шт.

6

84388269

SPACER

Electric Tray

4шт.

7

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

4шт.

8

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

10

84318895

SPACER,17.97mm H

Swivel Tie Base

2шт.

11

BN570007

STRAP

14"

56шт.

12

84474186

BASE

Tie

12шт.

13

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

13шт.

14

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

12шт.

15

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

84551467

CABLE TIE,381mm L

1шт.

17

47853521

CABLE TIE

Dual Dividing

2шт.

18

47865864

SPACER

1" Dia

1шт.

19

84360209

BASE

Tie

1шт.

20

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

21

47395250

CABLE TIE,200mm L

Tie with Edge Clip

1шт.

22

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

23

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

24

87698779

NUT

M6, DOR

2шт.
