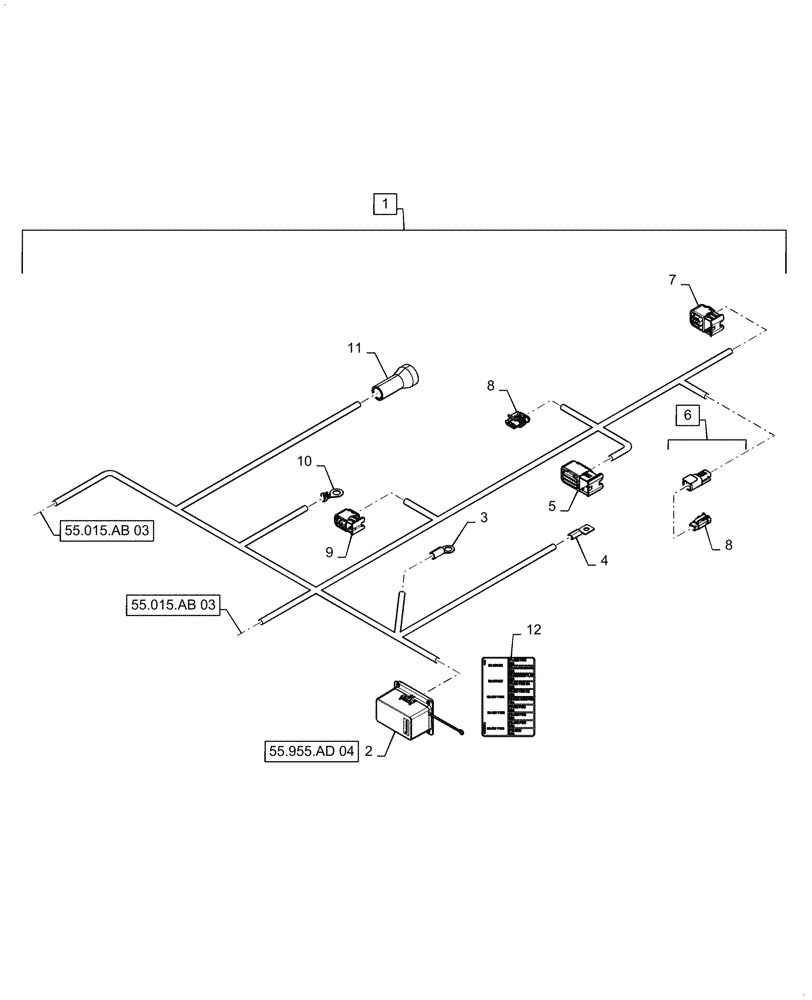

Запчасти Case IH PATRIOT 2250 (55.015.AB[03.2]) - ENGINE WIRE HARNESS, ASN YGT044000, PART II (55) - ELECTRICAL SYSTEMS

1

48028205

WIRE HARNESS

Assy, Engine, Incl 2 - 11

1шт.

2

87312843

FUSE BOX

X-810F1, Assy

1шт.

See 55.955.AD 04 For Service

1шт.

3

84398828

TERMINAL,3/8" Ring, SAE 8

CG4.1, Clean Ground

1шт.

4

84260359

TERMINAL CONNECTOR,Tin, 10.00 - 16.00mm

PD2.1, Battery Power

1шт.

5

84152570

ELEC CONNECTOR,Female, 12 Cavities

Denox Supply Module, X-823F1

1шт.

5

84567010

COVER

Denox Supply Module, X-823F1

1шт.

5

84129571

PLUG

White, Cavity Plug, Denox Supply Module, X-823F1

4шт.

5

84152576

TERMINAL

Female, Pre-Tin, Denox Supply Module, X-823F1

8шт.

5

84129570

SEAL

Yellow, Wire, Denox Supply Module, X-823F1

7шт.

6

87696547

ELEC CONNECTOR,Female, 2 Cavities

2 Pole, Male,Terminator, X-826M1, Incl 7

1шт.

6

87696585

LOCKING TAB,Wedge Lock, 2-Pin

Wedge Lock,Terminator, X-826M1

1шт.

8

84580797

RESISTOR

2W Terminating

1шт.

7

84149219

ELEC CONNECTOR

6 Pole, Female, Quality Sensor, X-837F1

1шт.

7

84129571

PLUG

White, Cavity Plug, Quality Sensor, X-837F1

2шт.

7

84152576

TERMINAL

Female, Pre-Tin, Quality Sensor, X-837F1

2шт.

7

84129570

SEAL

Yellow, Wire, Quality Sensor, X-837F1

2шт.

8

84062580

CONNECTOR, ELEC

3 Pole, Female, Urea Tank Sensor Interface, X-803F1

1шт.

8

87687564

TERMINAL CONNECTOR

Female, Pre-Tin, Urea Tank Sensor Interface, X-803F1

2шт.

8

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Urea Tank Sensor Interface, X-803F1

1шт.

8

82012084

SEAL,1.4mm ID

Yellow, Wire, Urea Tank Sensor Interface, X-803F1

3шт.

9

84146685

WIRE CONNECTOR,Female, 3 Cavities

3 Pole, Female, Urea Heater Valve, X-829F1

1шт.

9

84152576

TERMINAL

Female, Pre-Tin, Quality Sensor, X-829F1

2шт.

9

84129570

SEAL

Yellow, Wire, Urea Heater Valve, X-829F1

1шт.

9

84129571

PLUG

White, Cavity Plug, Urea Heater Valve, X-829F1

1шт.

10

84140737

TERMINAL CONNECTOR

Ring, M10 -6

1шт.

11

84177901

ELEC CONNECTOR

31 Pole, Male, Engine Interface, XB-801F1

1шт.

11

87700175

ELEC CONNECTOR

Grey, Boot, HD30 Series, Engine Interface, XB-801F1

1шт.

11

84807680

PLUG

Sealing, Engine Interface, XB-801F1

19шт.

11

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Nickel, Engine Interface, XB-801F1

3шт.

11

87695623

ELEC. TERMINAL PIN

Male, Nickel, Engine Interface, XB-801F1

9шт.

12

48020225

DECAL

Engine Fuses

1шт.
