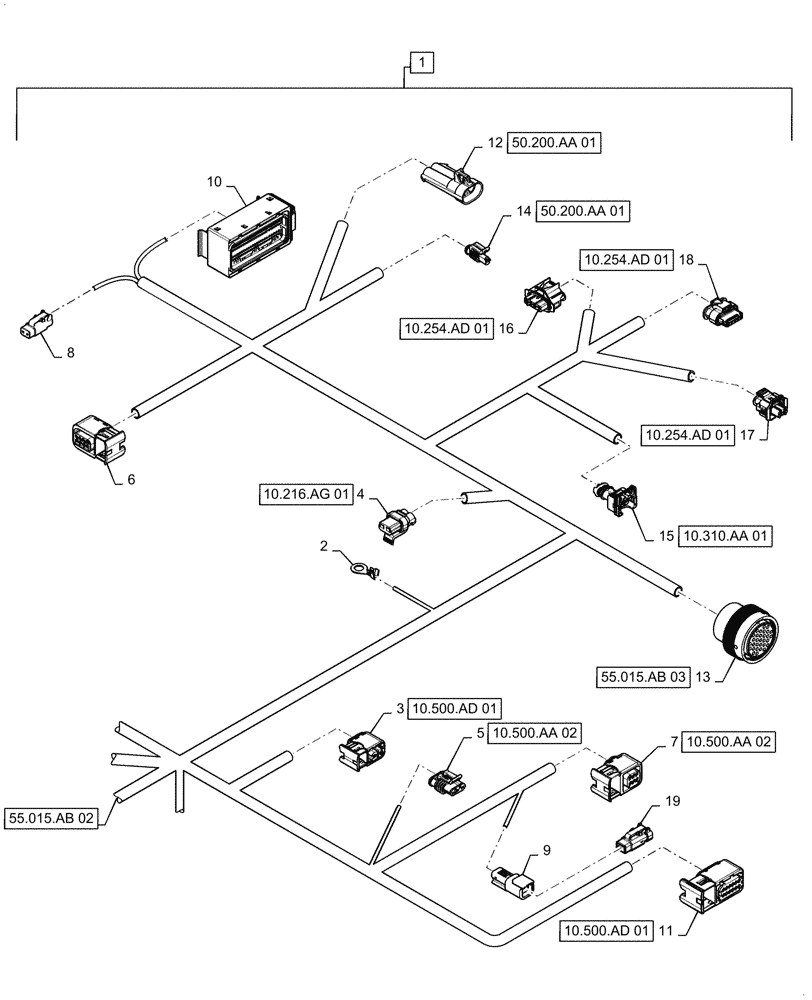

Запчасти Case IH PATRIOT 2250 (55.015.AB[03]) - ENGINE DENOX HARNESS, BSN YGT044001, PART II (55) - ELECTRICAL SYSTEMS

1

47710456

WIRE HARNESS

Assy, Engine, Incl 2 - 18

1шт.

2

84140737

TERMINAL CONNECTOR

Ring, M10 -6

1шт.

3

84146685

WIRE CONNECTOR,Female, 3 Cavities

3 Pole, Female, Urea Heater Valve, X-829F1

1шт.

3

84152576

TERMINAL

Female, Pre-Tin, Quality Sensor, X-829F1

2шт.

3

84129570

SEAL

Yellow, Wire, Urea Heater Valve, X-829F1

1шт.

3

84129571

PLUG

White, Cavity Plug, Urea Heater Valve, X-829F1

1шт.

4

87679438

WIRE CONNECTOR,Female

2 Pole, Fuel Restriction, X-667F1

1шт.

4

84806458

COLLAR

Blue, TPA Lock, Fuel Restriction, X-667F1

1шт.

4

87680656

CONTACT

Female, Tin, Fuel Restriction, X-667F1

2шт.

4

87680701

SEAL

Green, Cable, Fuel Restriction, X-667F1

2шт.

5

84062580

CONNECTOR, ELEC

3 Pole, Female, Urea Tank Sensor Interface, X-803F1

1шт.

5

87687564

TERMINAL CONNECTOR

Female, Pre-Tin, Urea Tank Sensor Interface, X-803F1

2шт.

5

82012084

SEAL,1.4mm ID

Yellow, Wire, Urea Tank Sensor Interface, X-803F1

3шт.

5

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Urea Tank Sensor Interface, X-803F1

1шт.

6

84152563

ELEC CONNECTOR

7 Pole, Female, FPT Harness Interface, X-840F1

1шт.

6

82035902

PLUG

Natural, Cavity Plug, FPT Harness Interface, X-840F1

1шт.

6

84129571

PLUG

White, Cavity Plug, FPT Harness Interface, X-840F1

2шт.

6

87691478

SEAL

Wire, FPT Harness Interface, X-840F1

2шт.

7

84149219

ELEC CONNECTOR

6 Pole, Female, Quality Sensor, X-837F1

1шт.

7

84129571

PLUG

White, Cavity Plug, Quality Sensor, X-837F1

2шт.

7

84152576

TERMINAL

Female, Pre-Tin, Quality Sensor, X-837F1

2шт.

7

84129570

SEAL

Yellow, Wire, Quality Sensor, X-837F1

2шт.

8

87696093

ELEC CONNECTOR,Female, 2 Cavities

ECM Flashing, X-818F1

1шт.

8

87696145

LOCKING TAB

Wedge Lock, ECM Flashing, X-818F1

1шт.

8

87696547

ELEC CONNECTOR,Female, 2 Cavities

Cap, 2 Pole, Male, ECM Flashing, X-818F1

1шт.

9

87696547

ELEC CONNECTOR,Female, 2 Cavities

2 Pole, Male,Terminator, X-826M1

1шт.

9

87696585

LOCKING TAB,Wedge Lock, 2-Pin

Wedge Lock,Terminator, X-826M1

1шт.

10

84300197

ELEC CONNECTOR

Female, 96 Pole, EDC 17, Engine ECU, X-816F1

1шт.

10

84300193

LOCK

Secondary Lock, EDC 17, Engine ECU, X-816F1

1шт.

10

84300198

ELEC CONNECTOR

96 Pole Cover, Engine ECU, X-816F1

1шт.

10

84300195

TERMINAL

Female, Silver, Engine ECU, X-816F1

16шт.

11

84152570

ELEC CONNECTOR,Female, 12 Cavities

Denox Supply Module, X-823F1

1шт.

11

84567010

COVER

Denox Supply Module, X-823F1

1шт.

11

84129571

PLUG

White, Cavity Plug, Denox Supply Module, X-823F1

4шт.

11

84152576

TERMINAL

Female, Pre-Tin, Denox Supply Module, X-823F1

8шт.

11

84129570

SEAL

Yellow, Wire, Denox Supply Module, X-823F1

7шт.

12

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

AC Safety Switch, X-813M1

1шт.

12

87688862

LOCKING TAB

X-813M1, A/C Safety Switch

1шт.

12

87688814

TERMINAL

Male, Tin, AC Safety Switch, X-813M1

2шт.

12

87688859

PLUG,0.8 - 2mm, Red

Cable Seal, AC Safety Switch, X-813M1

2шт.

13

84177901

ELEC CONNECTOR

31 Pole, Male, Engine Interface, XB-801F1

1шт.

13

87700175

ELEC CONNECTOR

Grey, Boot, HD30 Series, Engine Interface, XB-801F1

1шт.

13

84068583

PLUG,12 - 16 Ga, White

Sealing, Engine Interface, XB-801F1

18шт.

13

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Engine Interface, XB-801F1

11шт.

13

225407C1

PIN

Gold, Engine Interface, XB-801F1

2шт.

14

87687239

CONTACT HOUSING,Female, 1 Pole

A/C Clutch, X-814F1

1шт.

14

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

A/C Clutch, X-814F1

1шт.

14

82012084

SEAL,1.4mm ID

Yellow, Single Wire, A/C Clutch, X-814F1

1шт.

15

84607243

ELEC CONNECTOR,Female, 2 Cavities

Spring Clip, Air Filter Restriction Sensor, X-811F1

1шт.

15

87691026

CAP

Rubber Boot, Air Filter Restriction Sensor, X-811F1

1шт.

15

87702681

TERMINAL

Female, Tin, Air Filter Restriction Sensor, X-811F1

2шт.

15

87691478

SEAL

Wire, Air Filter Restriction Sensor, X-811F1

2шт.

16

87709809

ELEC CONNECTOR

4 Pole, Female, Humidity, Temp, Sensor, X-830F1

1шт.

16

84130602

TERMINAL CONNECTOR

Male, Tin, Humidity, Temp, Sensor, X-830F1

4шт.

16

87705976

SEAL

White, Single Wire, Humidity, Temp, Sensor, X-830F1

4шт.

17

87709793

WIRE CONNECTOR,Female, 2 Cavities

SCR Upstream Ex Temp, X-827F1

1шт.

17

47399877

TERMINAL

Female, Silver, SCR Upstream Ex Temp, X-827F1

2шт.

17

87705976

SEAL

White, Single Wire, SCR Upstream Ex Temp, X-827F1

2шт.

18

84190317

WIRE CONNECTOR,Female, 5 Cavities

NOX Sensor 2 DOC Upstream, X-836F1

1шт.

18

84190318

TERMINAL CONNECTOR

Female, Pre-Tin, NOX Sensor 2 DOC Upstream, X-836F1

3шт.

19

84539353

WIRE CONNECTOR

Terminator, X-826F1

1шт.
