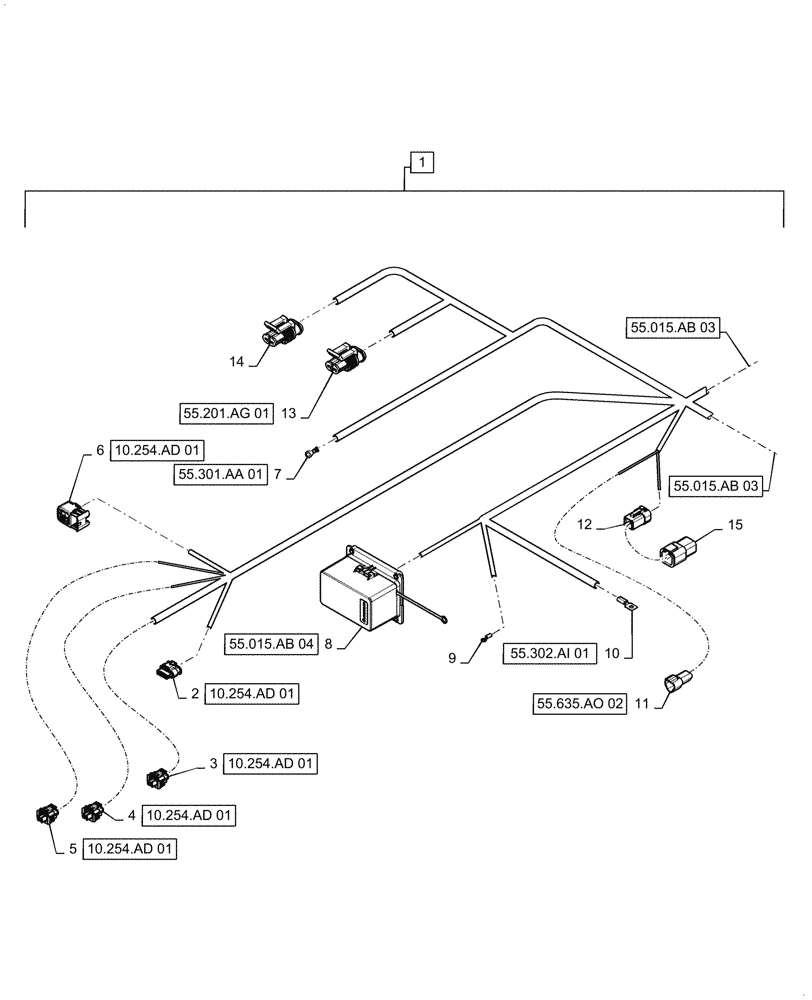

Запчасти Case IH PATRIOT 2250 (55.015.AB[02]) - ENGINE DENOX HARNESS, BSN YGT044001, PART I (55) - ELECTRICAL SYSTEMS

1

47710456

WIRE HARNESS

Assy, Engine, Incl 2 - 15

1шт.

2

84190317

WIRE CONNECTOR,Female, 5 Cavities

X-825F1, NOX Sensor, Female, 5 Cavity

1шт.

2

84190318

TERMINAL CONNECTOR

X-825F1, Contact, Female

4шт.

2

84142302

SEAL

X-825F1, Wire

2шт.

2

87709655

BLANK-OFF PLUG

X-825F1, Blue

1шт.

3

87709793

WIRE CONNECTOR,Female, 2 Cavities

X-804F1, Urea Dosing Valve, Female 2 Cavity

1шт.

3

87702660

TERMINAL

X-804F1, Female, Silver

2шт.

3

87705975

SEAL

X-804F1, Wire

2шт.

4

87709793

WIRE CONNECTOR,Female, 2 Cavities

X-839F1, Upstream Exhaust Temp Sensor, Female, 2 Cavity

1шт.

4

87705971

CONTACT

X-839F1, Female

2шт.

4

87705975

SEAL

X-839F1, Wire

2шт.

5

87709793

WIRE CONNECTOR,Female, 2 Cavities

X-828F1, Downstream Exhaust Temp Sensor, Female, 2 Cavity

1шт.

5

87705971

CONTACT

X-828F1, Female

1шт.

5

87705976

SEAL

X-828F1, Wire

1шт.

6

84146686

ELEC CONNECTOR,Female, 4 Cavities

X-831F1, NH3 Sensor

1шт.

6

84152584

TERMINAL,Tin, 0.50 - 1.00mm

X-831F1, NH3 Sensor

4шт.

6

87691478

SEAL

X-831F1, NH3 Sensor

4шт.

7

84127304

TERMINAL

X-835F1, ALT Excite

1шт.

7

87710106

TERMINAL CONNECTOR

X-835F1, ALT Excite

1шт.

8

87312843

FUSE BOX

X-810F1, Assy

1шт.

See 55.955.AD 04 For Service

1шт.

9

84398828

TERMINAL,3/8" Ring, SAE 8

CG4.1, Clean Ground

1шт.

10

84260359

TERMINAL CONNECTOR,Tin, 10.00 - 16.00mm

PD2.1, Battery Power

1шт.

11

87695723

ELEC CONNECTOR,Male , 3 Pole

X-505M1, Switch Power

1шт.

11

87695625

WIRE CONNECTOR,Locking, Green

X-505M1, Switch Power

1шт.

11

87695623

ELEC. TERMINAL PIN

X-505M1, Switch Power

1шт.

11

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

X-505M1, Switch Power

2шт.

12

87707727

WIRE CONNECTOR

X-506F1, Power Interface

1шт.

12

87707796

ELEC CONNECTOR

X-506F1, Power Interface

1шт.

12

87695923

TERMINAL

X-506F1, Power Interface

4шт.

13

82012083

WIRE CONNECTOR,Female

X-806F1, Intermediate Start

1шт.

13

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

X-806F1, Intermediate Start

2шт.

13

87406998

SEAL

X-806F1, Intermediate Start

1шт.

13

82012084

SEAL,1.4mm ID

X-806F1, Intermediate Start

1шт.

14

82012083

WIRE CONNECTOR,Female

X-817F, Grid Heater

1шт.

14

87687564

TERMINAL CONNECTOR

X-817F, Grid Heater

2шт.

14

82012084

SEAL,1.4mm ID

X-817F, Grid Heater

2шт.

15

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

X-506F1, Power Interface, Dust Cap

1шт.
