Запчасти Case IH PATRIOT 2250 (55.015.AB[01]) - ENGINE HARNESS, LAYOUT AND MOUNTING, BSN YGT044001 (55) - ELECTRICAL SYSTEMS

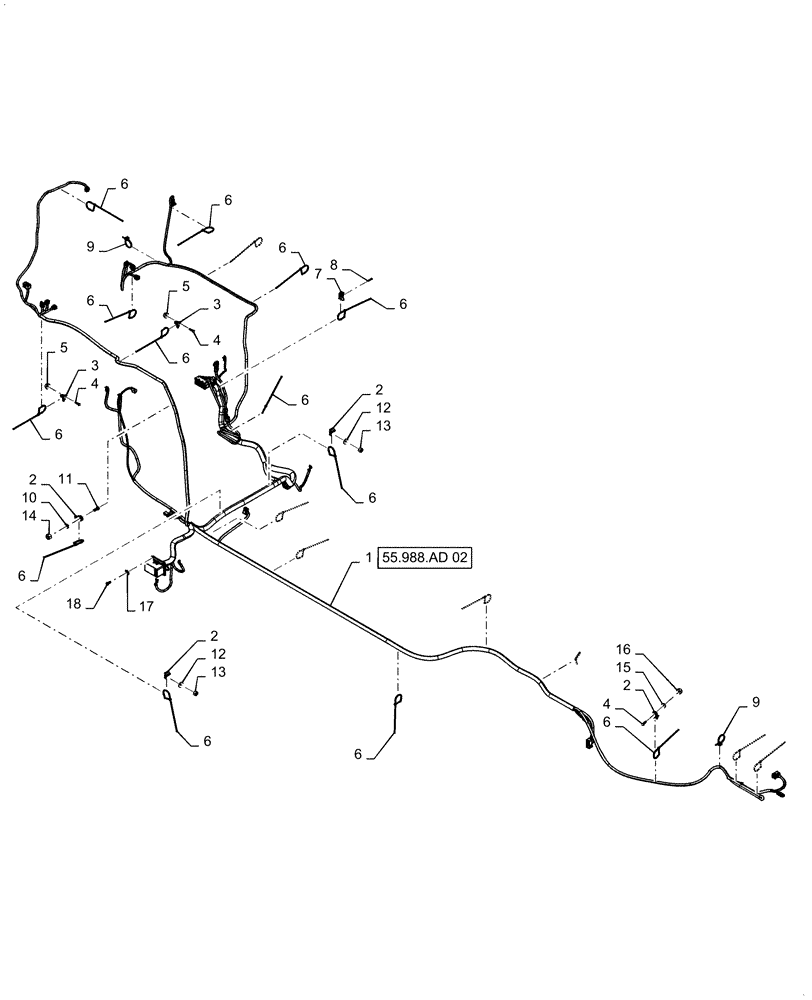

Схема запчастей Case IH PATRIOT 2250 - (55.015.AB[01]) - ENGINE HARNESS, LAYOUT AND MOUNTING, BSN YGT044001 (55) - ELECTRICAL SYSTEMS
55.988.ad 02
6
2
6
6
14
8
10
6
4
6
6
12
9
2
4
6
11
9
13
6
1
15
13
3
3
2
7
4
18
6
17
6
6
12
2
5
6
16
5
6

Артикул

Название

Примечание

Количество

1

47710456

WIRE HARNESS

Assy, Engine

1шт.

2

84407295

BASE

Tie, M10 Hole

4шт.

3

84360210

BASE

Tie, M8 Hole

2шт.

4

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

5

86981461

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

6

BN570007

STRAP

Band

20шт.

7

47412376

MOUNT

Cable Tie

1шт.

8

84299265

HEX SOC SCREW,Btn Hd, M6 x 16mm, Cl 8.8

1шт.

9

47395250

CABLE TIE,200mm L

Tie with Edge Clip

2шт.

10

495-11053

WASHER,1/2", SAE

1шт.

11

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

14

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

1шт.

15

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

16

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

17

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

4шт.

18

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

4шт.

Выбрано товаров: 18
