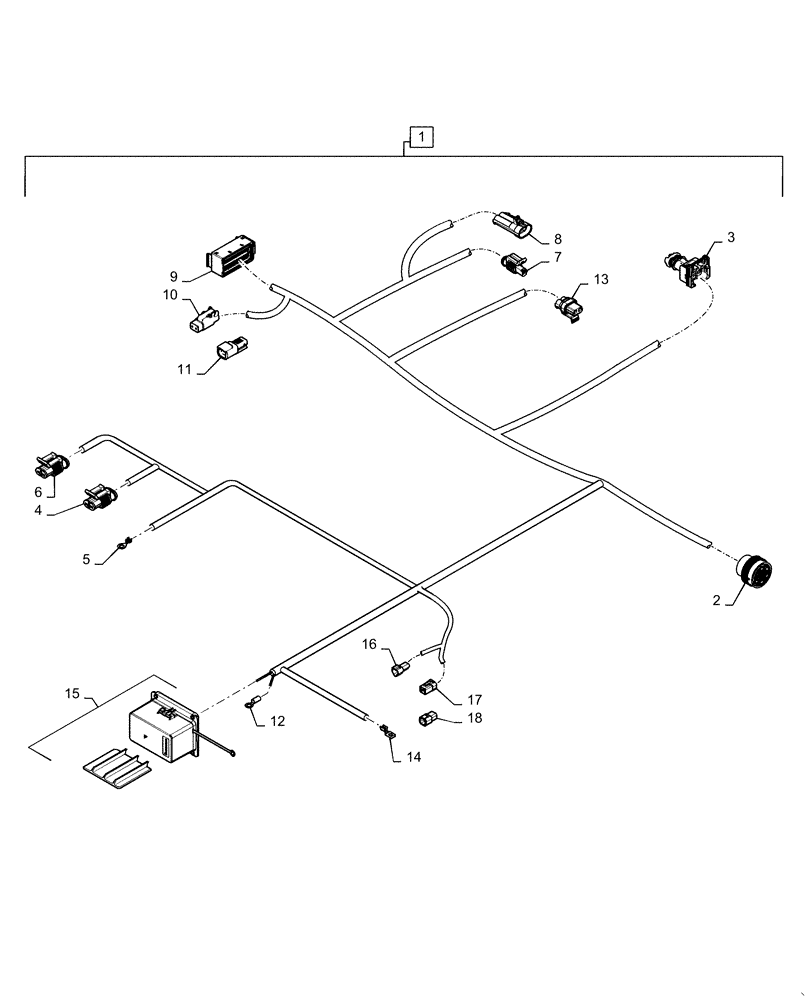

Запчасти Case IH PATRIOT 2250 (55.015.AB[01]) - ENGINE HARNESS (55) - ELECTRICAL SYSTEMS

1

47644738

WIRE HARNESS

Assy, Engine, Complete, Incl 2 - 18

1шт.

2

84177901

ELEC CONNECTOR

31 Pole, Male, Engine Interface, XB-801F2

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Sealing, Engine Interface, XB-801F2

16шт.

2

87700175

ELEC CONNECTOR

Grey, Boot, HD30 Series, Engine Interface, XB-801F2

1шт.

2

87271930

NUT

Panel, Engine Interface, XB-801F2

1шт.

3

84607243

ELEC CONNECTOR,Female, 2 Cavities

2 Pole, Spring Clip, Air Filter Rest Sensor, XB-801F2

1шт.

3

87702681

TERMINAL

Female, Tin, Air Filter Rest Sensor, XB-801F2

2шт.

3

87691478

SEAL

Wire, Air Filter Rest Sensor, XB-801F2

2шт.

3

87691026

CAP

Rubber Boot, Air Filter Rest Sensor, XB-801F2

1шт.

4

82012083

WIRE CONNECTOR,Female

2 Pole, Grid Heater, XB-801F2

1шт.

4

87687564

TERMINAL CONNECTOR

Female, Pre-Tin, Grid Heater, XB-801F2

2шт.

4

82012084

SEAL,1.4mm ID

Yellow, Wire, Grid Heater, XB-801F2

2шт.

5

84127304

TERMINAL

Ring, M5, Alternator Excite, XB-801F2

1шт.

5

87710106

TERMINAL CONNECTOR

Red, Boot, Alternator Excite, XB-801F2

1шт.

6

82012083

WIRE CONNECTOR,Female

2 Pole, Intermediate Start, XB-801F2

1шт.

6

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Intermediate Start, XB-801F2

2шт.

6

82012084

SEAL,1.4mm ID

Yellow, Wire, Intermediate Start, XB-801F2

1шт.

6

87406998

SEAL

Red, Wire, Intermediate Start, XB-801F2

1шт.

7

87687239

CONTACT HOUSING,Female, 1 Pole

AC Clutch, XB-801F2

1шт.

7

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

AC Clutch, XB-801F2

1шт.

7

82012084

SEAL,1.4mm ID

Yellow, Single Wire, AC Clutch, XB-801F2

1шт.

8

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

AC Safety Switch, X-813M2

1шт.

8

87688814

TERMINAL

Male, Tin, AC Safety Switch, X-813M2

2шт.

8

87688859

PLUG,0.8 - 2mm, Red

Cable Seal, AC Safety Switch, X-813M2

2шт.

8

87688862

LOCKING TAB

Black, AC Safety Switch, X-813M2

1шт.

9

84160698

ELEC CONNECTOR

89 Way, Engine ECU, X-816F2

1шт.

9

84130602

TERMINAL CONNECTOR

Male, Tin, Engine ECU, X-816F2

9шт.

9

87636264

ELEC CONNECTOR

Cavity Plug, Engine ECU, X-816F2

8шт.

9

87705976

SEAL

White, Single Wire, Engine ECU, X-816F2

9шт.

9

84183922

TERMINAL

Male, Tin, Engine ECU, X-816F2

6шт.

9

84183733

ELEC CONNECTOR

89 Pole Cover, Engine ECU, X-816F2

1шт.

10

87696093

ELEC CONNECTOR,Female, 2 Cavities

ECM Flashing, X-816F2

1шт.

10

87696145

LOCKING TAB

Wedge Lock, ECM Flashing, X-816F2

1шт.

11

87696547

ELEC CONNECTOR,Female, 2 Cavities

2 Pole, Male, Cap, X-818M2

1шт.

11

84807680

PLUG

Red, Sealing, Cap, X-818M2

2шт.

12

84398828

TERMINAL,3/8" Ring, SAE 8

Eyelet, M10, Clean Ground, CG4-2.1

1шт.

13

87679438

WIRE CONNECTOR,Female

2 Pole, Fuel Resistor, X-667F2

1шт.

13

87680656

CONTACT

Female, Tin, Fuel Resistor, X-667F2

2шт.

13

87680701

SEAL

Green, Cable, Fuel Resistor, X-667F2

2шт.

13

84806458

COLLAR

Blue, TPA Lock, Fuel Resistor, X-667F2

1шт.

14

84260359

TERMINAL CONNECTOR,Tin, 10.00 - 16.00mm

Ring, M5, Battery Power, PD2.2

1шт.

15

87312843

FUSE BOX

Female, 50 Pole, External Fuse Relay, X-810F2

1шт.

15

87680656

CONTACT

Female, Tin, External Fuse Relay, X-810F2

4шт.

15

225267C1

TERMINAL CONNECTOR

Female, Tin, External Fuse Relay, X-810F2

1шт.

15

87693249

ELEC. TERMINAL PIN

Female, Tin, External Fuse Relay, X-810F2

2шт.

15

87680701

SEAL

Green, Cable, External Fuse Relay, X-810F2

4шт.

15

87688859

PLUG,0.8 - 2mm, Red

Cable Seal, External Fuse Relay, X-810F2

2шт.

15

87686742

PLUG

Green, Cavity, External Fuse Relay, X-810F2

28шт.

15

87655334

RELAY,12V, 35A, Micro

External Fuse Relay, X-810F2

2шт.

15

84127708

FUSE,30A, Mini, Green

External Fuse Relay, X-810F2

6шт.

15

47668615

DECAL

External Fuse Relay, X-810F2

1шт.

15

47584669

RETAINER

Inside Cover, External Fuse Relay, X-810F2

1шт.

16

87695723

ELEC CONNECTOR,Male , 3 Pole

Switched Power, X-505M2

1шт.

16

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Nickel, Stamped, Switched Power, X-505M2

2шт.

16

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, Switched Power, X-505M2

1шт.

16

87695625

WIRE CONNECTOR,Locking, Green

Wedge Lock, Switched Power, X-505M2

1шт.

17

87707727

WIRE CONNECTOR

4 Pole, Female, Power Interface, X-505M2

1шт.

17

87695923

TERMINAL

Female, Nickel, Stamped, Power Interface, X-505M2

4шт.

17

87707796

ELEC CONNECTOR

Wedge Lock, Power Interface, X-505M2

1шт.

18

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

Dust Cap, Power Interface, X-505M2

1шт.

18

84068583

PLUG,12 - 16 Ga, White

Sealing, Dust Cap, Power Interface, X-505M2

4шт.
