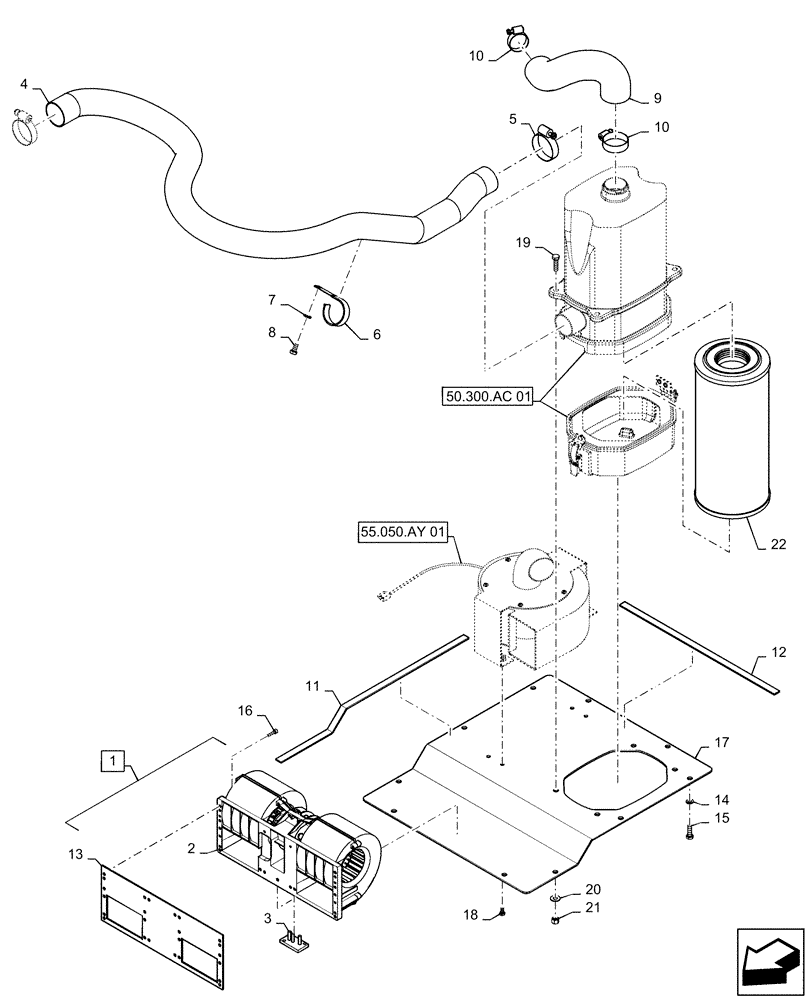

Запчасти Case IH PATRIOT 2250 (50.300.AC[01]) - CAB AIR PRESSURIZER, BLOWERS & FILTER (50) - CAB CLIMATE CONTROL

1

87663955

BLOWER

Assy, Incl 2, 3

1шт.

2

87663947

BLOWER

Ventilation

1шт.

2

87663947R

REMAN-BLOWER

Ventilation

1шт.

2

87663947C

CORE-BLOWER

Return Number

1шт.

3

82033103

RESISTOR

Blower Motor

1шт.

4

47497681

HOSE

Intake Air

1шт.

5

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

6

87313360

CLIP,50.8mm, Coat, 8.7mm Bolt Hole, J Type

Retainer

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

8

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

9

303732A1

TUBE

Filter Housing to Pressurizer

1шт.

10

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

2шт.

11

87494945

FOAM INSULATION

Plate

2шт.

12

47381961

FOAM INSULATION

Plate

2шт.

13

84434934

GASKET

Blower

1шт.

14

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

10шт.

15

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

10шт.

16

14304321

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

6шт.

17

47575318

PLATE

Blower Mounting

1шт.

18

86508616

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

19

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

20

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

21

412250

NUT,M8 x 1.25, Cl 8

4шт.

22

87267363

AIR FILTER,Cab Charcoal Recirculation

Cab Air

1шт.
