(50.300.AA[02]) - CAB SIDE PANEL, RECIRCULATION FILTER

Запчасти Case IH PATRIOT 2250 (50.300.AA[02]) - CAB SIDE PANEL, RECIRCULATION FILTER (50) - CAB CLIMATE CONTROL

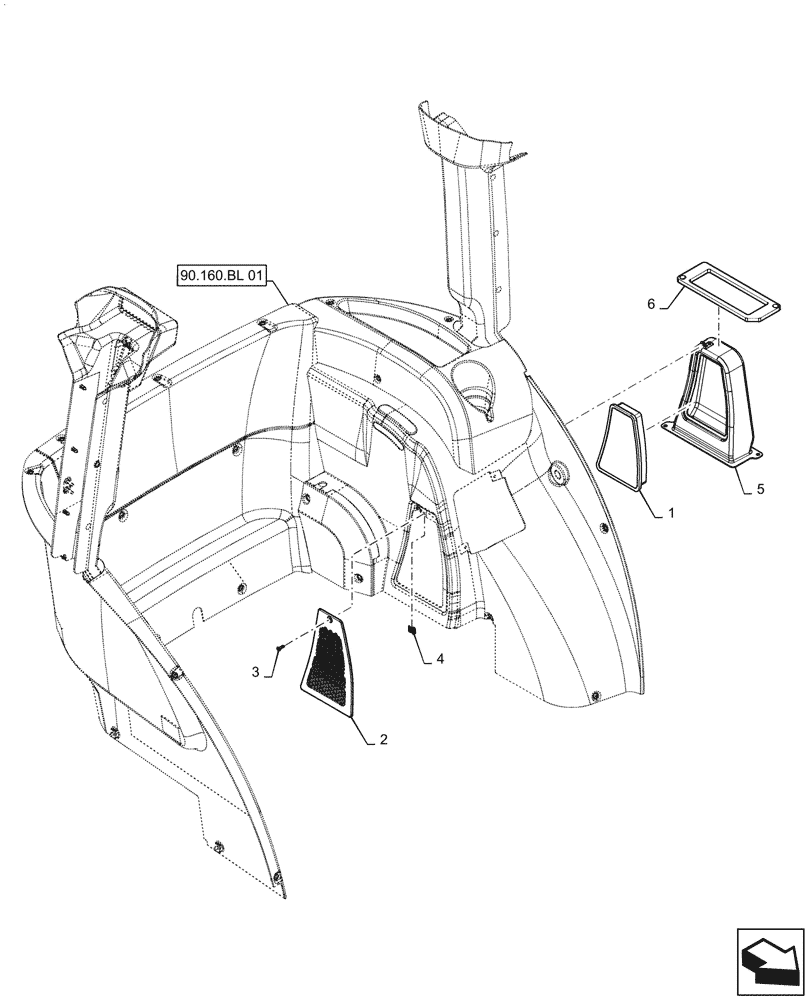

Схема запчастей Case IH PATRIOT 2250 - (50.300.AA[02]) - CAB SIDE PANEL, RECIRCULATION FILTER (50) - CAB CLIMATE CONTROL
90.160.bl 01
5
4
6
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84280229

CAB FILTER

Recirculation

1шт.

2

84316040

FILTER COVER

Recirculation, Wheat

1шт.

3

84354393

PIN,18.8mm L

Filter Cover

1шт.

4

84291986

CLIP

"C"

1шт.

5

47385163

AIR DUCT

Filter

1шт.

6

84389424

GASKET

Filter

1шт.
