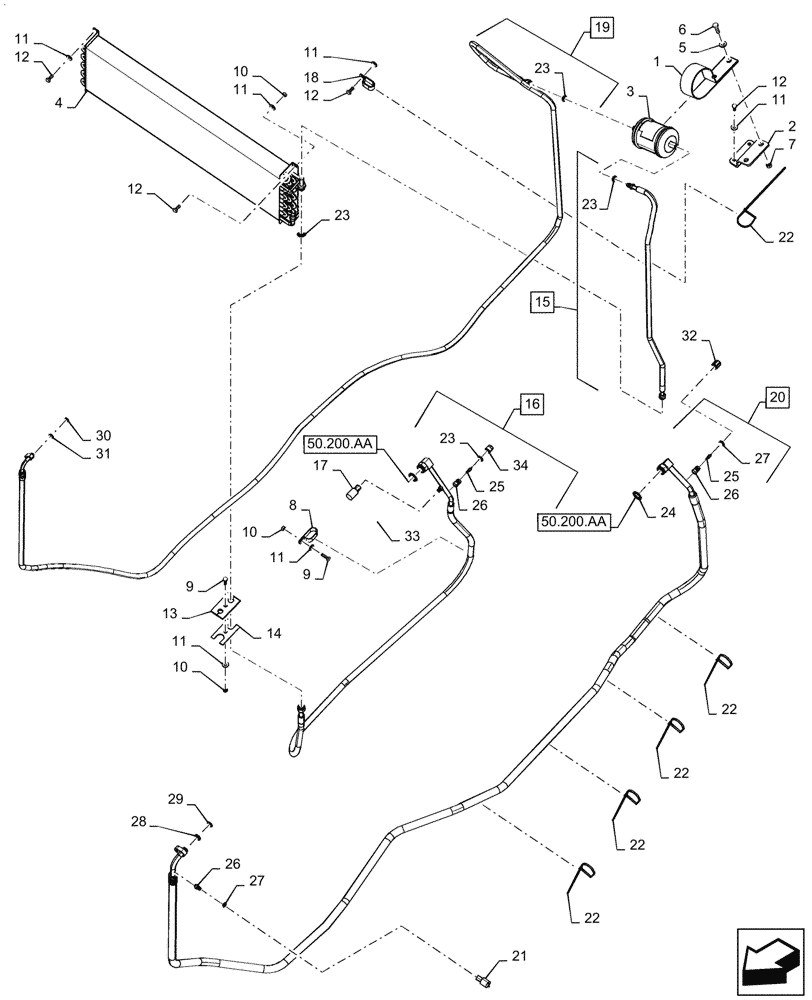

Запчасти Case IH PATRIOT 2250 (50.200.AB[01]) - AIR CONDITIONER LINES (50) - CAB CLIMATE CONTROL

1

47428687

MOUNT

A/C Drier

1шт.

2

D145289

SUPPORT

Receiver Drier

1шт.

3

47821526

RECEIVER-DRYER

Horizontal

1шт.

4

87270664

CONDENSER

A/C

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

6

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

8

R54363

CLAMP

Double

1шт.

9

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

11

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9шт.

12

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

13

87270790

SEAL

A /C Hoses

1шт.

14

87270791

PLATE

A /C Hoses

1шт.

15

87270636

HOSE

Receiver Drier to Condenser, Incl 23

1шт.

16

47880266

HYDRAULIC HOSE

Condenser to Compressor Incl 23, 25, 26, 33, 34

1шт.

17

284273A2

SWITCH, A/C HIGH PRE

1шт.

18

L101181

CLAMP,0.75" D Clamping pipes x 2

Double

1шт.

19

47701964

A/C HOSE

Cab to Receiver Drier, Incl 23, 30, 31

1шт.

20

47701965

A/C HOSE

Cab to Compressor, Incl 24 - 30

1шт.

21

87000228

SWITCH, A/C LOW PRES

1шт.

22

BN570007

STRAP

Zip Tie

5шт.

23

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

Green

4шт.

24

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

Green

3шт.

25

1250594C1

CORE

Valve

2шт.

26

122081A1

FITTING,M10 x 1.25 x 26.43mm L

Pressure Switch

2шт.

27

14450483

O-RING,1.8mm Thk x 6.7mm ID

Green

1шт.

28

10319983

O-RING,1.6mm Thk x 16.1mm ID

Green

1шт.

29

14450783

O-RING,13.4mm ID x 2.4mm Width

Green

1шт.

30

82007847

O-RING,1.8mm Thk x 6.7mm ID

Green

1шт.

31

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

Green

1шт.

32

122553A1

CAP

Low Side Service Port, Blue

1шт.

33

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

Green

1шт.

34

122554A1

CAP

High Side Service Port, Blue

1шт.
