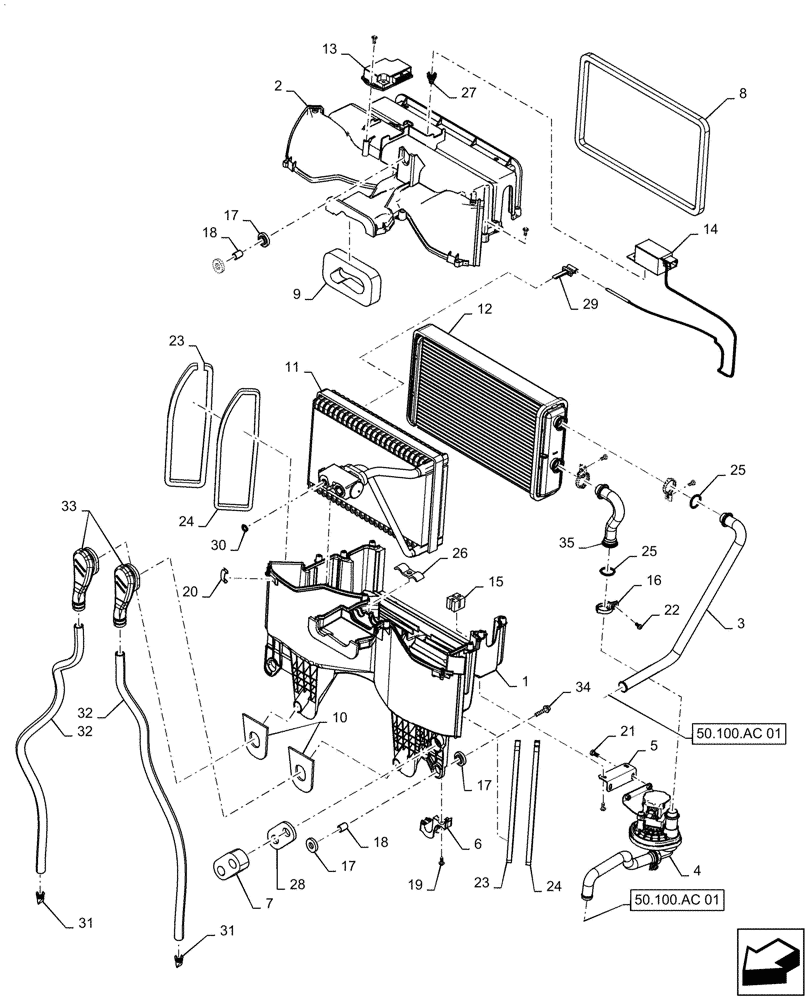

Запчасти Case IH PATRIOT 2250 (50.100.AF[01]) - HEATER CORE, & AIR CONDITIONING EVAPORATOR (50) - CAB CLIMATE CONTROL

1

84579666

BOX

Lower Air

1шт.

2

84579668

BOX

Upper Air

1шт.

3

84579671

TUBE

Coolant

1шт.

4

84579673

HEATER VALVE,Water Control

1шт.

5

84579676

BRACKET

Heater Valve

1шт.

6

84579679

BRACKET

Coolant Line

1шт.

7

84579692

SEAL

Coolant Line

1шт.

8

84579696

FOAM INSULATION

Heat Exchanger

1шт.

9

84579697

SEAL

Evaporator

1шт.

10

84579698

SEAL

Lower Air Box

2шт.

11

84579699

EVAPORATOR

A/C, Incl Expansion Valve

1шт.

12

84579701

RADIATOR, HEATER

Heater Core

1шт.

13

84579702

MODULE

Stepper Motor

1шт.

14

84579703

SENSOR

Temperature

1шт.

15

84579704

GROMMET

Lower Air Box

1шт.

16

84579758

CLIP

Lower Air Box

2шт.

17

84582260

RUBBER BUSHING

Grommet

6шт.

18

84582274

SPACER

Bushing

3шт.

19

84582238

SCREW,M4 x 12mm

16шт.

20

84579773

CLIP

Air Box

4шт.

21

44006

BOLT,M5 x 10mm

1шт.

22

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

2шт.

23

84579778

SEAL

Air Box

2шт.

24

84579779

RUBBER SEAL

Air Box

2шт.

25

84602240

O-RING

Heater Core Lines

2шт.

26

84579788

BRACKET

A/C Line

1шт.

27

47832399

CAP

AC Bracket

1шт.

28

84579783

SEAL

Coolant Line

1шт.

29

84579784

CLIP

Sensor

1шт.

30

84579787

O-RING

Evaporator

2шт.

31

109239C2

CHECK VALVE

Condensate Tubes

2шт.

32

84396347

FLEXIBLE HOSE,12.7mm ID x 660mm L

Condensate Tubes

2шт.

33

84319940

PLASTIC-RUBBER TUBE

Condensate Boot

2шт.

34

16286324

BOLT,Hex, M6 x 30mm, Cl 8.8

Flange

2шт.

35

47839363

HOSE

Heater Core Tube

1шт.
