(50.100.AC[01]) - HEATER HOSES

Запчасти Case IH PATRIOT 2250 (50.100.AC[01]) - HEATER HOSES (50) - CAB CLIMATE CONTROL

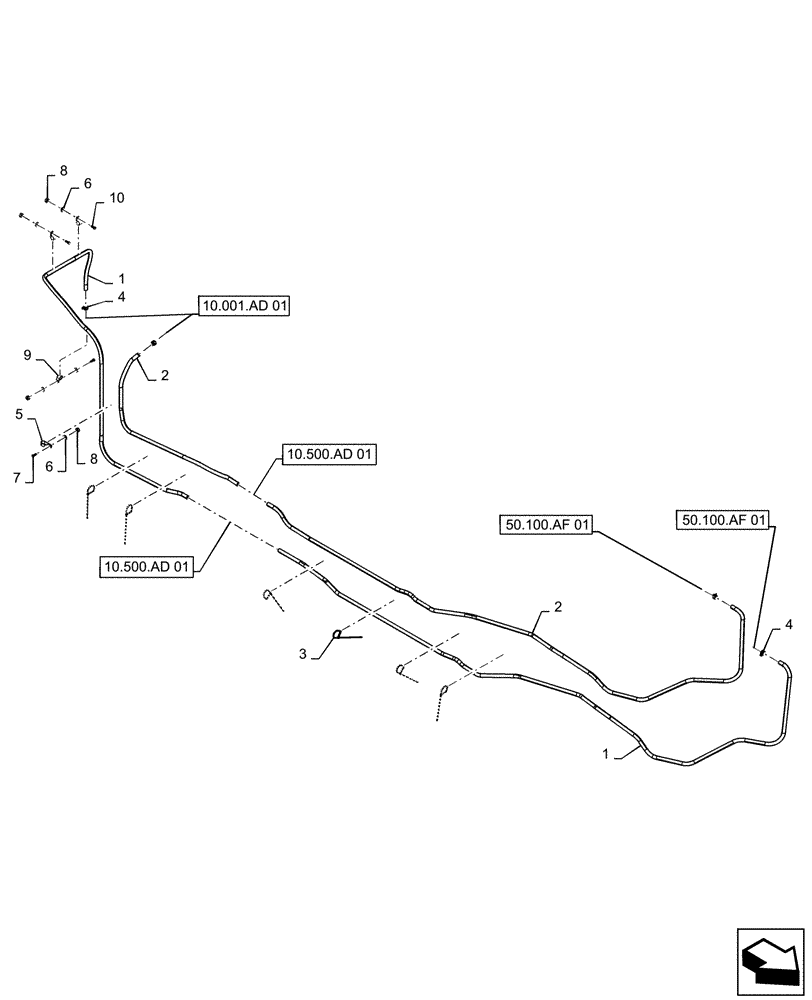

Схема запчастей Case IH PATRIOT 2250 - (50.100.AC[01]) - HEATER HOSES (50) - CAB CLIMATE CONTROL
10.001.ad 01
8
3
1
1
7
8
2
10
5
6
9
4
6
4
50.100.af 01
50.100.af 01
2
10.500.ad 01
10.500.ad 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN312581

HEATER HOSE,0.625" ID

Supply, White Stripe, Bulk, Engine to Heater Core

1шт.

2

BN312582

HOSE

0.625" ID, Return, Solid Black, Bulk, Heater Core to Engine

1шт.

3

87557084

CABLE TIE,14"

7шт.

4

1954736C1

HOSE CLAMP,#24

4шт.

5

R54363

CLAMP

Double

1шт.

6

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

5шт.

7

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

8

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

9

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.
