(44.511.AG[01]) - WHEEL ASSY

Запчасти Case IH PATRIOT 2250 (44.511.AG[01]) - WHEEL ASSY (44) - WHEELS

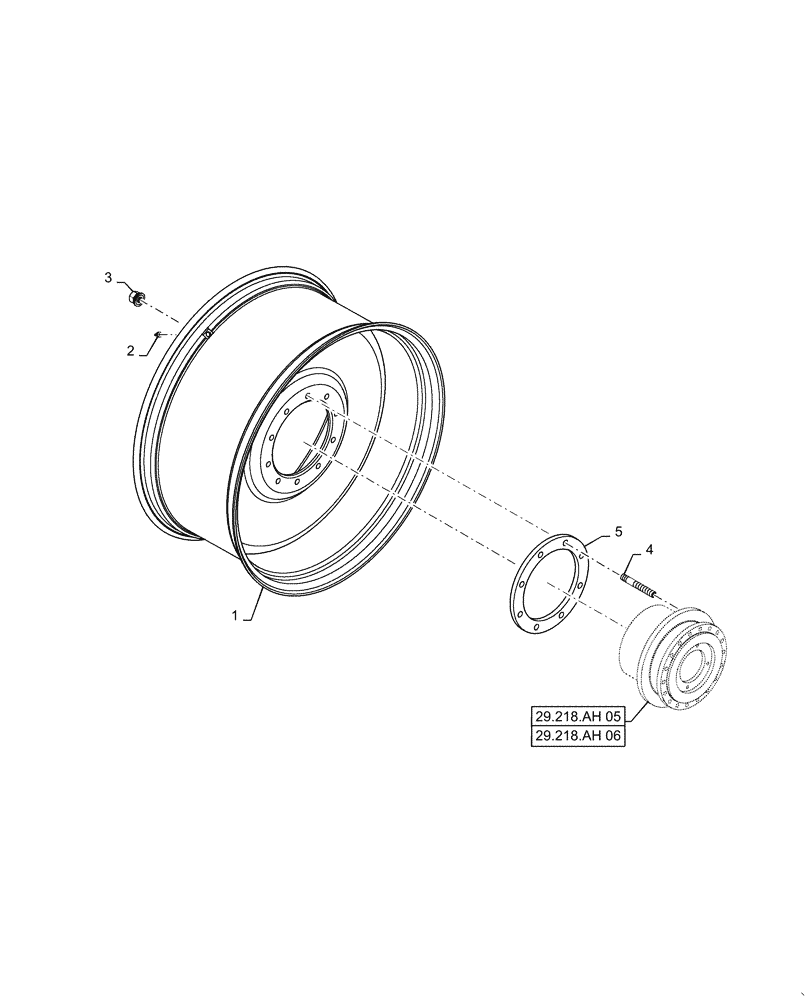

Схема запчастей Case IH PATRIOT 2250 - (44.511.AG[01]) - WHEEL ASSY (44) - WHEELS
29.218.ah 06
5
2
1
3
4
29.218.ah 05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47744558

WHEEL

38 x W12A, 10 Hole, Silver, For 380 / 80 R38 Tires

4шт.

1

47737247

WHEEL

15 x 38, 10 Hole, Silver, For 420 / 85 R38 Tires

4шт.

1

47776600

WHEEL

42 x W10A, 10 Hole, Silver, For 320 / 90 R42 Tires

4шт.

2

84319377

VALVE STEM

4шт.

3

BN315229

WHEEL NUT

Flange, Wheel 22MM

40шт.

4

84559974

STUD

Wheel

40шт.

5

BN306152

SPACER

Used On Rear Wheels Only

2шт.
