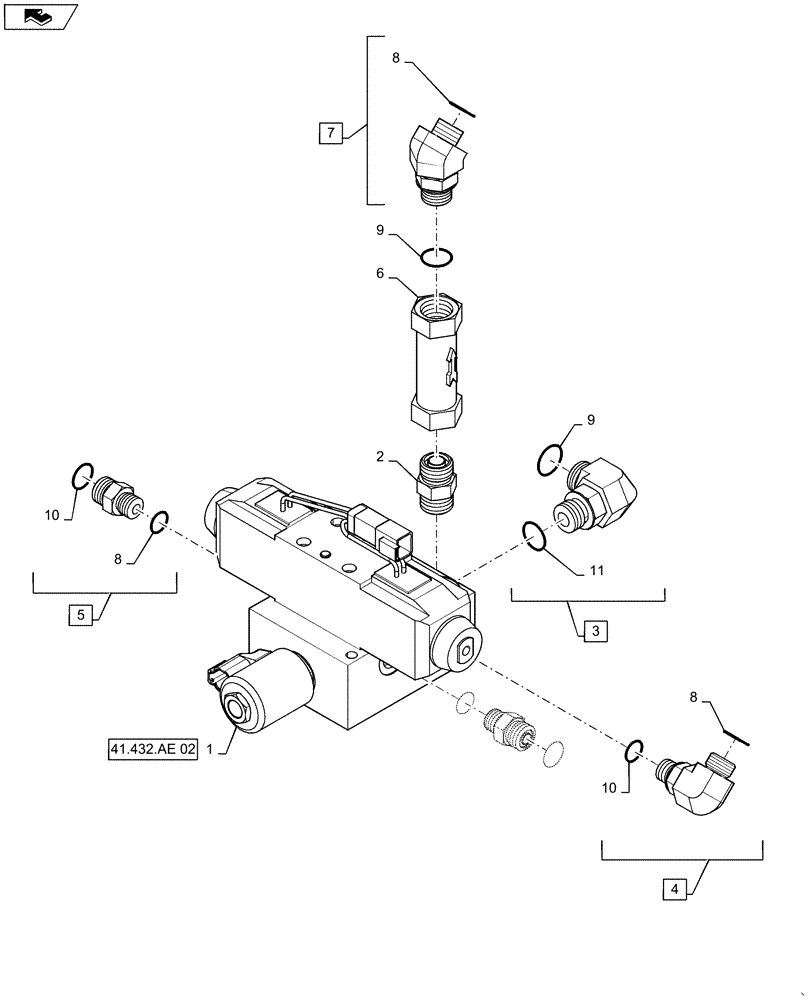

Запчасти Case IH PATRIOT 2250 (41.432.AE[03]) - AUTOGUIDANCE VALVE, FITTINGS (41) - STEERING

1

87609218

VALVE

Autoguidance

1шт.

2

BN322765

FITTING

3/4-16 ORB x 3/4-16 ORB

1шт.

3

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB, Incl 9, 11

1шт.

4

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Incl 8, 10

1шт.

5

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB, Incl 8, 10

2шт.

6

87590181

SWITCH

Flow

1шт.

7

BN303940

FITTING

Elbow, 45, Adj, 11/16-16 ORFS X 3/4-16 ORB, Incl 8

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
