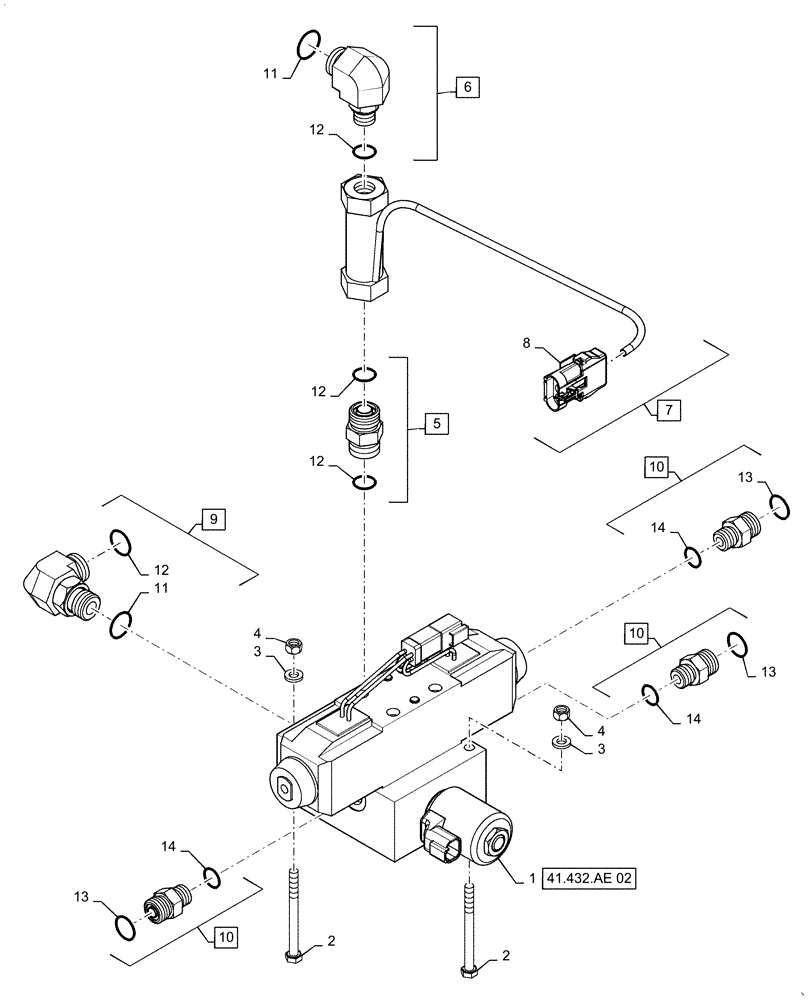

Запчасти Case IH PATRIOT 2250 (41.432.AE[01]) - AUTOGUIDANCE VALVE, WITH FITTINGS (41) - STEERING

1

87609218

VALVE

Autoguidance, Complete

1шт.

2

86980368

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

2шт.

3

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

4

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

5

BN322765

FITTING

8MB, 8MB Adapter

1шт.

6

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB, Incl 12

1шт.

7

47626975

PRESSURE SWITCH

Flow Switch, Incl 8

1шт.

8

47421077

ELEC CONNECTOR

Flow Switch

1шт.

8

84571098

ELEC CONNECTOR

Wedge Lock, Flow Switch

1шт.

8

87692880

CABLE TERMINAL

Male, Flow Switch

3шт.

8

87680701

SEAL

Flow Switch

1шт.

9

BN302558

ELBOW

13/16" - 16 ORFS x 3/4" - 16 ORB, Incl 11, 12

1шт.

10

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB, Incl 13, 14

3шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.
