Запчасти Case IH PATRIOT 2250 (41.216.AV[01]) - STEERING CYLINDER HYD. LINES (41) - STEERING

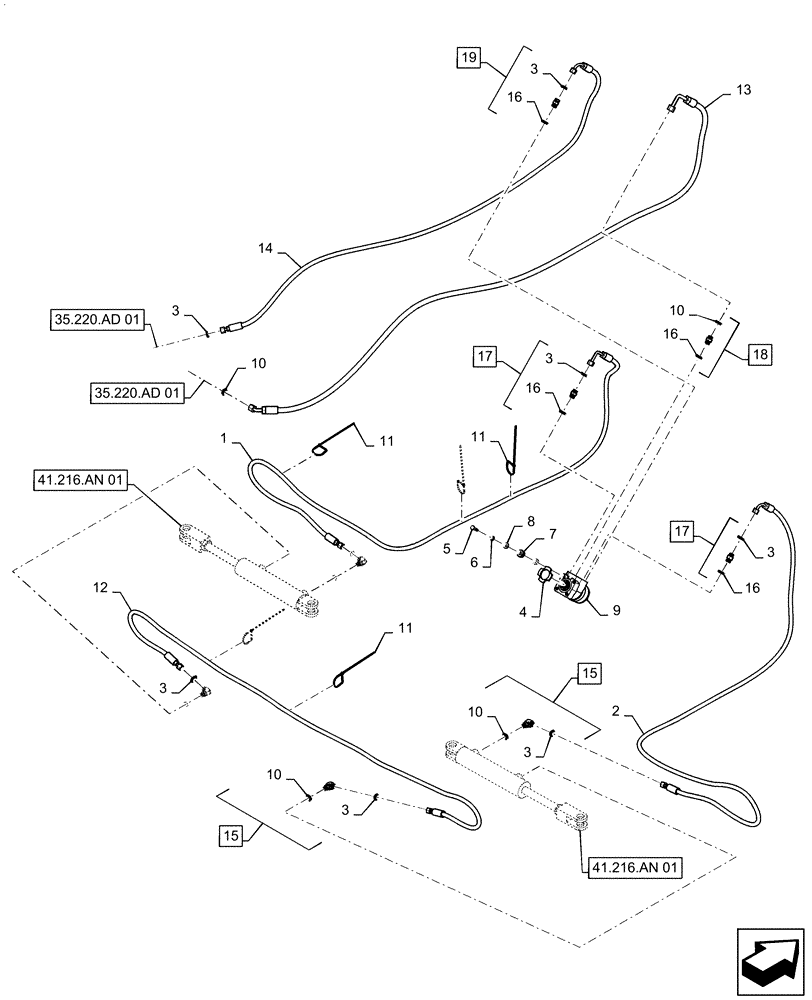

Схема запчастей Case IH PATRIOT 2250 - (41.216.AV[01]) - STEERING CYLINDER HYD. LINES (41) - STEERING
35.220.ad 01
18
10
6
16
1
2
11
14
11
10
17
11
16
7
15
5
19
3
13
12
10
15
3
3
3
3
3
17
8
10
4
16
41.216.an 01
41.216.an 01
16
3
9
35.220.ad 01

Артикул

Название

Примечание

Количество

1

84376406

HYDRAULIC HOSE

11/16-16 Female ORFS Swivel Short x 11/16-16 Female ORFS Swivel Elbow Long x 3/8" ID x 128" Long, Left Hand Cylinder Base to Orbital

1шт.

2

84376404

HYDRAULIC HOSE

11/16-16 Female ORFS Swivel Short x 11/16-16 Female ORFS Swivel Elbow Long x 3/8" ID x 127" Long, Right Hand Cylinder Base to Orbital

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

10шт.

4

81873344

RUBBER INSULATOR

Orbital Isolator

1шт.

5

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

6

329677A1

RETAINER,9.09mm ID x 19.87mm OD x 0.38mm Thk

Bolt

4шт.

7

82009429

ISOLATOR

Steering Column

7шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

9

47448442

CONTROL VALVE

Orbital

1шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

11

BN570007

STRAP

14 1/2"

12шт.

12

84377140

HYDRAULIC HOSE

11/16-16 Female ORFS Swivel Short x 11/16-16 Female ORFS Swivel Short x 3/8" ID x 113" Long, Cylinder to Cylinder

1шт.

13

47852432

HYDRAULIC HOSE

13/16-16 Female ORFS Swivel 45° Short x 13/16-16 Female ORFS Swivel Elbow Long x 1/2" ID x 117" Long, Steel Lines to Orbital

1шт.

14

BN307843

HOSE

11/16-16 Female ORFS Swivel Elbow x 11/16-16 Female ORFS Swivel x 3/8" ID x 97" Long, Steel Lines to Orbital

1шт.

15

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Incl 3, 10

4шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

17

BN302647

FITTING

11/16-16 ORFS x 3/4-16 ORB, Incl 3, 16

2шт.

18

BN302650

FITTING

13/16-16 ORFS x 3/4-16 ORB, Incl 10, 16

1шт.

19

BN311751

CHECK VALVE

Incl 3, 16

1шт.

Выбрано товаров: 19
