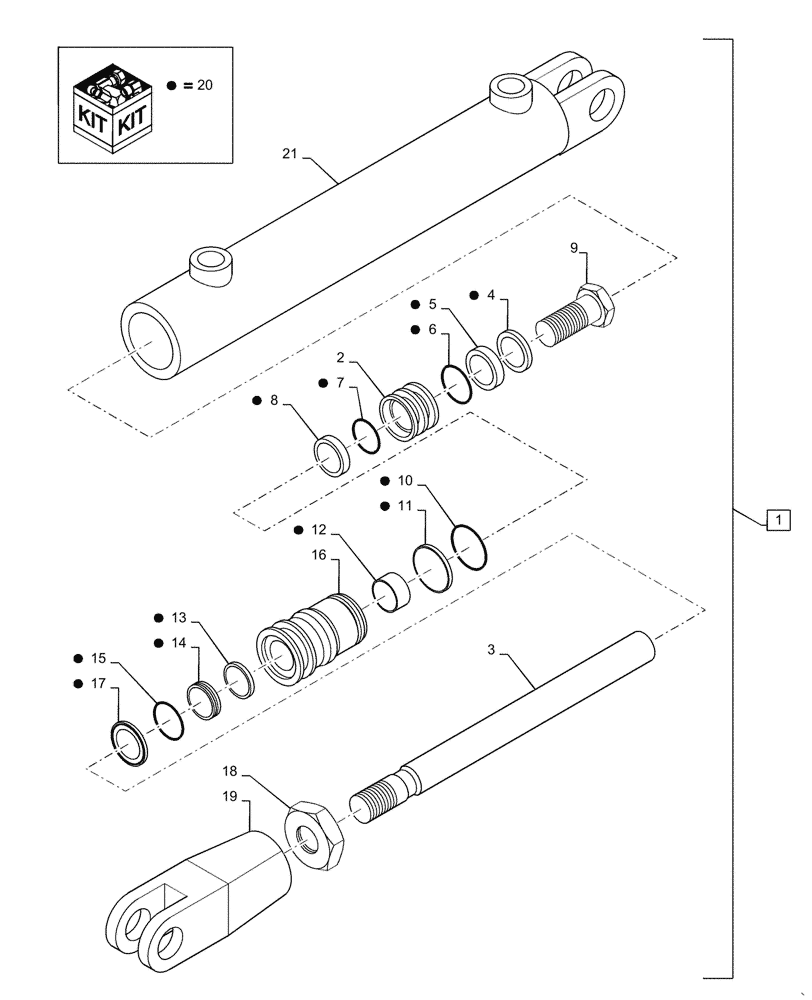

Запчасти Case IH PATRIOT 2250 (41.216.AN[01]) - STEERING CYLINDER (41) - STEERING

1

86986500

CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

Steering, Incl 2 - 21

1шт.

1

86986500R

REMAN-HYD CYLINDER

Steering, Incl 2 - 21

1шт.

1

86986500C

CORE-HYD CYLINDER

Return Number

1шт.

2

86986242

PLUNGER

Piston

1шт.

3

BN324210

SHAFT

Rod

1шт.

4

86986284

RING,Split, 57.1mm ID x 63.5mm OD x 4.17mm Thk

Wear

2шт.

5

86986286

PISTON

Seal

1шт.

6

238-5034

O-RING,0.07" Thk x 2.114" ID, -34, Cl 5, 75 Duro

2шт.

7

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

8

86986285

RING,32.26mm ID x 37.74mm OD x 1.27mm Thk

Back-up

2шт.

9

86986241

SCREW,7/8" - 14 x 1 1/2", Gr 8

1шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

12

86986281

STOP

Wear Ring, 1.25" Rod

1шт.

13

86986282

RING,31.75mm ID x 39.37mm OD x 3.45mm Thk

Step Seal, 1.25" Rod

1шт.

14

86986283

SHANK

U-cup, 1.25" Rod

1шт.

15

238-5141

O-RING,0.103" Thk x 2.3" ID, -141, Cl 5, 75 Duro

1шт.

16

86986280

SCRAPER

Gland

1шт.

17

D95141

WIPER SEAL

Rod

1шт.

18

86986240

JAM NUT

Jam

1шт.

19

87266309

EYE

Clevis

1шт.

20

BN324211

SEAL KIT

Incl 4 - 8, 10 - 15, 17

1шт.

21

87266308

CYLINDER,63.5mm Bore Dia

Case

1шт.
