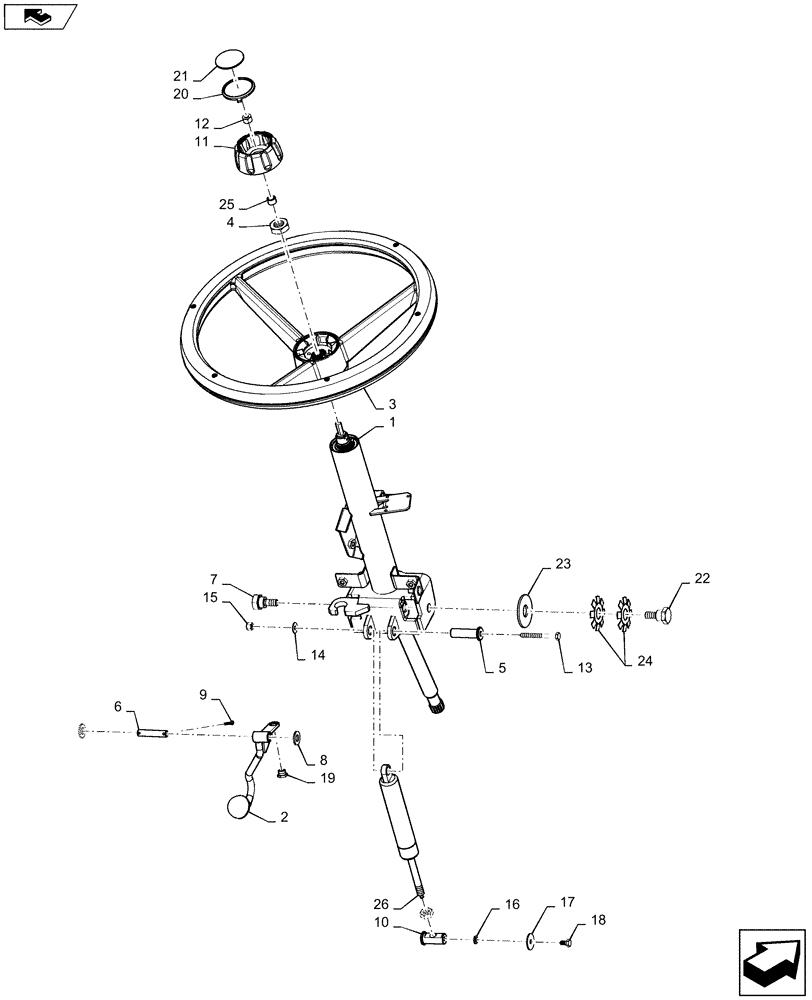

Запчасти Case IH PATRIOT 2250 (41.101.AB[01]) - STEERING COLUMN AND WHEEL (41) - STEERING

1

84296756

STEERING COLUMN,Telescopic

Bracket and Shaft

1шт.

2

84391237

LEVER

Foot Pedal

1шт.

3

5091213

STEERING WHEEL

15 3/4" Dia

1шт.

4

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

5

84219498

SHAFT

Upper Gas Strut

1шт.

6

84219530

PIN,9.8mm OD x 48mm L

Tilt Pedal

2шт.

7

84219536

SCREW,Hex, M10 x 1.25 x 28mm

Left Side Tilt Pivot

1шт.

8

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

9

10733601

COTTER PIN,M3.2 x 22

4шт.

10

84219532

PIN,20mm OD x 33.5mm L

Lower Gas Strut

1шт.

11

87302160

KNOB

Center

1шт.

12

16104511

NUT,M8 x 1.25, Cl 8.8

1шт.

13

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

1шт.

14

14498801

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

15

12574211

NUT,M6 x 1, Cl 8

1шт.

16

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

17

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

18

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

19

82003283

PLUG,10.5mm OD

Tilt Pedal

1шт.

20

87302798

CAP,54mm OD, Black

Steering Wheel

1шт.

21

87698705

EMBLEM,44mm OD

Case IH

1шт.

22

47389395

SCREW,Hex, M10 x 1.25 x 30mm

Right Side Tilt Pivot

1шт.

23

47389390

DISC,18mm ID x 50mm OD x 3mm Thk

Tilt Pivot

1шт.

24

47389397

SPRING

Tilt Pivot

2шт.

25

84379531

SPACER,8.48mm ID x 12.7mm OD x 8mm L

Steering Wheel

1шт.

26

47492715

GAS STRUT

Tilt

1шт.
