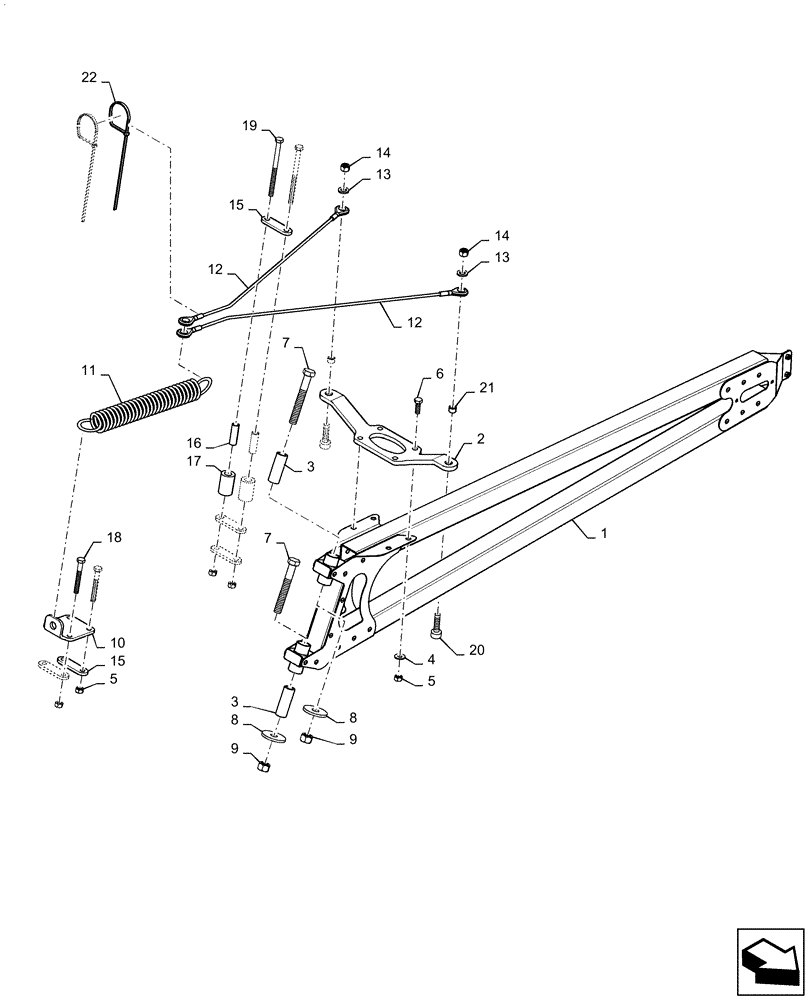

Запчасти Case IH PATRIOT 2250 (39.130.AE[01]) - BOOM BREAKAWAY, RH / LH, 80/90 BOOM (39) - FRAMES AND BALLASTING

1

47368755

BOOM

Breakaway, LH / RH

1шт.

2

47643945

ARM

Breakaway Support

1шт.

3

87272899

BUSHING,15.89mm ID x 25.21mm OD x 68mm L

2шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

10шт.

6

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

7

86980450

BOLT,Hex, M16 - 2 x 120mm, Cl 8.8, DOR

2шт.

8

87529305

WASHER,17.5mm ID x 56mm OD x 5mm Thk

DOR

2шт.

9

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

10

BN311733

ANCHOR

Breakaway

1шт.

11

BN305410

SPRING

12" Long Expansion

1шт.

12

87271165

CABLE,713mm L

Breakaway, 28"

2шт.

13

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

2шт.

14

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

15

BN308039

PLATE

Spacer

5шт.

16

47401020

BUSHING

5/8" OD x 2" Long

2шт.

17

87265981

ROLLER,31.75mm OD x 48mm L

UHMW

2шт.

18

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

19

86980414

BOLT,Hex, M10 - 1.5 x 140mm, Cl 8.8, DOR

2шт.

20

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.

21

47636886

BUSHING

Arm, Breakaway

2шт.

22

BN570007

STRAP

14"

2шт.
