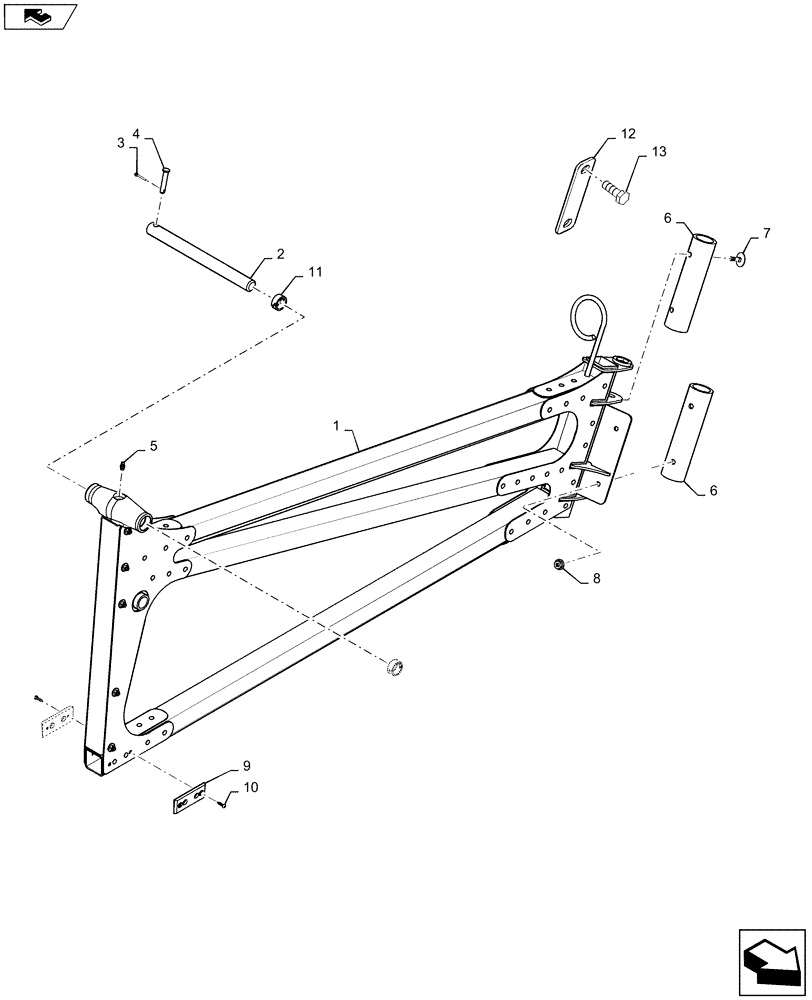

Запчасти Case IH PATRIOT 2250 (39.130.AD[02]) - OUTER BOOM, RH / LH, 90 BOOM (39) - FRAMES AND BALLASTING

1

47502254

BOOM

Outer, LH / RH

2шт.

Left Hand, Viewed From Front, Shown

1шт.

2

84325236

PIN,25.4mm OD x 296mm L

Outer Boom Fold Pivot

2шт.

3

87344036

PIN,9.53mm OD x 54.36mm L

DOR

2шт.

4

80755

COTTER PIN,1/8" OD x 1" L

2шт.

5

BN302051

NIPPLE, LUBE,M8 x 1, Straight

4шт.

6

87706358

HOSE,38.10 mm ID

4шт.

7

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

8шт.

8

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

8шт.

9

47445242

PAD

Boom Protection, Snap-On, 2" x 2" x 4"

4шт.

10

84187821

SCREW,Torx, Pan HD, M4.2 x 1.4 x 19mm

8шт.

11

BN69918

BUSHING

Spring

4шт.

12

47551680

SPACER

7" Long Breakaway

2шт.

Used On 20"/30" Spacing Booms Only

1шт.

13

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

4шт.

Used On 20"/30" Spacing Booms Only

1шт.
