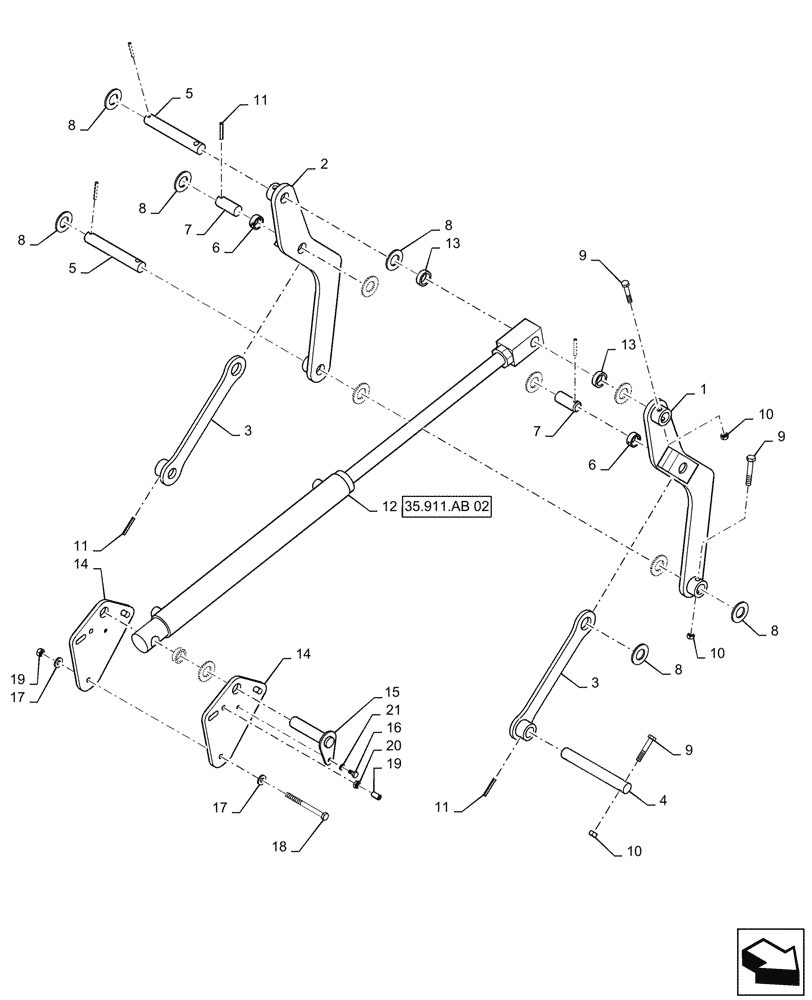

Запчасти Case IH PATRIOT 2250 (39.130.AB[03]) - INNER TO OUTER BOOM, HINGE, 80/90 BOOM (39) - FRAMES AND BALLASTING

1

47370402

LINKAGE

Outer Boom

2шт.

2

47366110

LINKAGE

Outer Boom

2шт.

3

47370479

LINKAGE

Outer Hinge

4шт.

4

47370491

PIN

Hinge Linkage, 1" x 8"

2шт.

5

84325735

PIN

Hinge Linkage, 1" x 7"

4шт.

6

BN69918

BUSHING

Spring

4шт.

7

47384459

PIN

Headed, 1" x 2 1/2"

4шт.

8

BN310130

WASHER

1.03" ID X 2.0"

20шт.

9

87695424

BOLT,Hex, M10 x 60mm, Cl 10.9

DOR

6шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

11

BN52330

PIN, ROLL

1/4" x 1 3/4"

10шт.

12

87655640

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 511.05mm Stroke

Outer Boom Fold

2шт.

See 35.911.AB 02 For Service

1шт.

13

BN311573

SPACER,26.16mm ID x 35.05mm OD x 10.41mm L

Cylinder, Rod End

8шт.

14

47505856

PLATE

Cylinder Mount

4шт.

15

47396059

PIN

Linkage, 1" x 4 3/4"

2шт.

16

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

18

86980412

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

6шт.

19

878-11225

SET SCREW,Hex Skt, M12 x 25mm, Cup Pt

8шт.

20

87344035

NUT

Jam, M12, CL5, DOR

8шт.

21

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.
