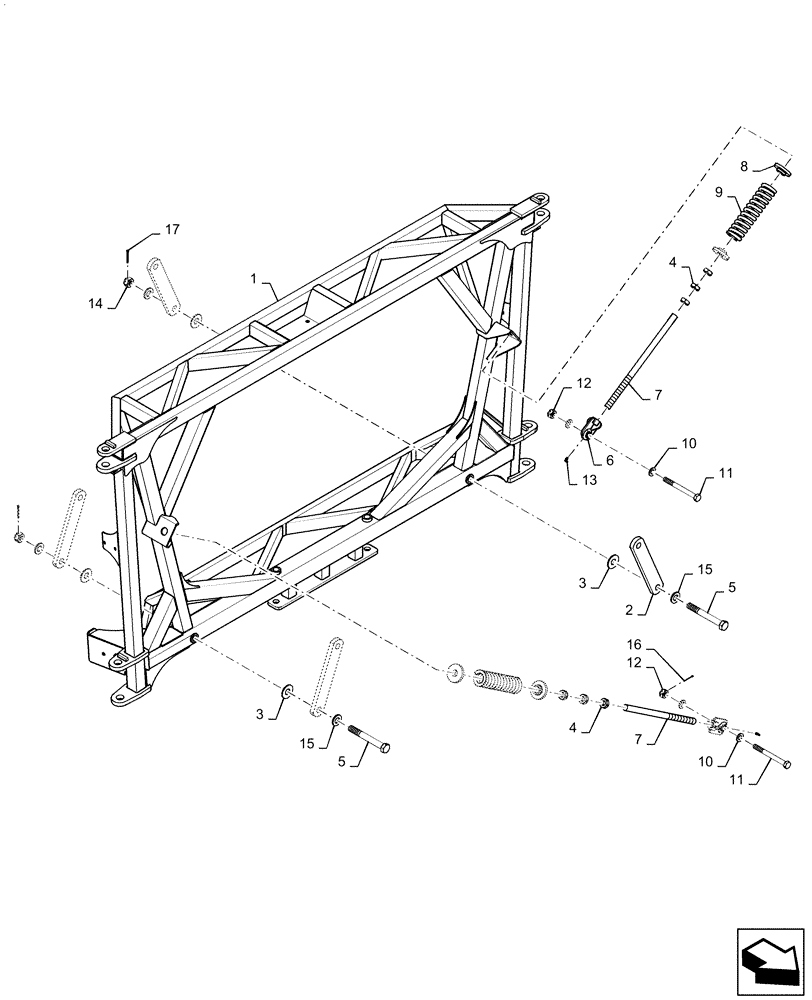

Запчасти Case IH PATRIOT 2250 (39.130.AA[03]) - CENTER SECTION, 80/90 BOOM (39) - FRAMES AND BALLASTING

1

47408832

BOOM

Center Section

1шт.

2

84322988

HANGER

Center Boom

4шт.

3

87529124

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

8шт.

4

87343879

JAM NUT

Hex, 1" - 8, Gr 5, DOR

6шт.

5

47920006

BOLT

Center Section, 1" - 8, Gr 8, DOR

4шт.

6

47459342

ANCHOR

Spring Shaft

2шт.

7

84325901

SHAFT

Spring Guide

2шт.

8

84169493

WASHER

28mm x 80mm, Special

4шт.

9

84195670

SPRING

Boom Compression

2шт.

10

86632591

WASHER,0.81" ID x 1.5" OD x 0.13" Thk

4шт.

11

47920056

BOLT

Center Section, .75" - 10, Gr 8, DOR

2шт.

12

47917717

NUT

Slotted, 1"- 8 Gr 5, DOR

2шт.

13

BN10057

LUBE NIPPLE,1/4"-28 x 90

2шт.

14

87343900

SLOTTED NUT

1" - 8, GR 5, DOR

4шт.

15

87529235

WASHER,1.06" ID x 2" OD x 0.21" Thk

8шт.

16

BN50604

COTTER PIN

.125" x 1.50"

2шт.

17

BN50601

PIN, SPLIT (COTTER)

3/16" x 2

4шт.
