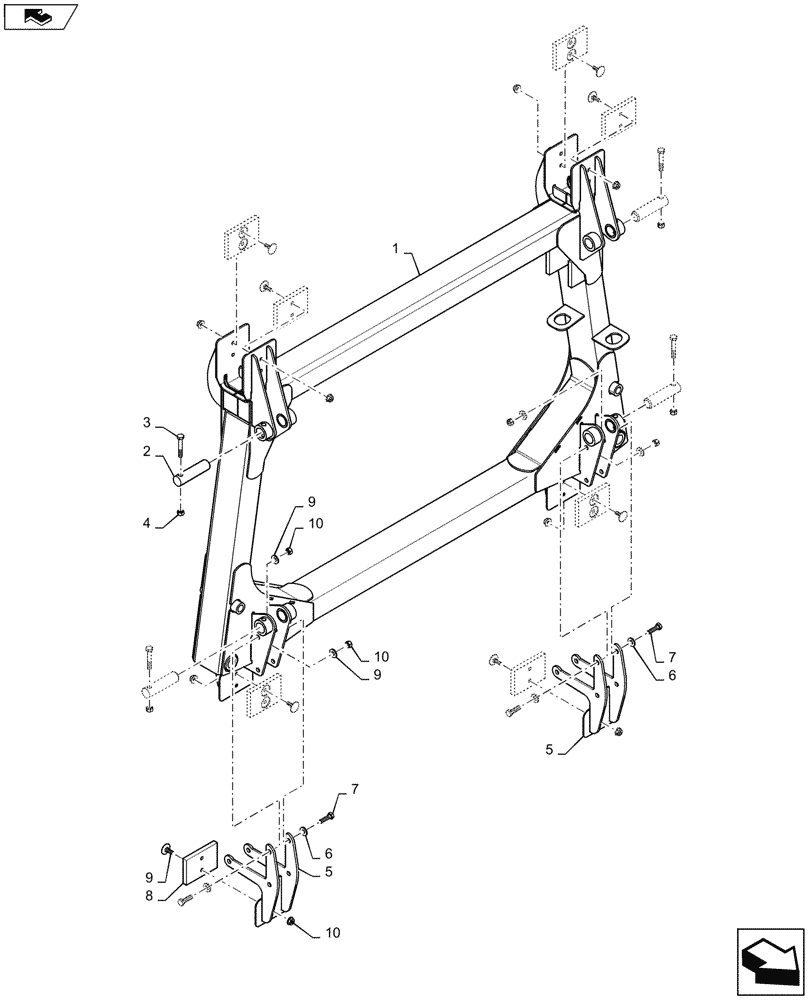

Запчасти Case IH PATRIOT 2250 (39.130.AA[02]) - MAST ASSEMBLY, 80/90 BOOM (39) - FRAMES AND BALLASTING

1

47409507

MAST ASSEMBLY

Boom

1шт.

2

BN307221

PIN

1-1/8" OD x 4-3/8" Long

4шт.

3

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

16шт.

5

47410043

MOUNT

Lower Guide

2шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

24шт.

7

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

12шт.

8

84321992

SHIM

Sliding, Boom

8шт.

9

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

16шт.

10

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

16шт.
