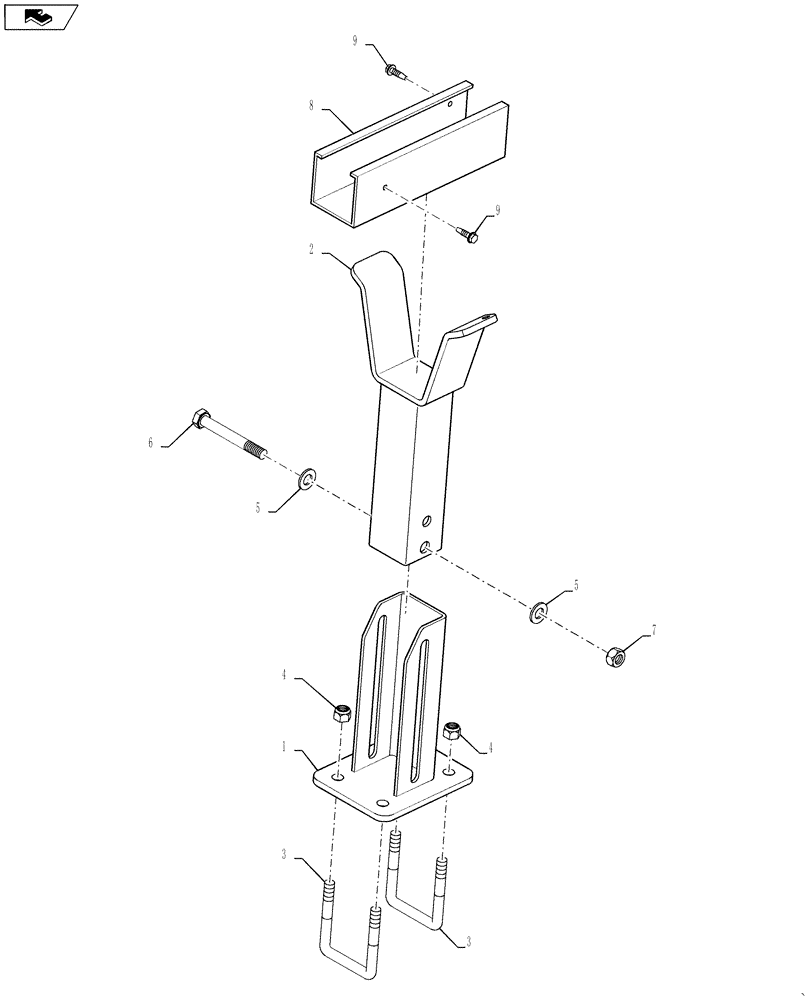

Запчасти Case IH PATRIOT 2250 (39.100.AT[02]) - OUTER BOOM CRADLE, 80 BOOM (39) - FRAMES AND BALLASTING

1

47508865

MOUNT

Lower Cradle

2шт.

2

84303960

CRADLE

Upper

2шт.

3

BN319919

U-BOLT

2.06" ID x 2-3/4" x 3/8"

4шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

5

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

DOR

8шт.

6

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

8

87602661

CHANNEL

Snap-On, 2" x 2" x 8"

2шт.

9

84206102

SCREW,7/8" - 24

Self Drilling

4шт.
