(39.100.AT[01]) - FRAME MOUNTED BOOM CRADLE

Запчасти Case IH PATRIOT 2250 (39.100.AT[01]) - FRAME MOUNTED BOOM CRADLE (39) - FRAMES AND BALLASTING

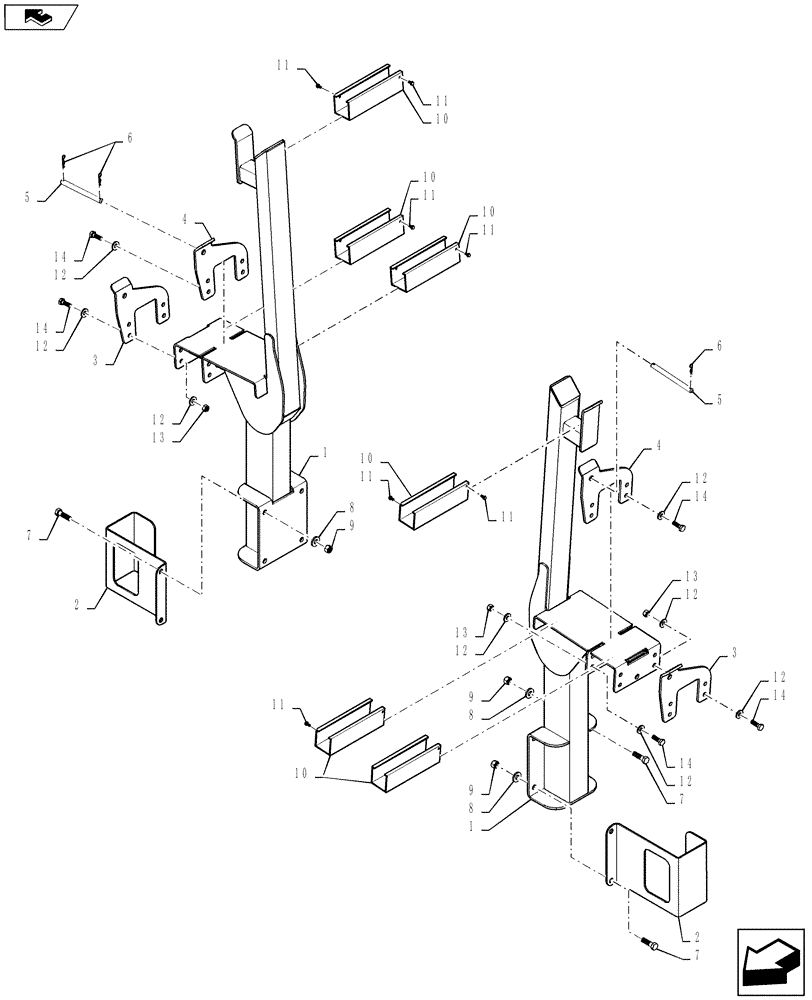

Схема запчастей Case IH PATRIOT 2250 - (39.100.AT[01]) - FRAME MOUNTED BOOM CRADLE (39) - FRAMES AND BALLASTING
10
12
14
2
11
8
1
2
3
12
11
5
7
6
6
10
14
3
8
8
11
9
12
11
12
12
7
13
9
14
12
9
10
12
14
12
13
4
1
11
11
13
4
5
11
7
10
14
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47366122

CRADLE

Inner Boom

2шт.

2

84317929

SUPPORT

Cradle Light

2шт.

3

47540758

GUIDE

LH

2шт.

4

47540756

GUIDE

RH

2шт.

5

47405052

PIN

Boom Lock, 1/2" x 6

2шт.

6

BN71006

COTTER PIN

1/8", #11

4шт.

7

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

8шт.

8

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

DOR

8шт.

9

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

8шт.

10

87602661

CHANNEL

Boom Rest, Snap-On, 2" x 2" x 8"

6шт.

11

84206102

SCREW,7/8" - 24

Self Drilling

12шт.

12

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

32шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

16шт.

14

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

16шт.
