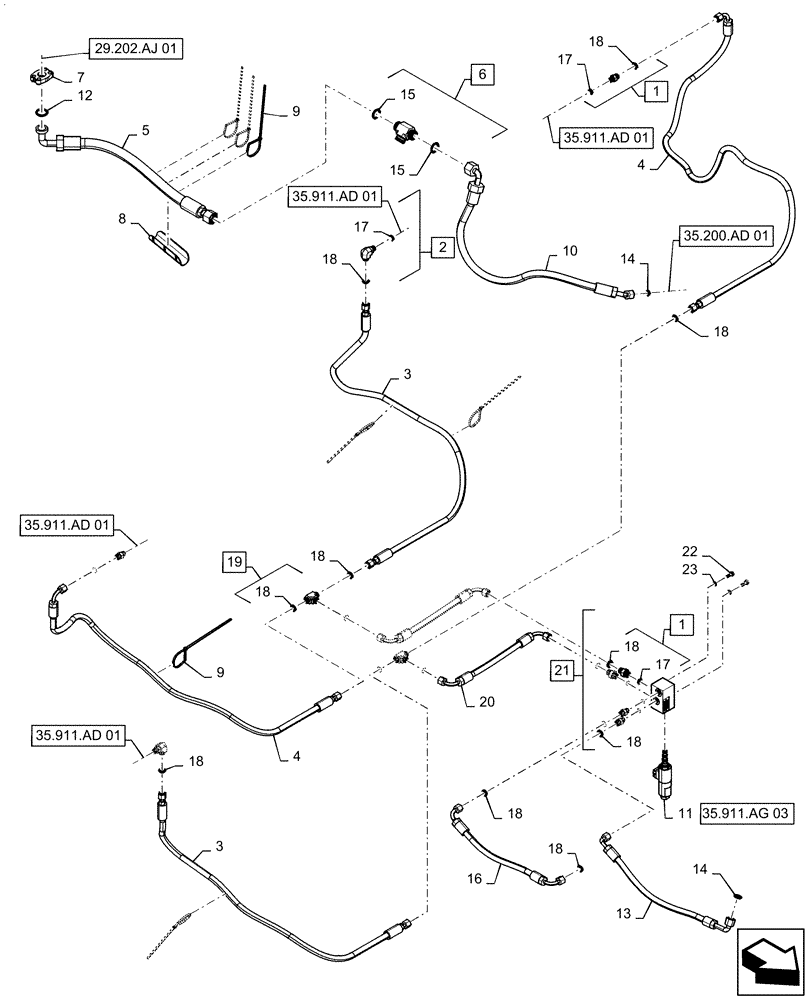

Запчасти Case IH PATRIOT 2250 (35.911.AN[01]) - BOOM HEIGHT LINES (35) - HYDRAULIC SYSTEMS

1

BN302646

FITTING

Straight Connector, -6 ORFS x 9/16 -18 ORB, Incl 17, 18

6шт.

2

BN302553

ELBOW

Connector, -6 ORFS x 9/16 -18 ORB, Incl 17, 18

2шт.

3

84374111

HYDRAULIC HOSE

11/16-16" ORFS Swivel Straight Short x 11/16-16" ORFS Swivel Elbow Medium 3/8" ID x 61 3/4" Long, from Union Tee to Parallel Link Cylinders

2шт.

4

84374113

HYDRAULIC HOSE

11/16-16" ORFS Swivel Straight Short x 11/16-16" ORFS Swivel Straight Short 3/8" ID x 61 3/4" Long, from Union Tee to Parallel Link Cylinders

2шт.

5

47416625

HYDRAULIC HOSE

1 3/16" ORFS Swivel Straight Short x 3/4" Flange Elbow Short x 3/4" ID 25" Long, from Pressure Comp. Pump to Union Tee

1шт.

6

84384818

UNION TEE

1 3/16" -12, ORFS, Incl 15

1шт.

7

BN316600

KIT

3/4" Split Flange

1шт.

8

84606155

PROTECTIVE SLEEVE

Plastic Taco

1шт.

9

BN570007

STRAP

14"

7шт.

10

84377117

HYDRAULIC HOSE

1 3/16-12" ORFS Swivel Short Elbow x 13/16-16" ORFS Female 45 Elbow x 3/8" ID x 14 1/4" Long, from Unoin Tee to Steel Line

1шт.

11

84198497

SOLENOID VALVE

Complete Assembly

1шт.

See 35.911.AG 03 for Service

1шт.

12

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

13

47484402

HYDRAULIC HOSE

11/16-16" ORFS Swivel Elbow Short x 13/16-16 ORFS Swivel Elbow Short x 3/8" ID x 22" Long, from Steel Line to Control Valve

1шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

ORFS

1шт.

15

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

ORFS

3шт.

16

84374118

HYDRAULIC HOSE

11/16-16" ORFS Swivel Elbow Medium x 11/16-16" ORFS Swivel Elbow Medium x 3/8" ID x 16 1/2" Long, from Steel Line Case Drain to Control Valve

1шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

ORB

8шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

ORFS

14шт.

19

BN302512

FITTING

11/16-16" ORFS, Incl 18

2шт.

20

84374116

HYDRAULIC HOSE

11/16-16" ORFS Swivel Elbow Medium x 11/16-16" ORFS Swivel Elbow Medium x 3/8" ID x 15" Long, from Contol Valve to Union Tee

2шт.

21

47656728

VALVE

Control, Parallel Link, Incl 1, 18, 19

1шт.

Used With Manual Axle Adjustment, For Hydraulic Adjusting Axle Valve See 35.911.AG 01

1шт.

22

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

10571774

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

2шт.
