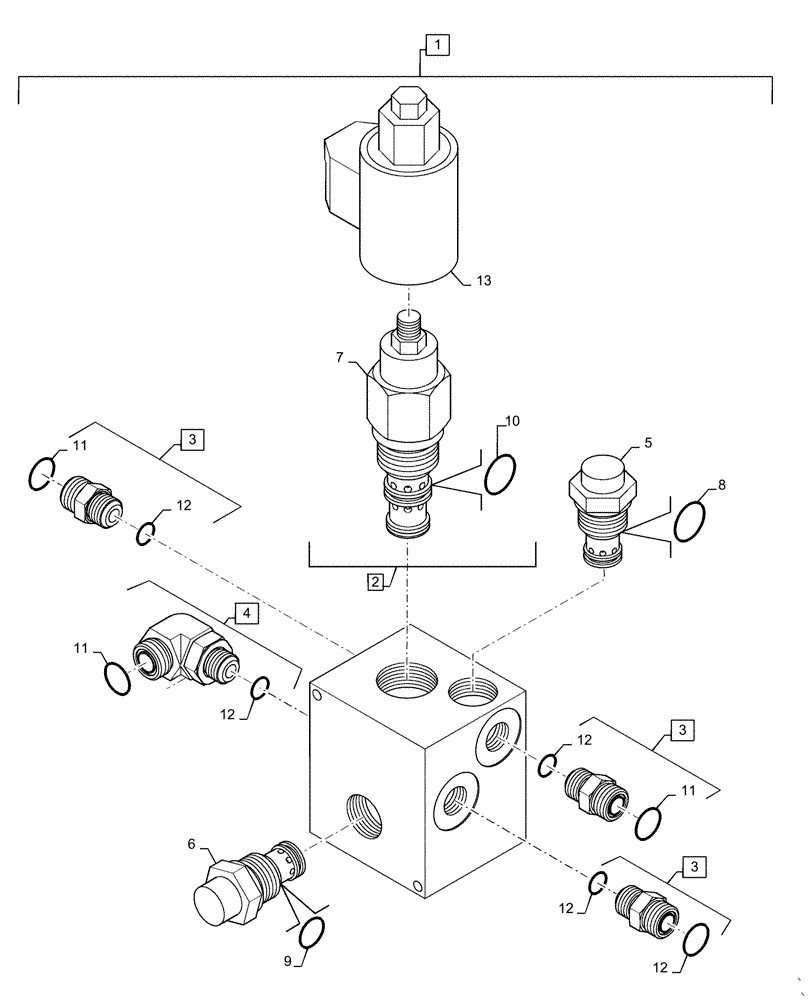

Запчасти Case IH PATRIOT 2250 (35.911.AM[03]) - PRODUCT PUMP, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

84333717

VALVE

Product Pump, Incl 2 - 13

1шт.

2

84401225

FLOW CONTROL VALVE

Complete, Incl 7, 10, 13

1шт.

3

BN302655

FITTING

1 - 3/16" - 12 ORFS x 1 - 1/16" - 12 ORB, Incl 11, 12

3шт.

4

BN302568

ELBOW

1 - 3/16" - 12 ORFS x 1 - 1/16" - 12 ORB, Incl 11, 12

1шт.

5

84401228

CHECK VALVE

Poppet

1шт.

6

84401227

VALVE POPPET

Relief Valve, 3000 PSI

1шт.

7

84401225

FLOW CONTROL VALVE

Proportional, Cartridge Only

1шт.

8

84401250

SEAL KIT

Check Valve, Incl 5

1шт.

9

84401248

SEAL

Relief Valve, Incl 6

1шт.

10

84401247

SEAL KIT

Flow Control Valve, Incl 7

1шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1 - 3/16", ORFS

4шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1 - 1/16", ORB Ends

4шт.

13

84423410

KIT

Coil

1шт.
