(35.911.AM[01]) - AUTOBOOM HYDRAULIC LINES

Запчасти Case IH PATRIOT 2250 (35.911.AM[01]) - AUTOBOOM HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

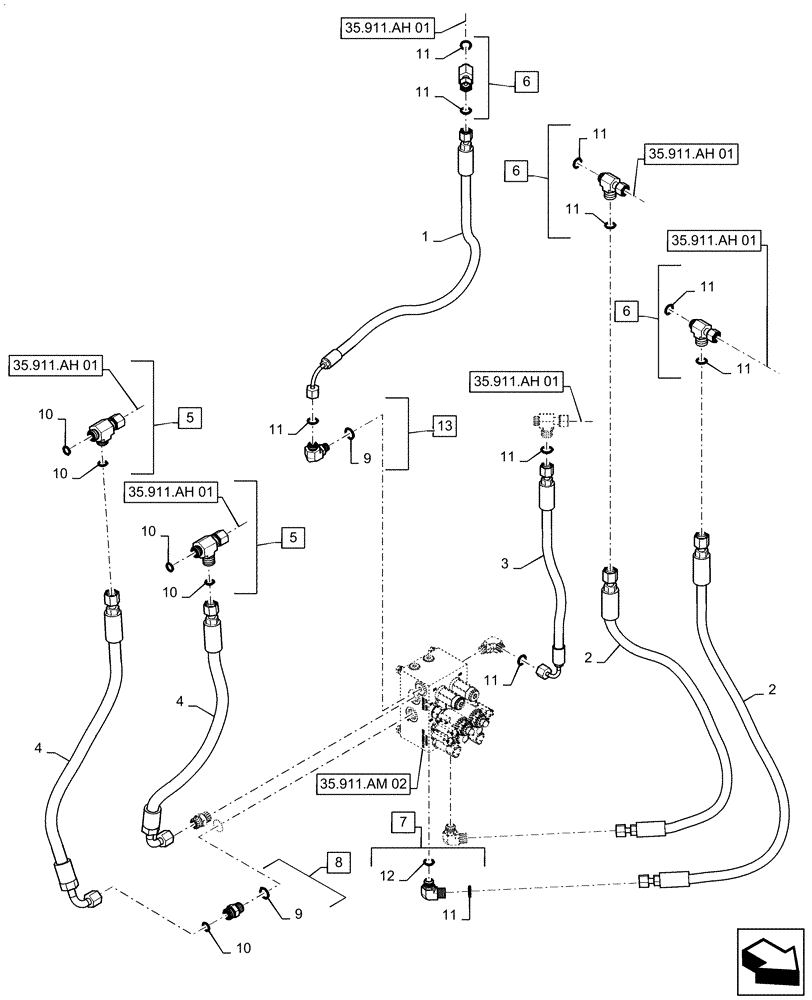

Схема запчастей Case IH PATRIOT 2250 - (35.911.AM[01]) - AUTOBOOM HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS
35.911.am 02
1
11
11
6
11
11
11
8
9
10
11
11
11
9
5
2
2
7
6
10
5
4
10
11
3
11
4
6
10
10
12
13
35.911.ah 01
35.911.ah 01
35.911.ah 01
35.911.ah 01
35.911.ah 01
35.911.ah 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87734446

HOSE

11/16" -16 ORFS Swivel x 11/16" -16 ORFS Swivel Medium Elbow x 3/8" ID x 29" Long, Port A2 Tee, to Valve

1шт.

2

BN307877

HOSE ASSY.

11/16" -16 ORFS Swivel x 11/16" -16 ORFS Swivel x 3/8" ID x 35" Long, Tee to Valve

2шт.

3

87560255

HOSE

11/16" -16 ORFS Swivel x 11/16" -16 ORFS Swivel Medium Elbow x 3/8" ID x 15" Long, Port A5 Tee, to Valve

1шт.

4

BN319017

HOSE

13/16" -16 ORFS Swivel x 13/16" -16 ORFS Swivel Medium Elbow x 1/2" ID x 24" Long, Pressure and Return Port Tees, to Valve

2шт.

5

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel, Incl 10

2шт.

6

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel, Incl 11

4шт.

7

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Incl 11, 12

4шт.

8

BN302650

FITTING

Straight, 13/16-16 ORFS x 3/4-16 ORB, Incl 9, 10

2шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

14шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

13

BN302554

FITTING

90°, 11/16 -16 ORFS x 3/4-16 ORB, Incl 9, 11

2шт.
