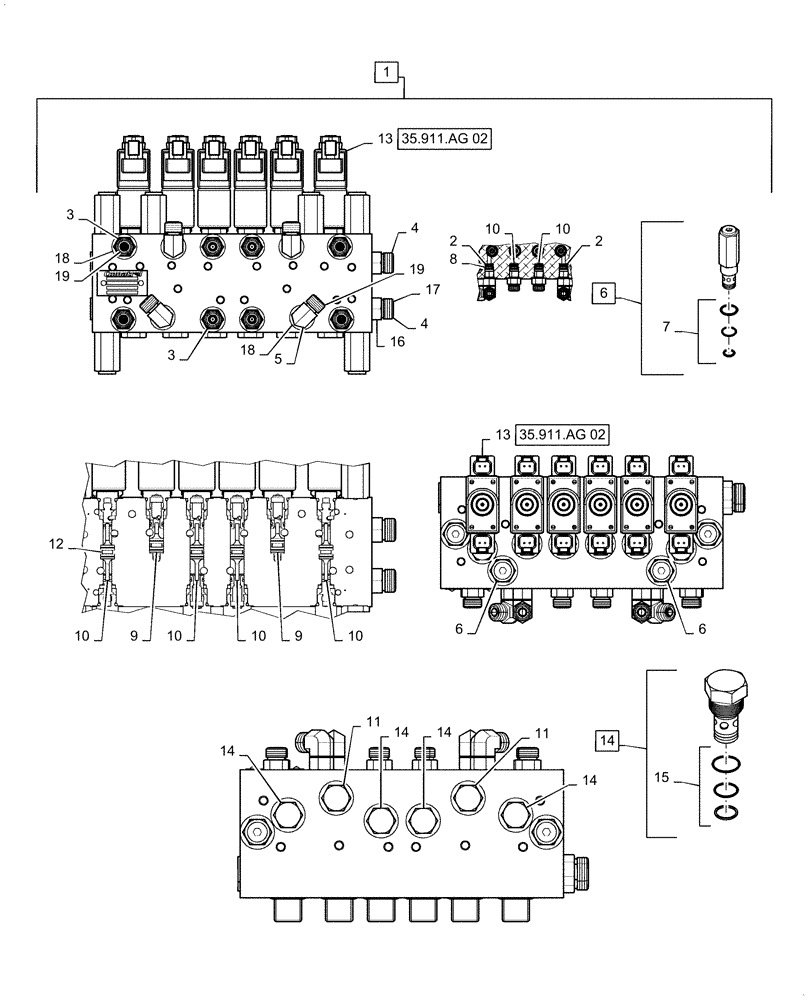

Запчасти Case IH PATRIOT 2250 (35.911.AH[02]) - BOOM, CONTROL VALVE ASSY (35) - HYDRAULIC SYSTEMS

1

47656726

CONTROL VALVE

Assy, Incl 2 - 14

1шт.

2

87758332

ORIFICE

.059", Disk

2шт.

3

BN302646

FITTING

Straight Connector, 11/16 -16 ORFS x 9/16 -18 ORB, Incl 18, 19

8шт.

4

BN302650

FITTING

Straight Connector, -8 ORFS x 3/4 -16 ORB, Incl 16, 17

6шт.

5

BN302553

ELBOW

90°, 11/16 -16 ORFS x 9/16 -18 ORB, Incl 18, 19

4шт.

6

87758329

VALVE

Relief, 200 PSI, Incl 7

4шт.

7

87472226

SEAL KIT

Relief Valve, Included with 6

1шт.

8

87758326

RETAINER

Internal Snap Ring

6шт.

9

87758325

PISTON

Pilot Valve

2шт.

10

87758324

PISTON

.047"

4шт.

11

87758321

ORIFICE

.071", Plug

2шт.

12

87758320

RING

Backup, Teflon

12шт.

13

87758319

SOLENOID VALVE

Complete

6шт.

See 35.911.AG 02 for Service

1шт.

14

87758336

VALVE

Check, Incl 15

10шт.

15

87472226

SEAL KIT

Included with 14

10шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.

17

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

12шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

12шт.
