(35.911.AH[01]) - BOOM CONTROL, HYDRAULIC SYSTEM

Запчасти Case IH PATRIOT 2250 (35.911.AH[01]) - BOOM CONTROL, HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

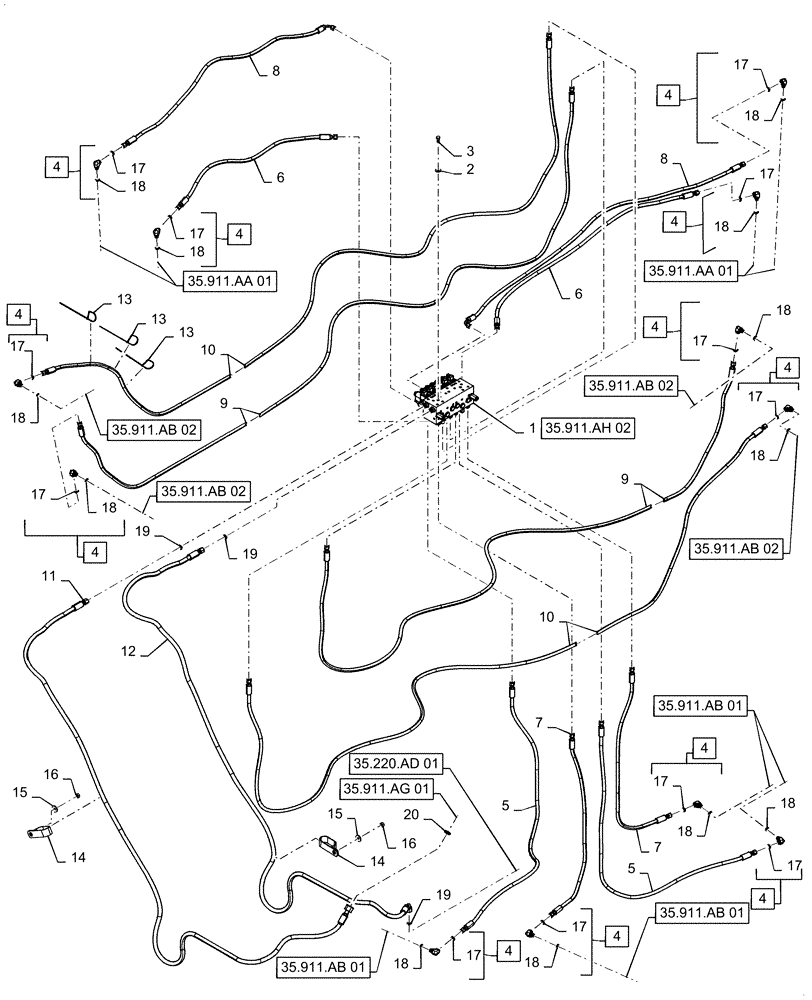

Схема запчастей Case IH PATRIOT 2250 - (35.911.AH[01]) - BOOM CONTROL, HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS
35.911.ag 01
14
19
17
20
17
13
3
4
18
16
7
19
13
18
17
18
4
17
4
12
19
17
18
14
16
7
18
4
9
5
6
18
18
17
8
18
10
4
13
4
18
17
9
4
2
1
6
18
17
5
8
4
4
10
4
18
4
18
17
17
11
17
17
4
15
15
35.220.ad 01
35.911.aa 01
35.911.ab 02
35.911.ab 02
35.911.ab 02
35.911.ab 02
35.911.ah 02
35.911.ab 01
35.911.ab 01
35.911.ab 01
35.911.aa 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47656726

CONTROL VALVE

6 Bank, Complete, with Fittings

1шт.

See 35.911.AH 01 For Service

1шт.

2

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

2шт.

3

86980419

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

4

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Incl 17, 18

12шт.

5

BN307838

HOSE ASSY.

11/16 -16" ORFS Swivel x 11/16 -16 ORFS Swivel x 3/8" ID x 79" Long, Boom Control Valve to Rod End, Inner Boom Fold Cylinders

2шт.

6

BN322524

HOSE

11/16 -16" ORFS Swivel Short Straight x 11/16 -16 ORFS Swivel Short Straight x 3/8" ID x 65" Long, Boom Control Valve to Base End, Boom Level Cylinders

2шт.

7

84331832

HYDRAULIC HOSE

11/16 -16" ORFS Swivel Short Straight x 11/16 -16 ORFS Swivel Short Straight x 3/8" ID x 53" Long, Boom Control Valve to Base End, Inner Boom Fold Cylinders

2шт.

8

84331833

HYDRAULIC HOSE

11/16 -16" ORFS Swivel Short Straight x 11/16 -16 ORFS Swivel Medium Elbow x 3/8" ID x 84" Long, Boom Control Valve to Rod End, Boom Level Cylinders

2шт.

9

84331834

HYDRAULIC HOSE

11/16 -16" ORFS Swivel Short Straight x 11/16 -16 ORFS Swivel Short Straight x 3/8" ID x 376" Long, Boom Control Valve to Base End, Outer Boom Fold Cylinders

2шт.

10

84331835

HYDRAULIC HOSE

11/16 -16" ORFS Swivel Short Straight x 11/16 -16 ORFS Swivel Short Straight x 3/8" ID x 395" Long, Boom Control Valve to Rod End, Outer Boom Fold Cylinder

2шт.

11

84374123

HYDRAULIC HOSE

13/16" -16 ORFS Swivel Short Straight x 1 3/16" -12 ORFS Swivel Short Straight x 1/2" ID x 155" Long, Boom Control Valve to Track Adjustment Tee

1шт.

12

47570423

HOSE ASSY.

13/16" -16 ORFS Swivel Meduim Elbow x 13/16" -16 ORFS Swivel Short Straight x 1/2" ID x 154" Long, Boom Control Valve to Hydraulic Return Line

1шт.

13

BN570007

STRAP

14"

64шт.

14

R54363

CLAMP

Double

2шт.

15

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

16

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

23шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

12шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

20

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
