(35.911.AG[03]) - SOLENOID VALVE, TALL, AXLE / BOOM

Запчасти Case IH PATRIOT 2250 (35.911.AG[03]) - SOLENOID VALVE, TALL, AXLE / BOOM (35) - HYDRAULIC SYSTEMS

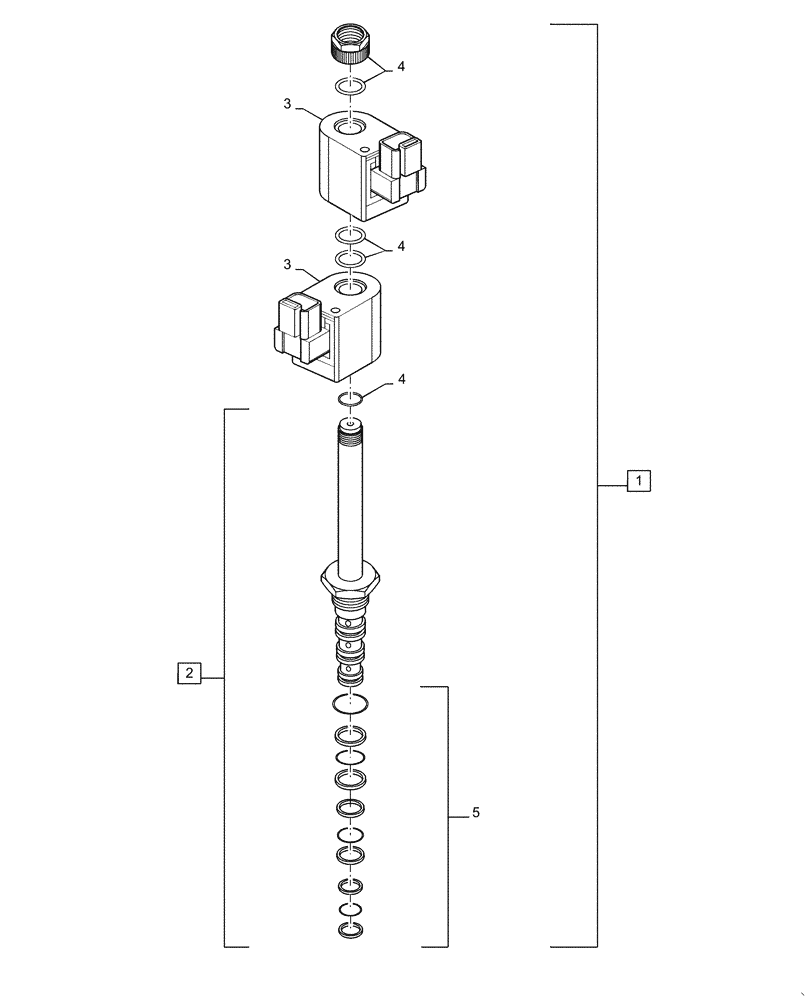

Схема запчастей Case IH PATRIOT 2250 - (35.911.AG[03]) - SOLENOID VALVE, TALL, AXLE / BOOM (35) - HYDRAULIC SYSTEMS
4
5
1
3
4
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84198497

SOLENOID VALVE

Axle Adjustment, Complete, Incl 2 - 5

1шт.

2

84198498

SOLENOID VALVE

Incl 4, 5

1шт.

3

87758994

COIL

12 Volt

2шт.

4

87758995

RETAINER

Nut, with Coil O-rings, Included in 2

1шт.

5

87472228

SEAL KIT

Solenoid, Included in 2

1шт.
