(35.911.AG[02]) - SOLENOID VALVE, SHORT, AXLE / BOOM

Запчасти Case IH PATRIOT 2250 (35.911.AG[02]) - SOLENOID VALVE, SHORT, AXLE / BOOM (35) - HYDRAULIC SYSTEMS

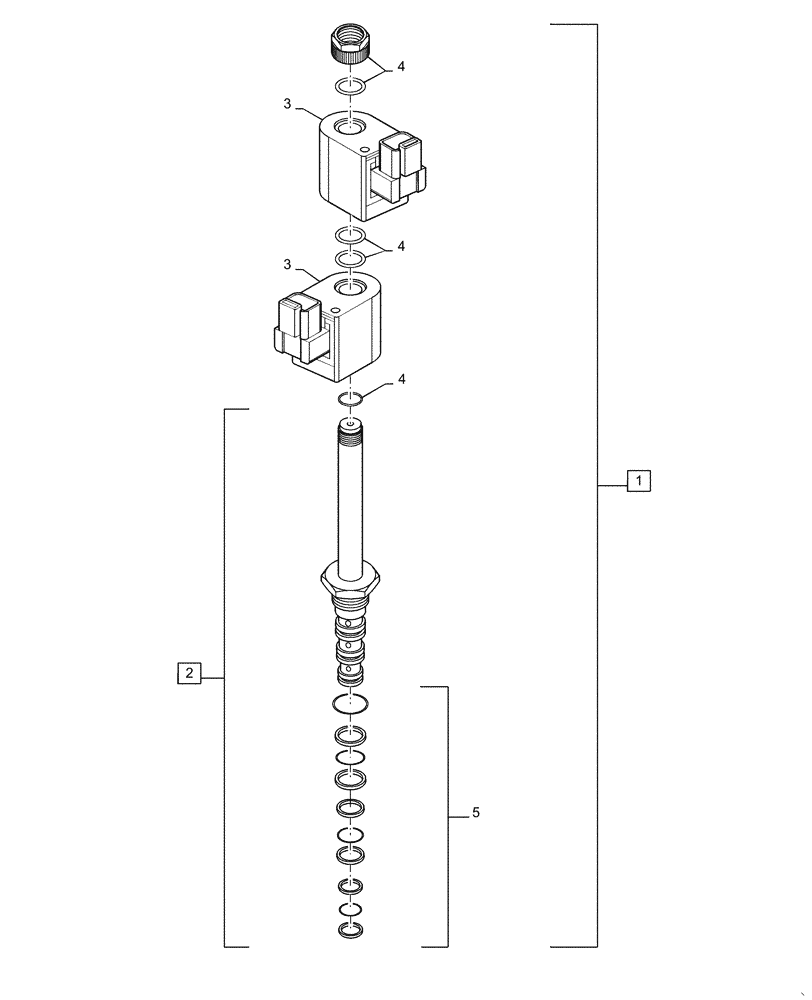

Схема запчастей Case IH PATRIOT 2250 - (35.911.AG[02]) - SOLENOID VALVE, SHORT, AXLE / BOOM (35) - HYDRAULIC SYSTEMS
4
4
5
3
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87758319

SOLENOID VALVE

Complete, Incl 2 - 5

1шт.

2

87758999

VALVE

Incl 4, 5

1шт.

3

87758997

COIL

12 Volt

2шт.

4

87758998

RETAINER

Nut, Coil, with Coil O-rings, Included in 2

1шт.

5

87472227

SEAL KIT

Solenoid, Included in 2

1шт.
