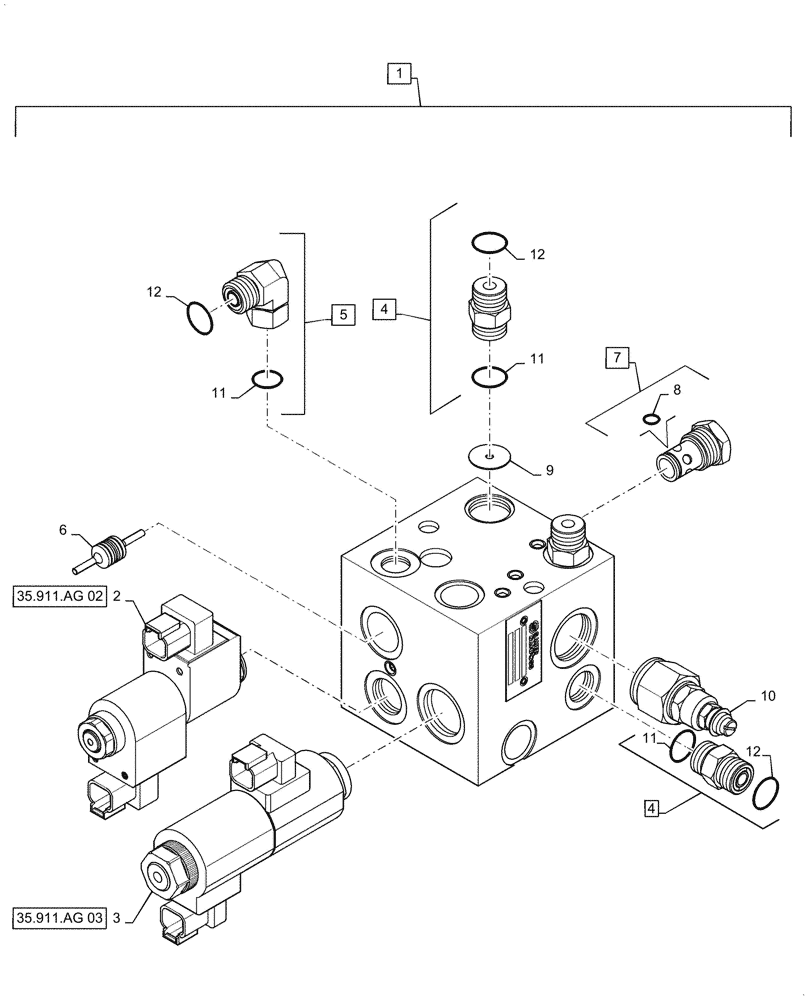

Запчасти Case IH PATRIOT 2250 (35.911.AG[01]) - AXLE ADJUSTMENT, BOOM HEIGHT, CONTROL VALVE ASSY (35) - HYDRAULIC SYSTEMS

1

47527978

CONTROL VALVE

Assy, 2-Bank Valve with Fittings, Axle Adjust, Incl 2 - 12

1шт.

2

87758319

SOLENOID VALVE

Complete

1шт.

See 35.911.AG 02 for Service

1шт.

3

84198497

SOLENOID VALVE

Complete

1шт.

See 35.911.AG 03 for Service

1шт.

4

BN302646

FITTING

Straight, 11/16-16 ORFS x 9/16-18 ORB, Incl 11, 12

5шт.

5

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Incl 11, 12

1шт.

6

87758337

PISTON

Valve

1шт.

7

87758336

VALVE

Check, Incl 8

2шт.

8

87472226

SEAL KIT

Check Valve, Included in 7

1шт.

9

87758323

ORIFICE

.039

1шт.

10

47530838

VALVE

Pressure Adjusting

1шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

6шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

6шт.
