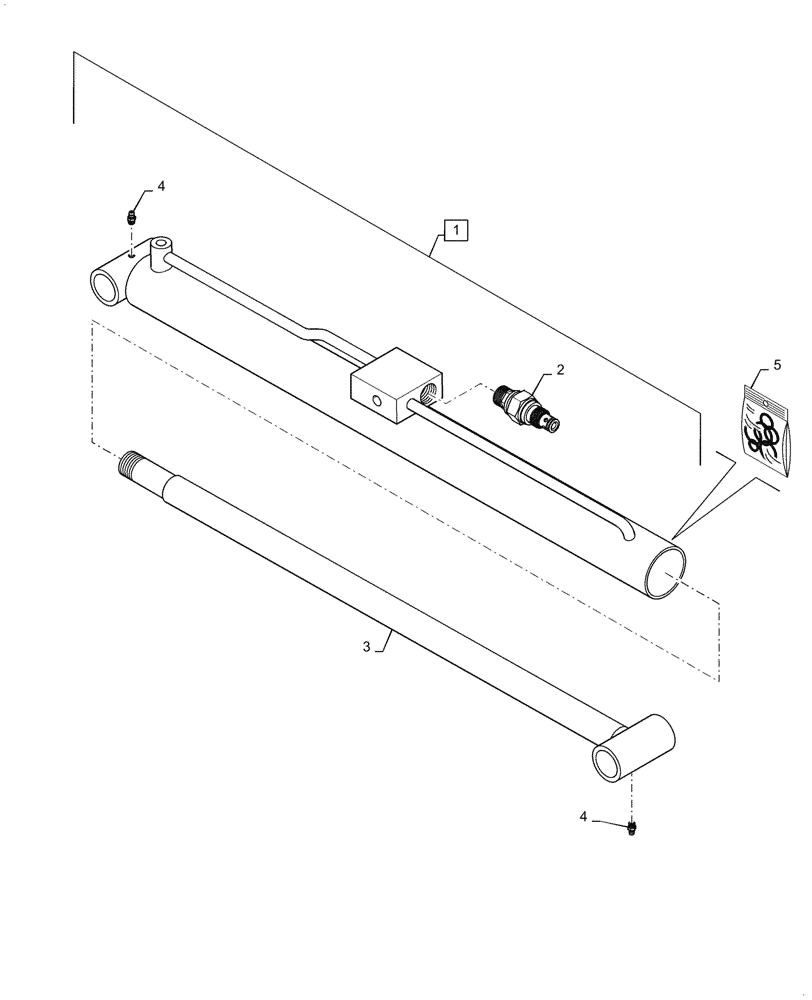

Запчасти Case IH PATRIOT 2250 (35.911.AD[02]) - BOOM LIFT CYLINDER, BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

87267726

CYLINDER,Double Acting, 38.1mm Rod, 723.9mm Stroke

Boom Height, 2-1/2" x 28-1/2" x 1-1/2", Complete, Incl 2 - 4

1шт.

2

87557834

HYDRAULIC VALVE

Counter Balance, 2200 PSI

1шт.

3

87270805

ROD

Boom Height Cylinder

1шт.

4

87563868

FITTING,M8 x 1.17mm

Lube, M8 - 1

2шт.

5

87267939

SEAL KIT

Kit, Boom Height Cylinder

1шт.
