(35.735.AA[03]) - AXLE ADJUSTMENT, HYDRAULIC CYLINDER

Запчасти Case IH PATRIOT 2250 (35.735.AA[03]) - AXLE ADJUSTMENT, HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

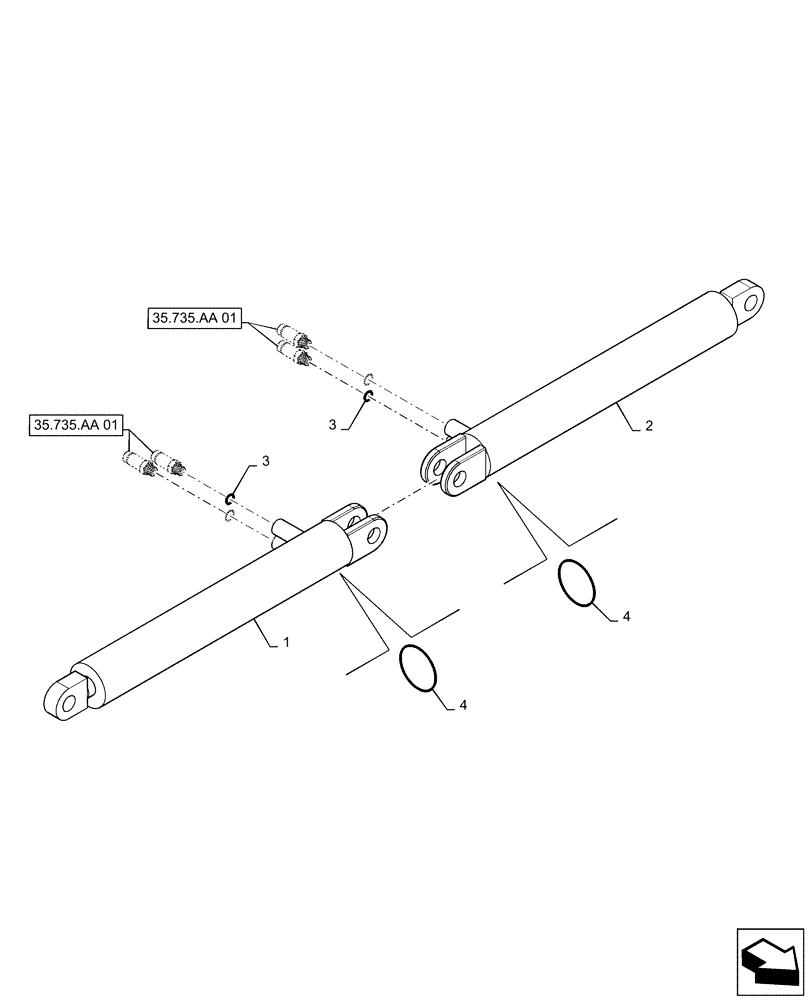

Схема запчастей Case IH PATRIOT 2250 - (35.735.AA[03]) - AXLE ADJUSTMENT, HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS
35.735.aa 01
4
4
3
3
2
1
35.735.aa 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527574

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 397mm Stroke

Axle Adjust 1, Right Front, Left Rear

2шт.

Front Illustrated

1шт.

2

84527575

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 397mm Stroke

Axle Adjust 2, Left Front, Right Rear

2шт.

Front Illustrated

1шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

4

87266795

SEAL KIT

Axle Adjust Cylinders

1шт.

Выбрано товаров: 6
