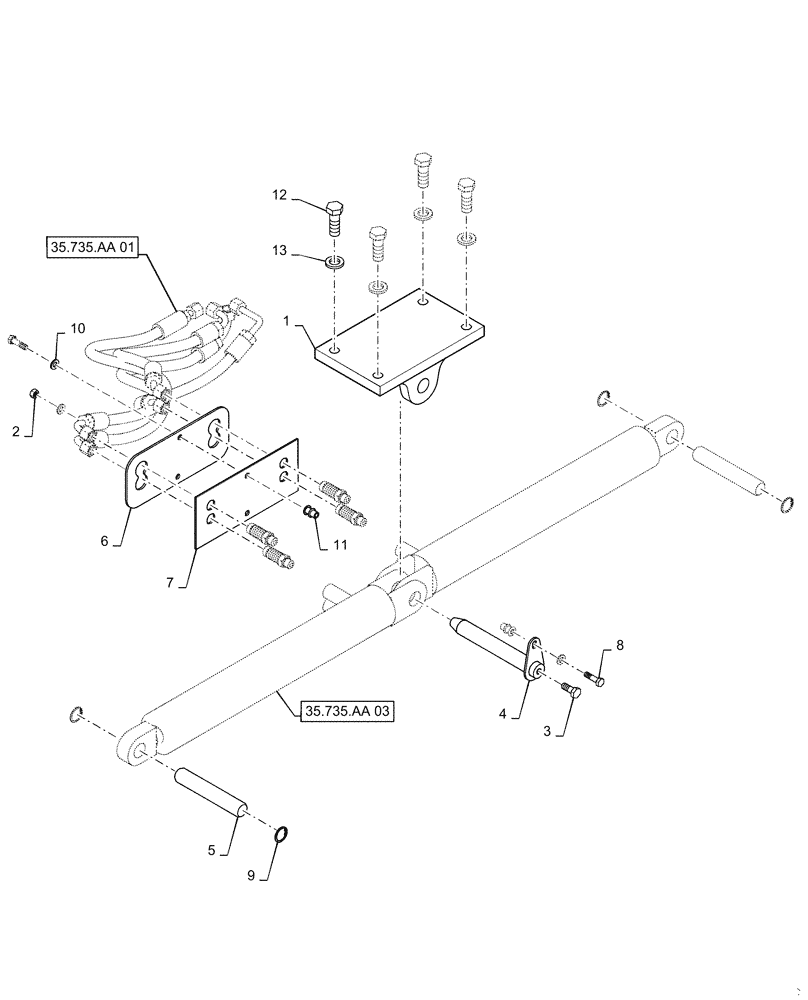

Запчасти Case IH PATRIOT 2250 (35.735.AA[02]) - AXLE ADJUSTMENT, MOUNTING PARTS (35) - HYDRAULIC SYSTEMS

1

84531342

MOUNT

Cylinder

2шт.

2

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

3

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

DOR

2шт.

4

47403248

PIN

Flag

2шт.

5

84311911

PIN,25.4mm OD x 145mm L

Track Adjustment

4шт.

6

84531251

COVER

Track Adjustment

2шт.

7

84531250

GASKET

Track Adjustment

2шт.

8

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

DOR

4шт.

9

800-2126

SNAP RING,M26, Int

8шт.

10

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

DOR

6шт.

11

47471171

THREADED INSERT

M8

4шт.

12

87027232

BOLT,Hex, M16 x 45mm, Cl 10.9, Full Thd

DOR

8шт.

13

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

DOR

8шт.
