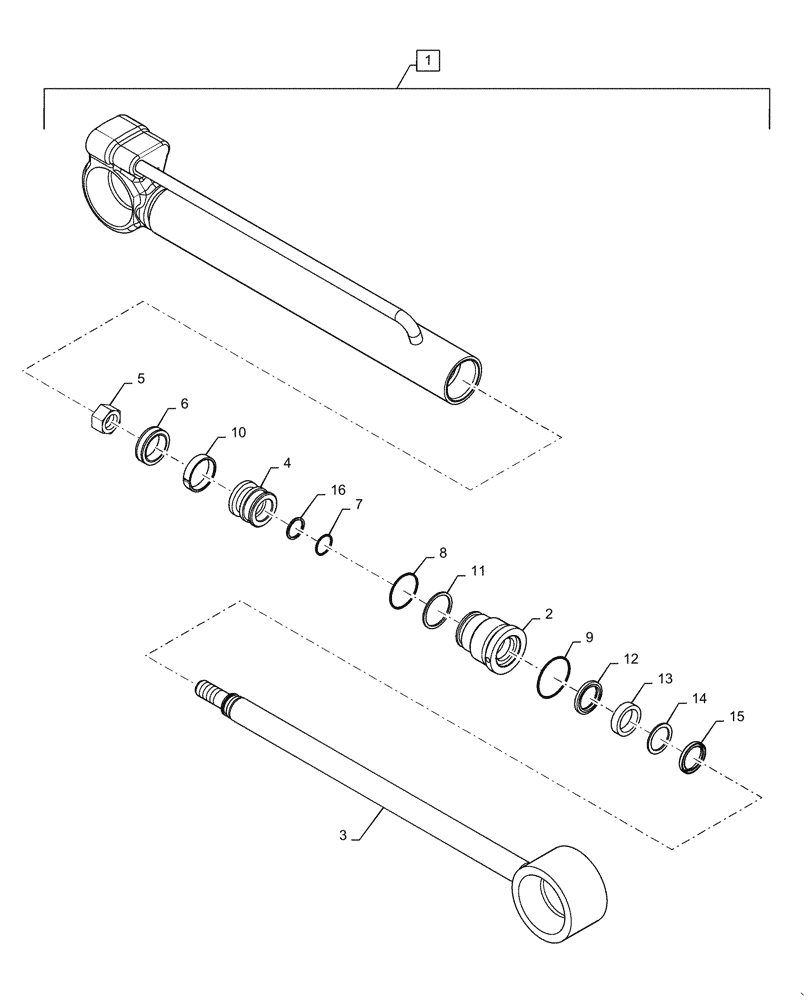

Запчасти Case IH PATRIOT 2250 (35.703.AD[02]) - SUSPENSION CYLINDER (35) - HYDRAULIC SYSTEMS

1

84303124

HYDRAULIC CYLINDER,19.05mm Rod, 254mm Stroke

Suspension Cylinder, Complete, Incl 2 - 16

1шт.

2

84303130

COVER

Cylinder End

1шт.

3

84303138

ROD

Cylinder

1шт.

4

84303134

PISTON

Cylinder

1шт.

5

84303137

NUT

Rod

1шт.

6

84303139

RETAINER

Seal

1шт.

7

165212

O-RING,0.551" ID x 0.691" OD x 0.07"

1шт.

8

272975

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1шт.

9

14458080

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

10

84305649

WEAR RING

Seal

1шт.

11

84305650

RUBBER RING

Cylinder End

1шт.

12

84305651

RETAINER

Rod

1шт.

13

84305652

SEAL PROTECTION

Rod

1шт.

14

84305653

RUBBER RING

Cylinder End

1шт.

15

272471

WIPER SEAL,19.05mm ID x 25.5mm OD x 3.17mm Thk

Rod

1шт.

16

84313539

RUBBER RING

Rod

1шт.
