(35.300.AB[01]) - HYDRAULIC OIL COOLER, AND LINES

Запчасти Case IH PATRIOT 2250 (35.300.AB[01]) - HYDRAULIC OIL COOLER, AND LINES (35) - HYDRAULIC SYSTEMS

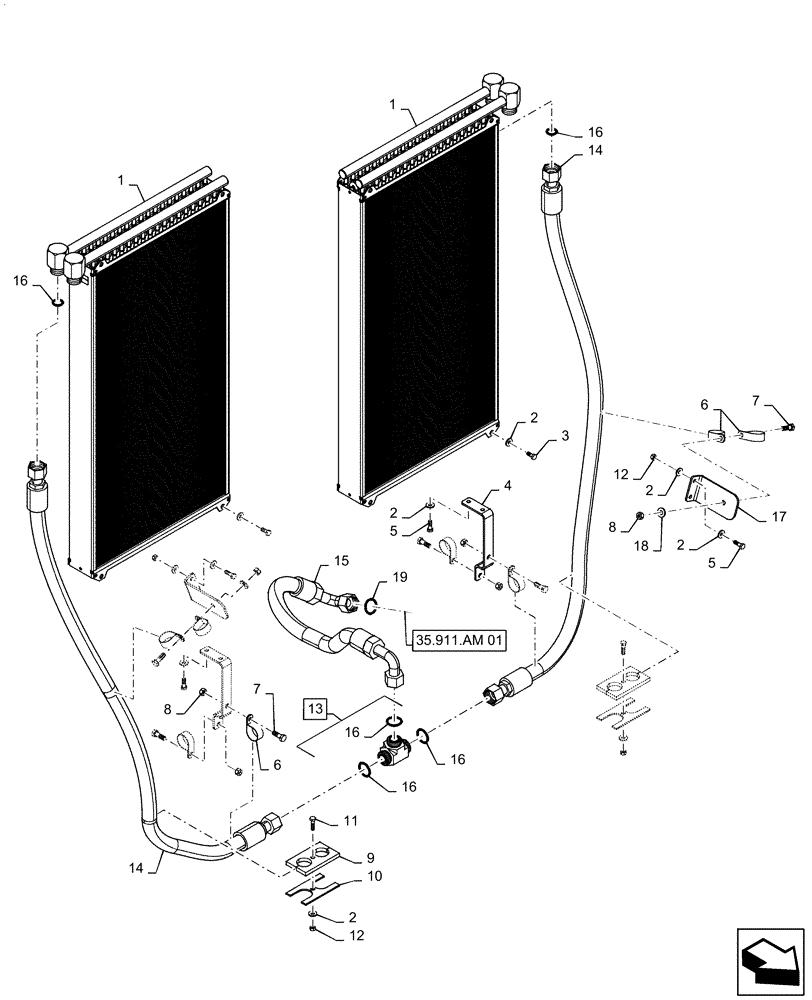

Схема запчастей Case IH PATRIOT 2250 - (35.300.AB[01]) - HYDRAULIC OIL COOLER, AND LINES (35) - HYDRAULIC SYSTEMS
35.911.am 01
16
12
13
7
5
14
8
3
15
7
18
16
8
17
1
2
2
2
14
12
6
9
16
2
4
2
10
6
16
1
16
11
19
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84427916

OIL COOLER

2шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

22шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

4

47687125

SUPPORT

Hose

2шт.

5

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

6

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

8шт.

7

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

9

84603696

SEAL

Hose

2шт.

10

84603693

PLATE

Seal

2шт.

11

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

12

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

13

84485115

UNION TEE

1-7/16-12, ORFS, Incl 16

1шт.

14

84584393

HOSE

1-7/16-12 Female ORFS Swivel Short x 1-7/16-12 Female ORFS Swivel Short x 1" ID x 63" Long, From Cooler to Tee

2шт.

15

47705178

HYDRAULIC HOSE

1-3/16-12 Female ORFS Swivel Short x 1-7/16-12 Female ORFS Swivel Short Elbow x 1" ID x 31" Long, From Tee to Product Control

1шт.

16

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

5шт.

17

47449809

SUPPORT

Hose

2шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

19

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
