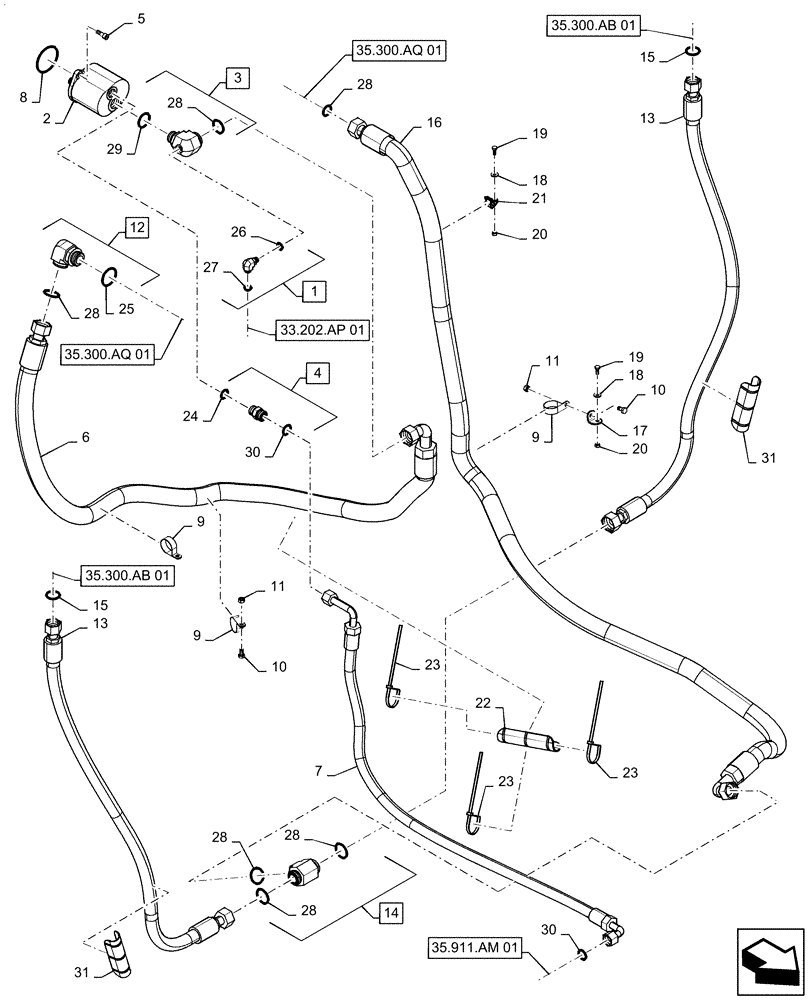

Запчасти Case IH PATRIOT 2250 (35.104.AA[01]) - GEAR PUMP, AND HYDRAULIC LINES TO TANK AND COOLER (35) - HYDRAULIC SYSTEMS

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Incl 26, 27

1шт.

2

84331283

HYDRAULIC PUMP

Gear

1шт.

3

BN313173

ADAPTER

Machined, 1-11/16" -12 ORFS x 1-5/16" -12 ORB x 9/16" -18 ORP, Incl 28, 29

1шт.

4

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Incl 24, 30

1шт.

5

87343636

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 12.9, Full Thd

2шт.

6

84377141

HOSE

1 11/16" - 12 ORFS Swivel Short Elbow x 1 11/16" - 12 ORFS Short Straight x 1 1/4" ID x 79 5/8" Long, From Gear Pump to Hydraulic Tank

1шт.

7

47705194

HYDRAULIC HOSE

1 3/16" - 12 ORFS Swivel Long Elbow x 1 3/16" - 12 ORFS Short Elbow x 3/4" ID x 56" Long, From Gear Pump to Product Pump Valve

1шт.

8

172033

O-RING,2.989" ID x 3.129" OD x 0.07"

Pump

1шт.

9

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

10

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

DOR

2шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

12

BN302577

ELBOW

1-11/16-12 ORFS x 1-5/8-12 ORB, Incl 25, 28

1шт.

13

47705177

HYDRAULIC HOSE

1 7/16" - 12 ORFS Short Straight x 1 11/16" - 12 ORFS Short Straight x 1" ID x 61 1/2" Long, Tee to Oil Cooler

2шт.

14

84485117

UNION TEE

1-11/16, -12 ORFS, Incl 28

1шт.

15

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

16

47705179

HYDRAULIC HOSE

1 11/16" - 12 ORFS Swivel Short Elbow x 1 11/16" - 12 ORFS Short Straight x 1 1/4" ID x 121 5/8" Long, From Gear Pump Tee

1шт.

17

84272701

SUPPORT

Steel Line

1шт.

18

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

19

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

20

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

21

84360210

BASE

Tie

1шт.

22

47629319

PROTECTIVE SLEEVE

Plastic

1шт.

23

BN570007

STRAP

14" Zip Tie

9шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

4шт.

29

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

30

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

31

84606155

PROTECTIVE SLEEVE

Hose

2шт.
