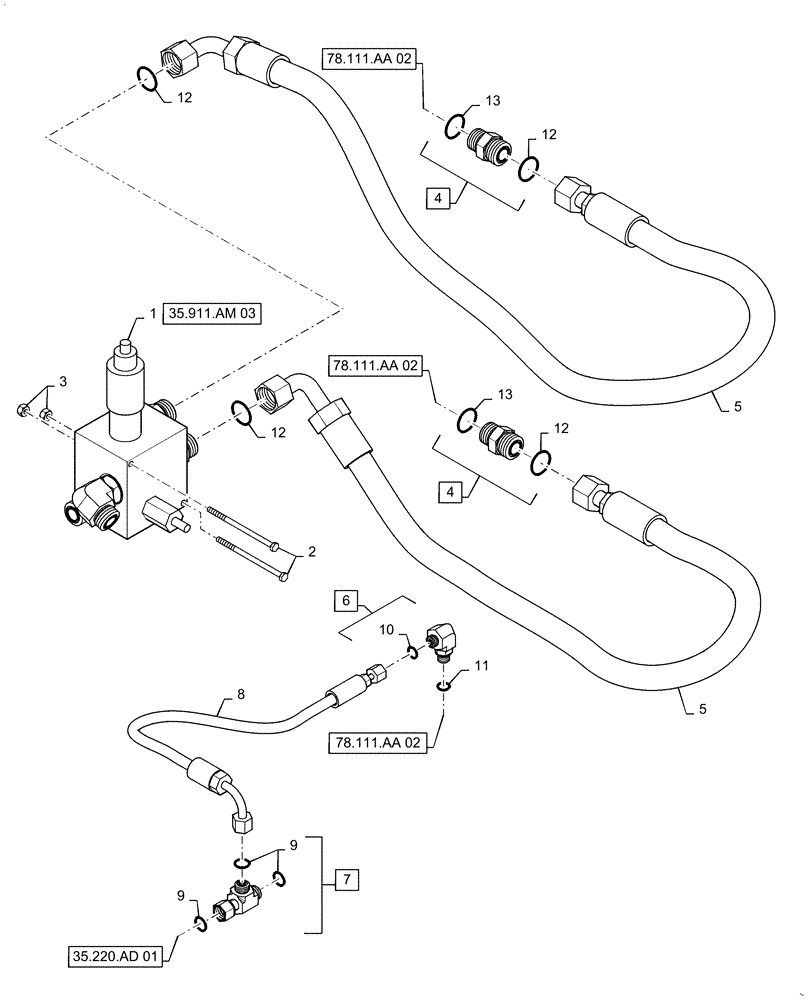

Запчасти Case IH PATRIOT 2250 (35.102.AE[01]) - PRODUCT PUMP CONTROL VALVE ASSY (35) - HYDRAULIC SYSTEMS

1

84333717

VALVE

Assy, with Fitttings

1шт.

See 35.911.AM 03 for Service

1шт.

2

86980371

BOLT,Hex, M6 x 110mm, Cl 8.8

2шт.

3

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

4

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Incl 12, 13

2шт.

5

87271550

HOSE

1 3/16" - 12 ORFS Swivel Short Straight x 1 3/16" - 12 ORFS Swivel Short Elbow x 3/4" ID x 45" Long, Control Valve to Product Pump Hyd Motor

2шт.

6

BN302549

ELBOW

9/16-18 ORFS x 9/16-18 ORB, Incl 10, 11

1шт.

7

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel, Incl 9

1шт.

8

BN309759

HOSE

11/16" - 16 ORFS Swivel Medium Elbow x 9/16" - 18 ORFS Swivel Straight x 1/4" ID x 22 1/2" Long, Steel Lines to Product Pump Hyd Motor

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.
