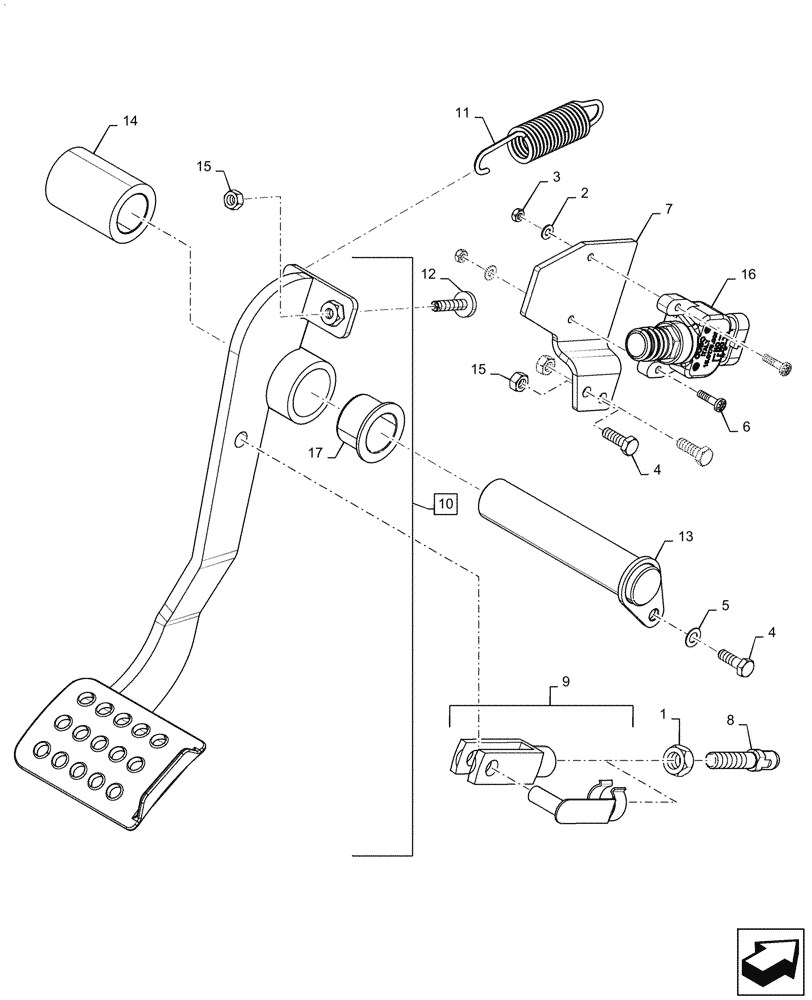

Запчасти Case IH PATRIOT 2250 (33.202.BN[01]) - FOOT BRAKE ASSY. (33) - BRAKES & CONTROLS

1

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

2

10519201

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

3

10794011

NUT,M4, Cl 8

2шт.

4

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

3шт.

5

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

6

13272211

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

2шт.

7

47411641

BRACKET

Switch Mounting

1шт.

8

47615335

ROD

Threaded Brake

1шт.

9

47615336

CLEVIS

Incl Clip/Pin

1шт.

10

47660003

PEDAL

Assembly, Brake, Incl 17

1шт.

11

81863741

SPRING

Return

1шт.

12

84280664

SCREW,M6 x 26mm L

Regulator

1шт.

13

84390435

ROD

Pivot

1шт.

14

84393203

BUSHING

Pivot

1шт.

15

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

16

87484878

LIMIT SWITCH

Brake

1шт.

17

5097550

BUSHING,25.4mm ID x 38mm OD x 22mm L

Pedal

2шт.
