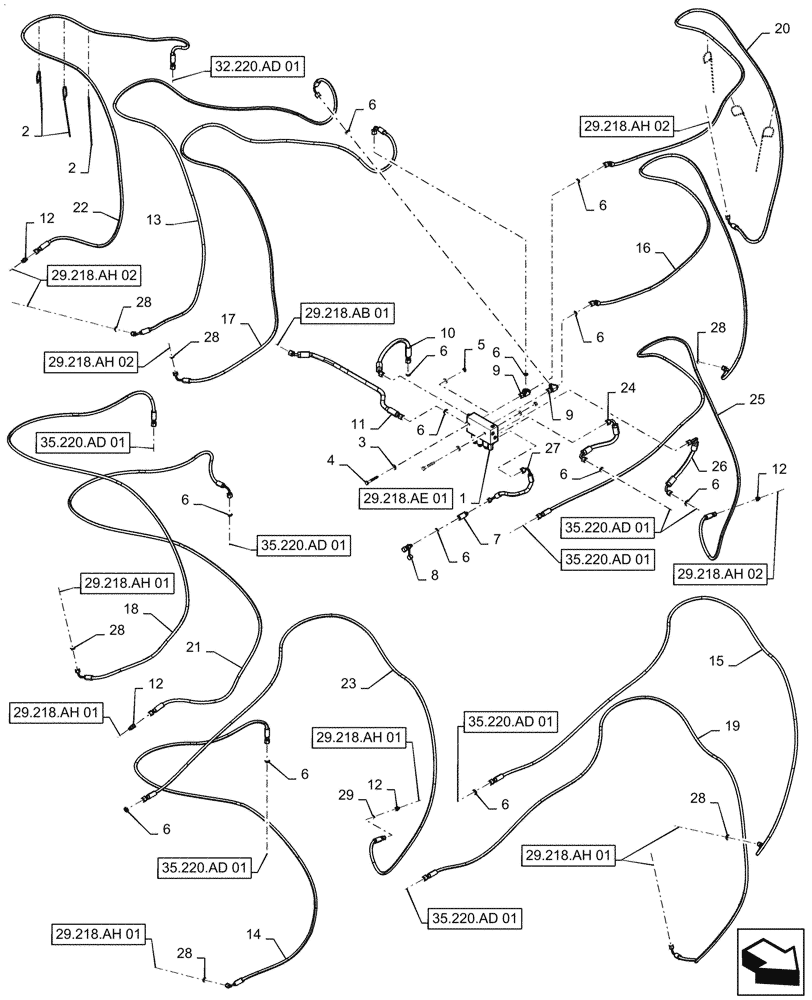

Запчасти Case IH PATRIOT 2250 (29.218.AS[03]) - WHEEL MOTOR CONTROL AND PARKING BRAKE LINES (29) - HYDROSTATIC DRIVE

1

47656727

CONTROL VALVE

Complete, W/ Fittings

1шт.

2

BN570007

STRAP

14" Zip Tie

7шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

DOR

4шт.

4

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

DOR

2шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

ORFS

21шт.

7

BN307992

COUPLING

Diagnostic, 1/4-18 NPT

1шт.

8

BN307993

NIPPLE, LUBE

Diagnostic, 3/8"

1шт.

9

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel Incl 6

2шт.

10

84367844

HOSE

11/16" -16 ORFS Swivel Long Elbow x 11/16" -16 ORFS Swivel Short Straight, 3/8" ID x 21", From Steel Line to Control Valve

1шт.

11

47705195

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short 45 x 11/16" -16 ORFS Swivel Short Straight, 3/8" ID x 33 1/2", From Hyd. Filter to Control Valve

1шт.

12

BN305432

ADAPTER

Straight Fitting, 9/16 -18 ORFS x M12 x 1.2 ORB, Incl 28, 29

4шт.

13

84373476

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Medium Elbow x 9/16" -18 ORFS Swivel Short 45, 1/4" ID x 144", From Right Rear Wheel Motor to Control Valve

1шт.

14

84373477

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Straight x 9/16" -18 ORFS Swivel Short 45, 1/4" ID x 136", From Right Front Wheel Motor to Steel Line

1шт.

15

84373478

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Straight x 9/16" -18 ORFS Swivel Short 45, 1/4" ID x 166", From Left Front Wheel Motor to Steel Line

1шт.

16

84373479

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short 45 x 9/16" -18 ORFS Swivel Short 45, 1/4" ID x 163", From Left Rear Wheel Motor to Control Valve

1шт.

17

84373480

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Medium Elbow x 9/16" -18 ORFS Swivel Medium Elbow, 1/4" ID x 158", From Right Rear Wheel Motor to Control Valve

1шт.

18

84373481

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Straight x 9/16" -18 ORFS Swivel Medium Elbow, 1/4" ID x 146", From Right Front Wheel Motor to Steel Line

1шт.

19

84378299

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Straight x 9/16" -18 ORFS Swivel Medium Elbow, 1/4" ID x 176", From Left Front Wheel Motor to Steel Line

1шт.

20

84373484

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short 45 x 9/16" -18 ORFS Swivel Medium Elbow, 1/4" ID x 169", From Left Rear Wheel Motor to Control Valve

1шт.

21

84373486

HYDRAULIC HOSE

9/16" -18 ORFS Swivel Short Elbow x 11/16" -16 ORFS Swivel Medium Elbow x 1/4" ID x 141", From Right Front Wheel Hub to Steel Line

1шт.

22

84374684

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Straight x 9/16" -18 ORFS Swivel Short Straight x 1/4" ID x 154 3/4", From Right Rear Wheel Hub to Steel Line

1шт.

23

84373489

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Straight x 9/16" -18 ORFS Swivel Short Straight x 1/4" ID x 170", From Left Front Wheel Hub to Steel Line

1шт.

24

47591118

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Elbow x 11/16" -16 ORFS Swivel Short Elbow, 3/8" ID x 14 1/2", From Steel Line to Control Valve

1шт.

25

84373493

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Straight x 9/16" -18 ORFS Swivel Short Straight x 1/4" ID x 174", From Right Rear Wheel Hub to Steel Line

1шт.

26

47591119

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Long Elbow x 11/16" -16 ORFS Swivel Short Elbow, 3/8" ID x 16 1/2", From Steel Line to Control Valve

1шт.

27

84373499

HYDRAULIC HOSE

1/4" -18 Fixed Female Pipe Thread Straight x 11/16" -16 ORFS Swivel Medium Elbow x 1/4" ID x 16", From Wheel Motor Control Valve to Diagnostic Coupling

1шт.

28

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

ORFS

16шт.

29

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

ORB

4шт.
