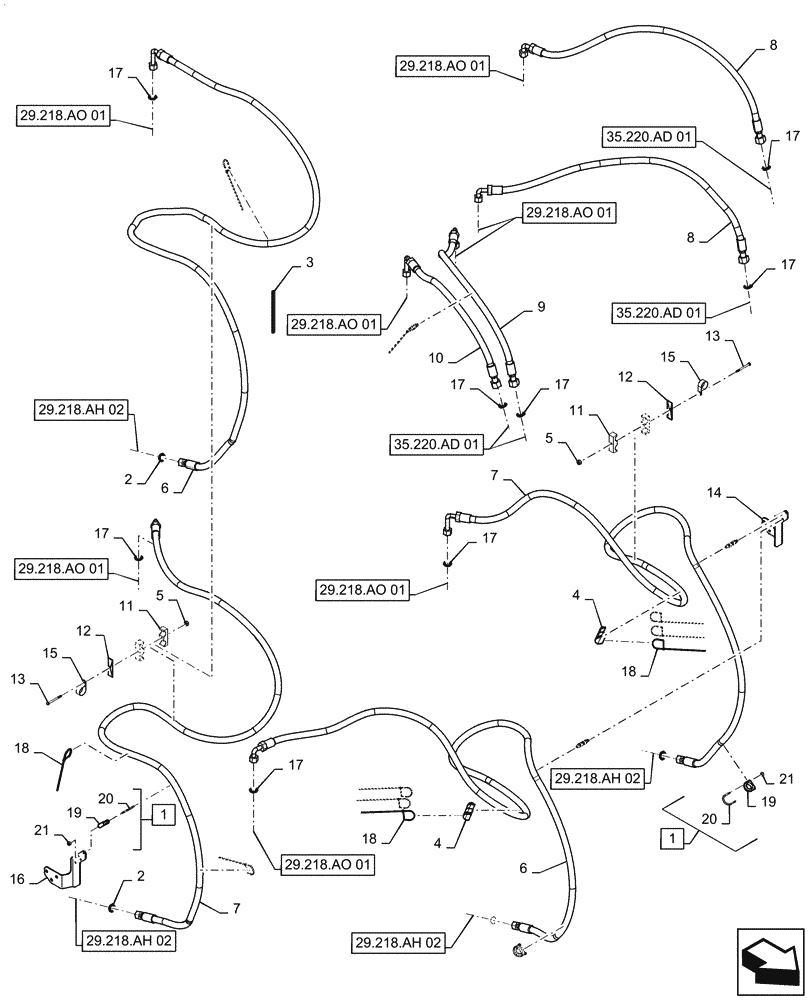

Запчасти Case IH PATRIOT 2250 (29.218.AS[02]) - REAR, HYDRAULIC DRIVE LINES (29) - HYDROSTATIC DRIVE

1

47618436

CLAMP

1", Incl 19 -21

6шт.

2

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

ORFS

11шт.

3

47704823

TRIM

Edge, Bulk

1шт.

4

84606155

PROTECTIVE SLEEVE

Plastic, Taco

4шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

6

47705184

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel Straight Short x 1-7/16" -12 ORFS Swivel Short Elbow, 3/4" ID x 189 1/4", from Hydrostats to Rear Wheel Motors Port A

2шт.

7

47705183

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel Straight Short x 1-7/16" -12 ORFS Swivel Long Elbow, 3/4" ID x 192", from Hydrostats to Rear Wheel Motors Port B

2шт.

8

47705185

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Straight Short x 1-3/16" -12 ORFS Swivel Short Elbow, 3/4" ID x 67 3/4" from Hydrostats to LH, Steel Lines

2шт.

9

47705181

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Straight Short x 1-3/16" -12 ORFS Swivel Long Elbow, 3/4" ID x 67 3/4" from RH, Hydrostat to RH, Steel Line A2

1шт.

10

47705182

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Straight Short x 1-3/16" -12 ORFS Swivel Long Elbow, 3/4" ID x 44" from RH, Hydrostat to RH, Steel Line B2

1шт.

11

BN309849

CLAMP

Dual Tube

2шт.

12

1324469C1

PLATE

Hose Clamp

2шт.

13

86980389

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

DOR

2шт.

14

84369312

SUPPORT

LH, Rear Hose

1шт.

15

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

2шт.

16

84369316

SUPPORT

RH, Rear Hose

1шт.

17

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ORFS

7шт.

18

BN570007

STRAP

14"

27шт.

19

BN320370

INSERT

1"

6шт.

20

47618437

U-BOLT

1/4" -20

6шт.

21

BN320369

NUT

1/4" -20, DOR

12шт.
