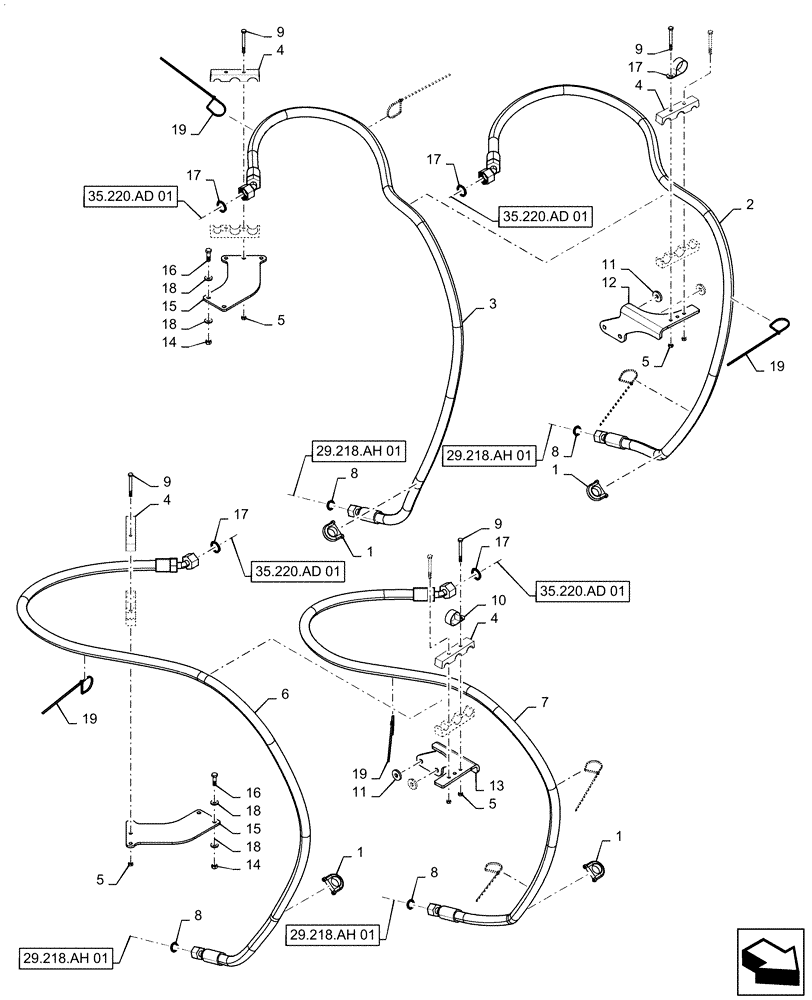

Запчасти Case IH PATRIOT 2250 (29.218.AS[01]) - FRONT, HYDRAULIC DRIVE LINES (29) - HYDROSTATIC DRIVE

1

47618436

CLAMP

4шт.

2

47750246

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel Straight Short x 1-7/16" -12 ORFS Swivel Short 45, 3/4" ID x 105 3/8", From LH, Steel Line A1, to LH, Front Wheel Motor Port A

1шт.

3

47750248

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel Straight Short x 1-7/16" -12 ORFS Swivel Short 45, 3/4" ID x 111 1/4", From LH, Steel Line B1, to LH, Front Wheel Motor Port B

1шт.

4

47407455

CLAMP

3 Tube

4шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

8шт.

6

47657722

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel Straight Short x 1-7/16" -12 ORFS Swivel Short 45, 3/4" ID x 113 3/8", From RH, Steel Line B2, to RH, Front Wheel Motor Port B

1шт.

7

47657721

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel Straight Short x 1-7/16" -12 ORFS Swivel Short 45, 3/4" ID x 105 3/8", From RH, Steel Line A2, to RH, Front Wheel Motor Port A

1шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

ORFS

4шт.

9

86980388

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

DOR

8шт.

10

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

2шт.

11

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

4шт.

12

47409484

MOUNT

LH, Front Hose

1шт.

13

47410466

MOUNT

RH, Front Hose

1шт.

14

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

15

47407771

MOUNT

Front Hose

2шт.

16

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

DOR

4шт.

17

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ORFS

4шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

DOR

8шт.

19

BN570007

STRAP

14"

10шт.
