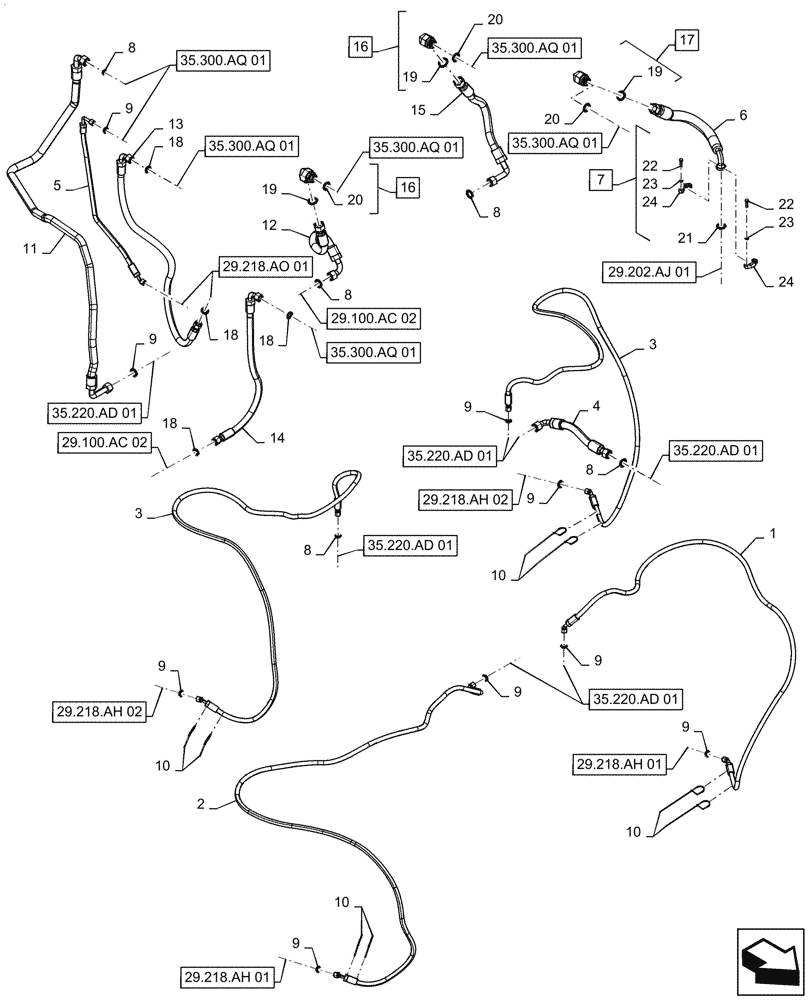

Запчасти Case IH PATRIOT 2250 (29.218.AO[02]) - CASE DRAIN LINES (29) - HYDROSTATIC DRIVE

1

84368106

HYDRAULIC HOSE

13/16" -16 ORFS Swivel Short 45 x 13/16" -16 ORFS Swivel Short 45, 1/2" ID x 132 3/8", from Steel Lines to Front Left Wheel Motors

1шт.

2

84376507

HYDRAULIC HOSE

13/16" -16 ORFS Swivel Medium Elbow x 13/16" -16 ORFS Swivel Short 45, 1/2" ID x 172 3/4", from Steel Lines to Front Right Wheel Motors

1шт.

3

84368109

HYDRAULIC HOSE

13/16" -16 ORFS Swivel Short Straight x 13/16" -16 ORFS Swivel Short 45, 1/2" ID x 153", from Cross Steel Line to Rear Wheel Motors

2шт.

4

84368110

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Short Straight x 1-7/16" -12 ORFS Swivel Short Elbow, 1" ID x 18 1/2", from Cross Steel Line to Steel Line

1шт.

5

47705189

HYDRAULIC HOSE

13/16" -16 ORFS Swivel Short 45 x 13/16" -16 ORFS Swivel Long Elbow, 1/2" ID x 42", from Hyd Reservoir to Pressure Comp Pump

1шт.

6

47666181

HYDRAULIC HOSE

1-11/16" -12 ORFS Swivel Short Straight x 1 1/4" Code 61 Flange Short Elbow, 1 1/4" ID x 21 1/2" Long, from Hyd Reservoir to Pressure Comp Pump

1шт.

7

BN316599

REPAIR KIT

Code 61 Split Flange, Incl 21 - 24

1шт.

Incl 2 Clamps, 70921117, 4 Bolts, 9637916, 4 Lock Washers, 92-11044, 1 O Ring, 235757

1шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

5шт.

9

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

10

BN570007

STRAP

14"

8шт.

11

47705180

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Short Elbow x 1-7/16" -12 ORFS Swivel Long Elbow, 1" ID x 92 1/4" Long, from Cross Steel Line to Reservoir

1шт.

12

47705190

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Medium Elbow x 1-11/16" -12 ORFS Swivel Short Straight, 1" ID x 27" Long, from Hyd Reservoir to Rear Hydro

1шт.

13

47666224

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel Short Straight x 1-3/16" -12 ORFS Swivel Medium Elbow, 3/4" ID x 54" Long, from Hyd Reservoir to Front Hydro

1шт.

14

47666229

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel Short Straight x 1-3/16" -12 ORFS Swivel Medium Elbow, 3/4" ID x 38" Long, from Hyd Reservoir to Rear Hydro

1шт.

15

47710325

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Long Elbow x 1-11/16" -12 ORFS Swivel Short Straight, 1" ID x 26", from Hyd Reservoir to Front Hydro

1шт.

16

BN302577

ELBOW

1 - 11/16 - 12 ORFS x 1 - 5/8 - 12 ORB, Incl 19, 20

2шт.

17

BN302425

ELBOW

Long, 1 - 11/16 - 12 ORFS x 1 - 5/8 - 12 ORB, Incl 19, 20

1шт.

18

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

19

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

3шт.

20

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

3шт.

21

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

22

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

4шт.

23

92-11044

SPRING WASHER,7/16"

4шт.

24

70921117

FLANGE

Code 61 Split Flange

2шт.
