1
84377133
HYDRAULIC HOSE
3/8" -6 ORFS 11/16" -16 Short Swivel x -6 ORFS 11/16" -16 Short Swivel, 11-1/2" Long, Front Pump to Rear Pump
1шт.
2
9993141
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Included with 3
4шт.
3
BN302553
ELBOW
Incl 2, 4
4шт.
4
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
Included with 3
4шт.
5
BN52317
O-RING
Pump
4шт.
6
87544315
MANIFOLD
Block, W/O Cavity
2шт.
7
BN57223
FITTING
1-7/16" -12 ORFS x 1-5/16" -12 ORB, Incl 13, 17
2шт.
8
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
ORB
1шт.
9
47425379
GEAR
Driven, 27T
1шт.
10
47425002
PUMP
Tandem, Complete
1шт.
11
BN302653
FITTING
10 MOR - 10MB
4шт.
12
47430958
HYDRAULIC HOSE
1/4" -6 ORFS 11/16" -16 Short Swivel x -6 ORFS 11/16" -16 Short Swivel, 22-5/8" Long, Manifold Block to Manifold Block
1шт.
13
9824050
O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro
ORFS
2шт.
14
BN302568
ELBOW
1-3/16"-12 ORFS x 1-1/16"-12 ORB, Incl 15, 17
1шт.
15
9991976
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
ORFS
10шт.
16
87529310
WASHER,13.5mm ID x 28mm OD x 4mm Thk
DOR
4шт.
17
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
ORB
2шт.
18
274336
O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro
Housing to Pump
1шт.
19
87265840
ORIFICE
.075 -6 Disc
1шт.
20
BN300304
SOLENOID VALVE
Traction Control
1шт.
21
87267935
COIL
12V DC
1шт.
22
BN300315
SEAL KIT
For 20
1шт.
23
BN302655
FITTING
1-3/16"-12 ORFS x 1-1/16"-12 ORB, Incl 8, 15
1шт.
24
87342892
BOLT
7/16" x 2 -3/4", DOR
16шт.
25
BN57233
FITTING
1-3/16"-12 ORFS x 1-5/16"-12 ORB, Incl 15, 26
8шт.
26
167268
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
ORB
8шт.
27
87342928
BOLT,1/2"-13 x 1-1/2", Gr 8
DOR
4шт.
28
BN60479
PLUG
1-5/16" -12, Incl 26
4шт.
29
87544316
MANIFOLD
Block, with Cavity
2шт.
30
BN21243
PLUG
7/8" -14, Incl 16
1шт.
31
49027
SLOTTED NUT
1шт.
32
10795501
COTTER PIN,M3.2 x 56
1шт.

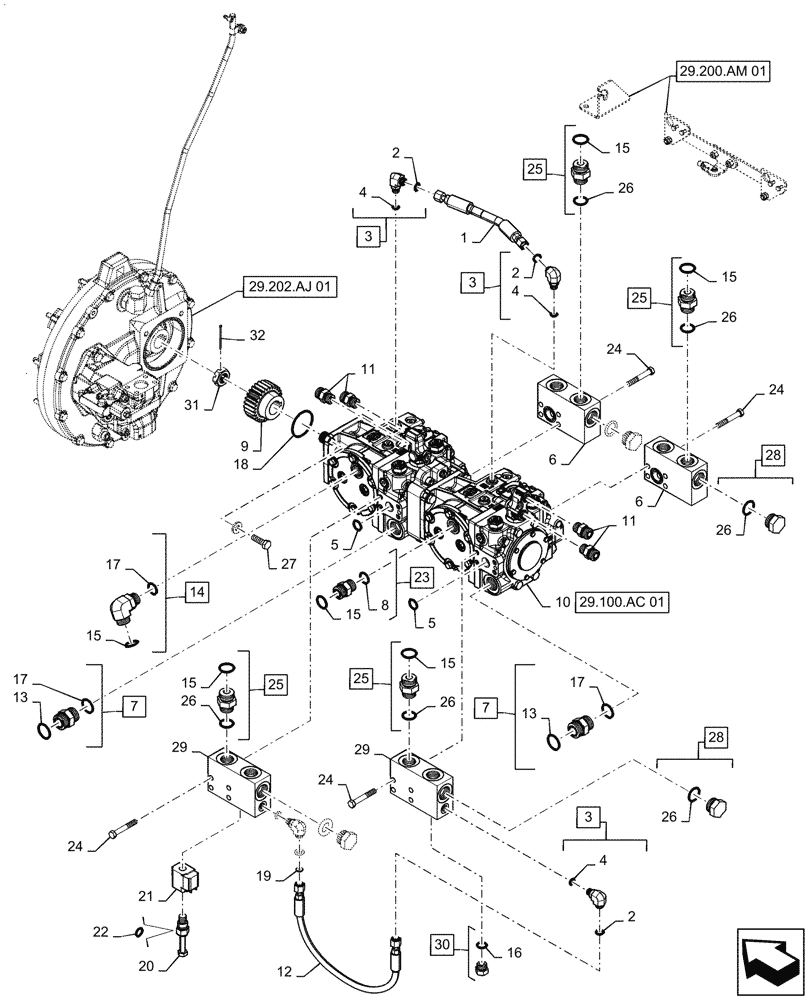

![Схема запчастей Case IH PATRIOT 2250 - (29.218.AO[01]) - HYDROSTATIC PUMP, AND FITTINGS (29) - HYDROSTATIC DRIVE](https://partsell.ru/storage/images/caseih/5350458.png)
