(29.218.AH[01]) - FRONT WHEEL, DRIVE MOTORS, AND FITTINGS

Запчасти Case IH PATRIOT 2250 (29.218.AH[01]) - FRONT WHEEL, DRIVE MOTORS, AND FITTINGS (29) - HYDROSTATIC DRIVE

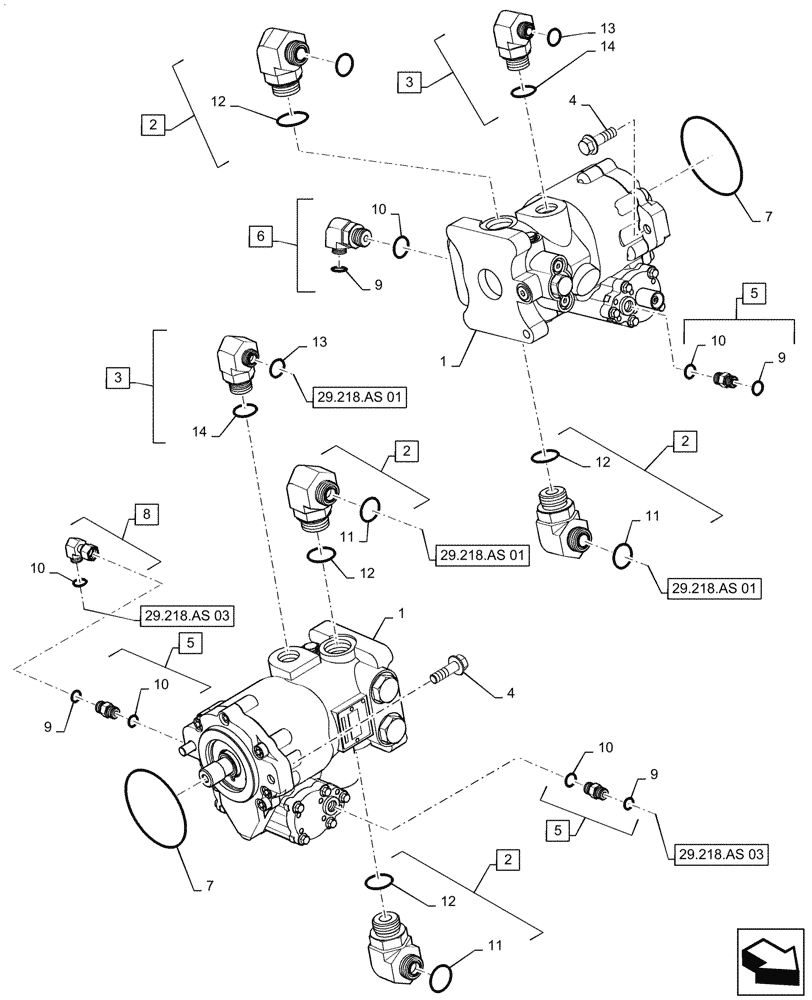

Схема запчастей Case IH PATRIOT 2250 - (29.218.AH[01]) - FRONT WHEEL, DRIVE MOTORS, AND FITTINGS (29) - HYDROSTATIC DRIVE
29.218.as 01
13
10
10
1
14
2
11
5
2
12
7
1
5
4
3
2
4
8
5
10
14
9
2
12
7
12
9
11
9
6
3
13
9
11
10
12
10
29.218.as 03
29.218.as 03
29.218.as 01
29.218.as 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47438784

HYDRAULIC MOTOR

Front Wheel Motor

2шт.

2

BN302570

ELBOW

-12 ORFS x 1-5/16-12 ORB, Incl 11,12

4шт.

3

BN302560

FITTING

Elbow, -8 ORFS x 1 1/16 -12 ORB, 90°, Incl 13, 14

2шт.

4

87695413

BOLT,M12 x 51.8mm, Cl 10.9

4шт.

5

BN302641

FITTING

9/16 -18 ORFS x 9/16 -18 ORB, Incl 9, 10

3шт.

6

BN302549

ELBOW

Union Swivel, 9/16 -18 ORFS x 9/16 -18 ORB, Incl 9,10

1шт.

7

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

Motor

2шт.

8

84263248

ELBOW UNION

9/16 -18 ORFS Female Swivel x 9/16 -18 ORFS, Incl 10

1шт.

9

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Included with 5

3шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Included with 5, 6, 8

5шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Included with 2

4шт.

12

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Included with 2

4шт.

13

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Included with 3

2шт.

14

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Included with 3

2шт.
